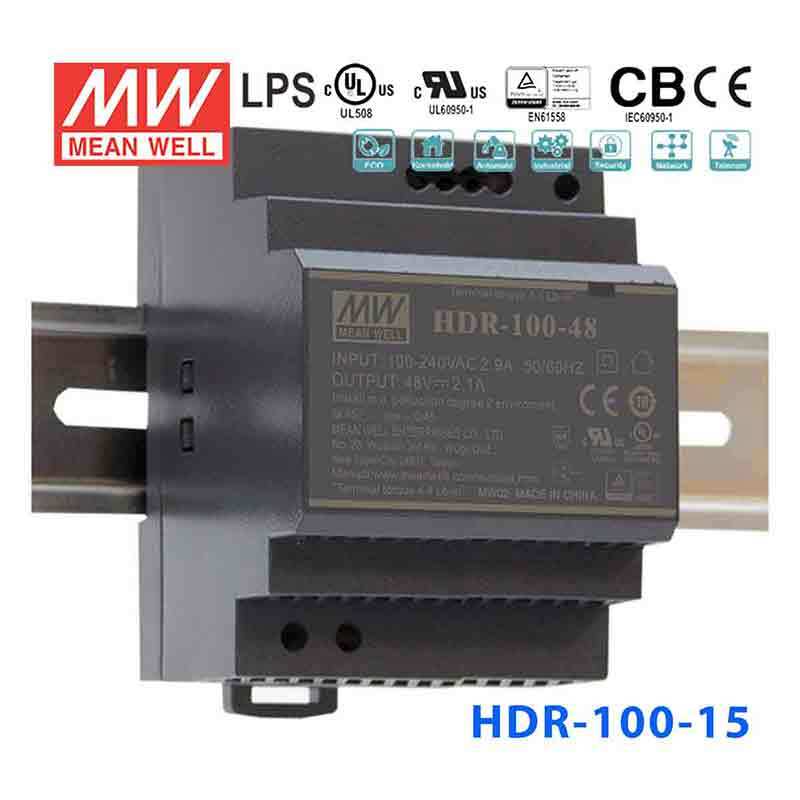

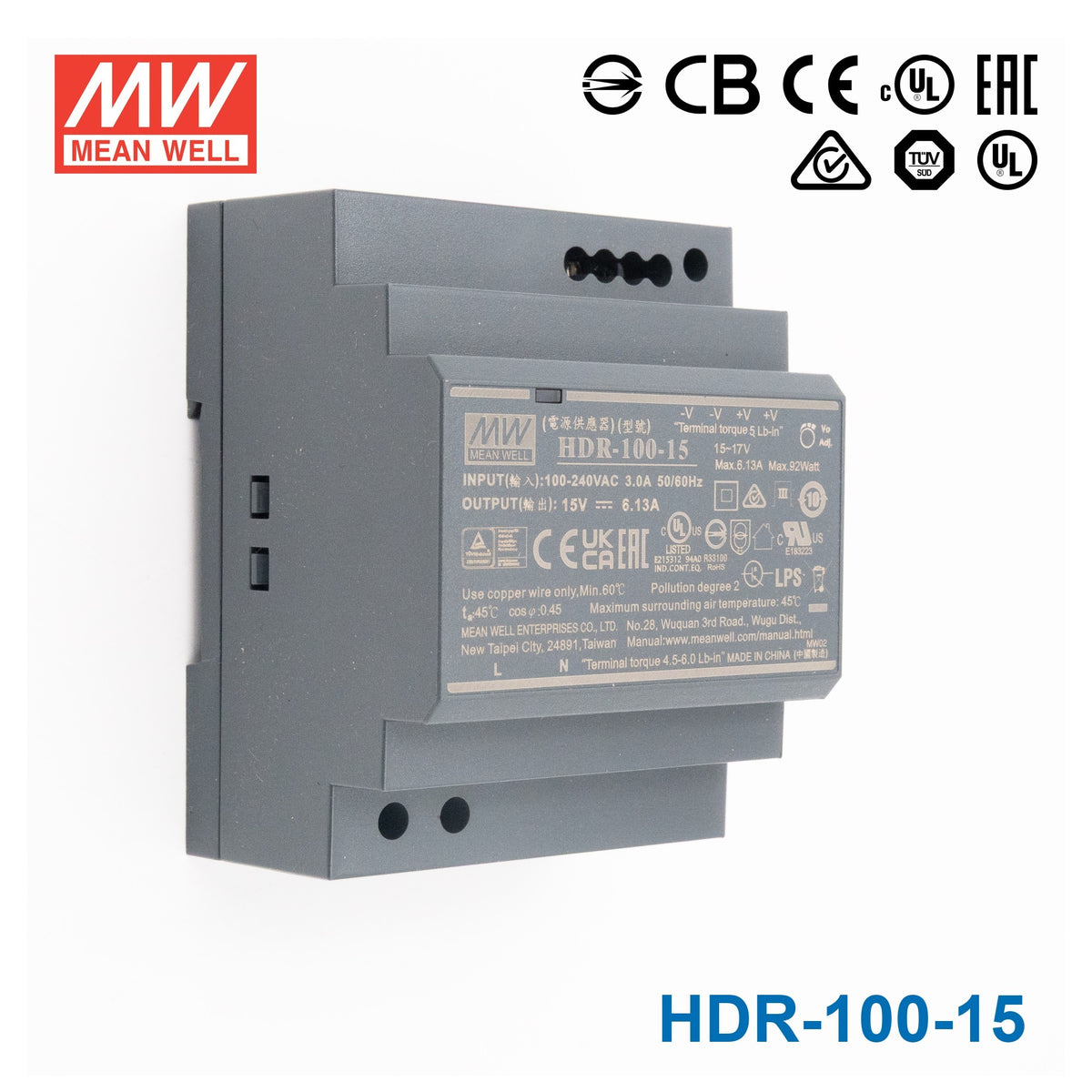

Mean Well HDR-100-15 Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-100-15 Ultra Slim Step Shape Power Supply 100W 15V - ...
The HDR-100 is a 100W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating92 Watt
-
Output Voltage15 Volt
-
Rated Current6.13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.76 in
-
Height2.15 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
Is the HDR-100-15 a good match for 15V industrial control applications?
The HDR-100-15 provides 92W at 6.13A on a 15V bus, which fits legacy industrial control panels, some actuator drivers, and specialty sensors that require a 15V rail. It mounts directly on a standard DIN rail via its step-shape form factor.
How does the HDR-100-15 compare to the HDR-100-15N in the same series?
The HDR-100-15 is rated 92W / 6.13A while the HDR-100-15N is rated 97.5W / 6.5A. Both share the same 90.0 × 70.0 × 54.5 mm body, identical certifications (BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, UL), and 3-year warranty — the N variant offers roughly 6% more output current.
What is the weight and physical size of the HDR-100-15?
The HDR-100-15 measures 90.0 × 70.0 × 54.5 mm and weighs 0.27 kg. The slim step-shape profile minimizes the DIN rail width consumed in panel layouts.
Can the HDR-100-15 be used across a wide temperature range inside enclosures?
Yes, it is rated for -30°C to +70°C operation. This range accommodates unheated outdoor control cabinets in winter climates as well as warm machine enclosures in production environments.
