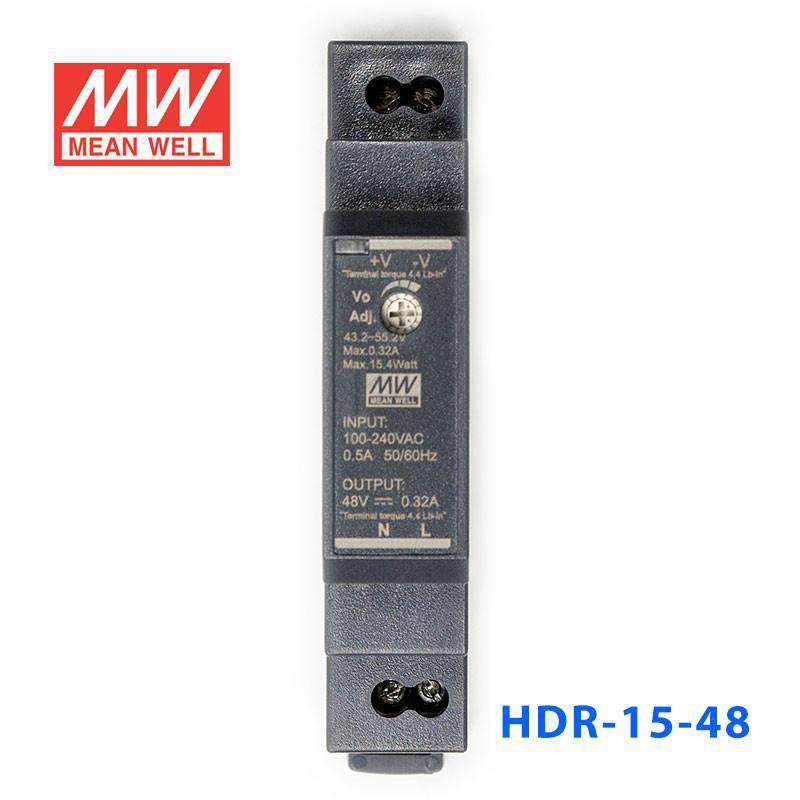

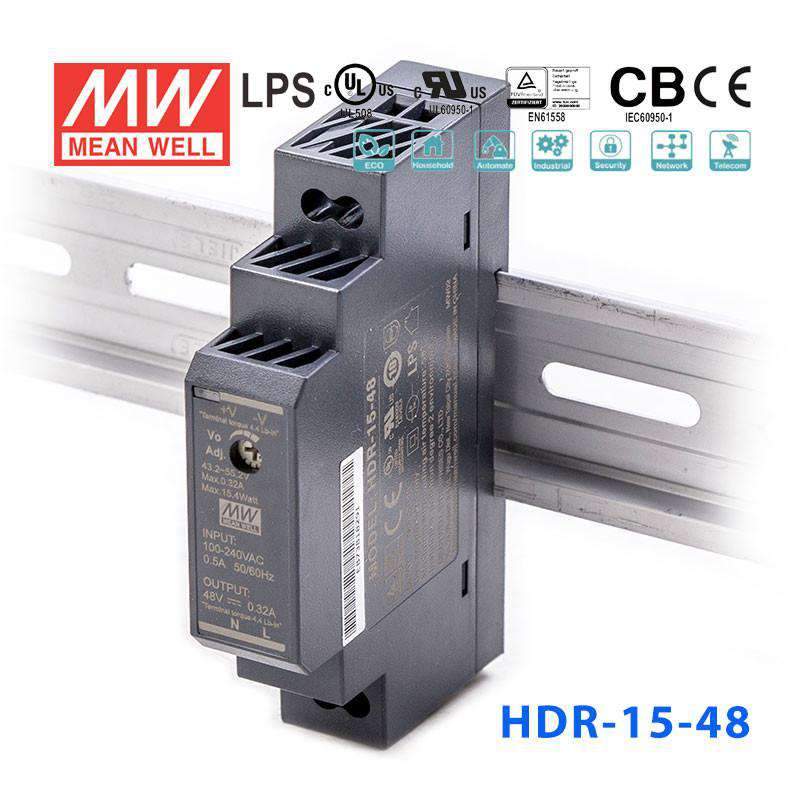

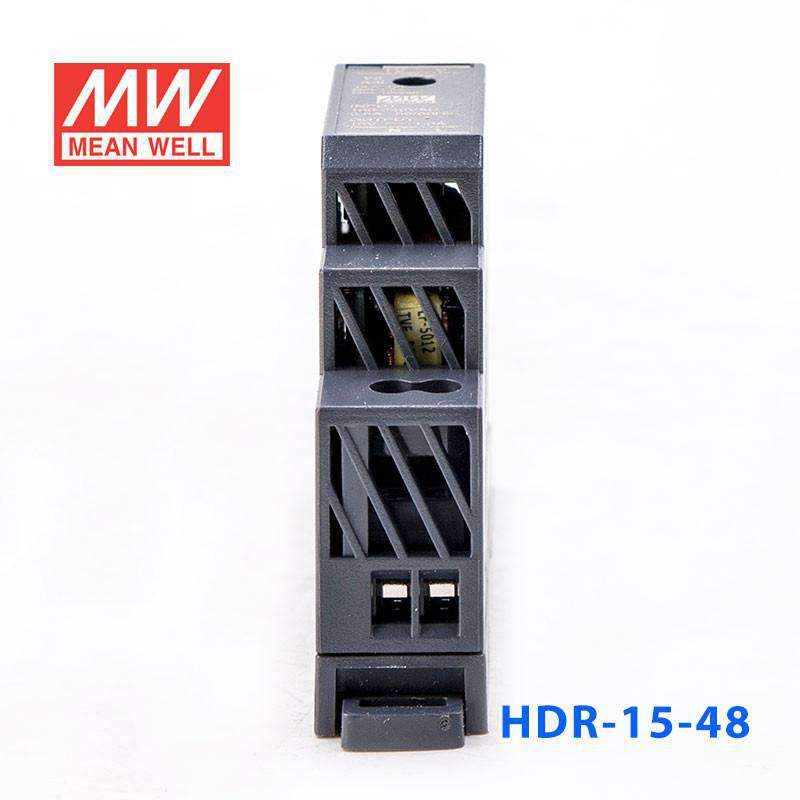

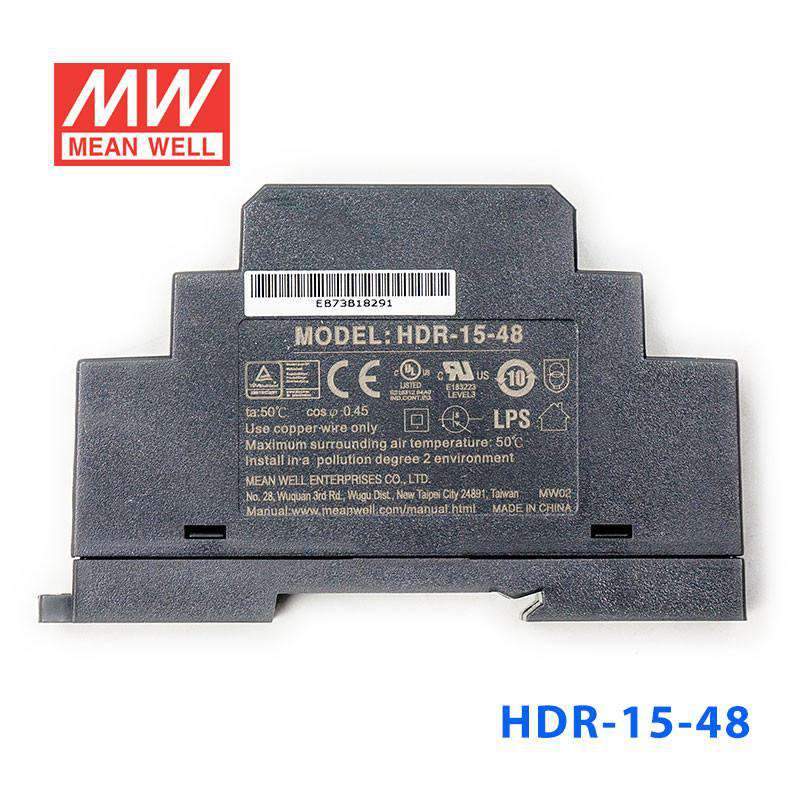

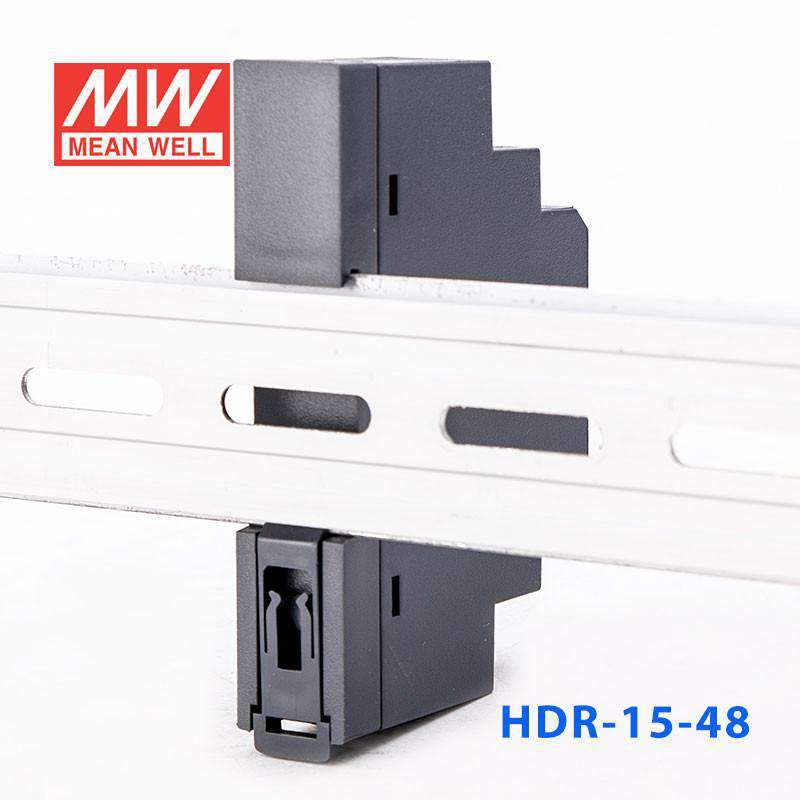

Mean Well HDR-15-48 Ultra Slim Step Shape Power Supply 15W 48V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-15-48 Ultra Slim Step Shape Power Supply 15W 48V - DI...
The HDR-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15.4 Watt
-
Output Voltage48 Volt
-
Rated Current0.32 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height0.69 in
-
Weight0.16 lb
::specification::
Frequently Asked Questions
What 48V low-power applications is the HDR-15-48 suited for?
The HDR-15-48 outputs 15.4W at 0.32A on a 48V bus, sized for very low-power 48V loads such as small telecom auxiliary circuits, isolated fieldbus interfaces, or single-device panel power in DIN rail enclosures. Its 17.5 mm depth is the narrowest profile in the HDR-15 group.
How does the HDR-15-48 compare to the HDR-100-48 and HDR-150-48 in the 48V lineup?
The HDR-15-48 is 15.4W / 0.32A. The HDR-100-48 steps up to 92.2W / 1.92A and the HDR-100-48N to 100.8W / 2.1A. The HDR-150-48 reaches 130.6W / 2.72A. The HDR-15-48 uses a 90.0 × 54.5 × 17.5 mm body, while the 100 and 150 series use deeper 54.5 mm or 54.5 mm depth housings.
What certifications does the HDR-15-48 hold?
The HDR-15-48 carries BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications and comes with a 3-year warranty. Its isolation class II design does not require a protective earth connection on the secondary side.
Can the HDR-15-48 be used in cold-environment control cabinets?
Yes, the HDR-15-48 is rated down to -30°C, making it suitable for unheated enclosures in cold climates. The upper limit is +70°C, covering most indoor industrial cabinet environments.
