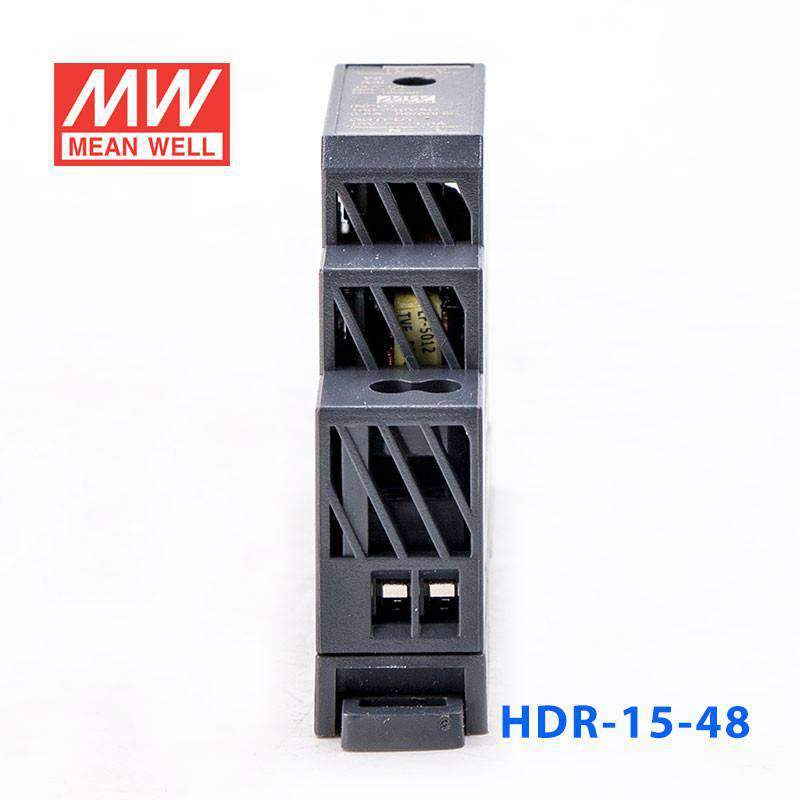

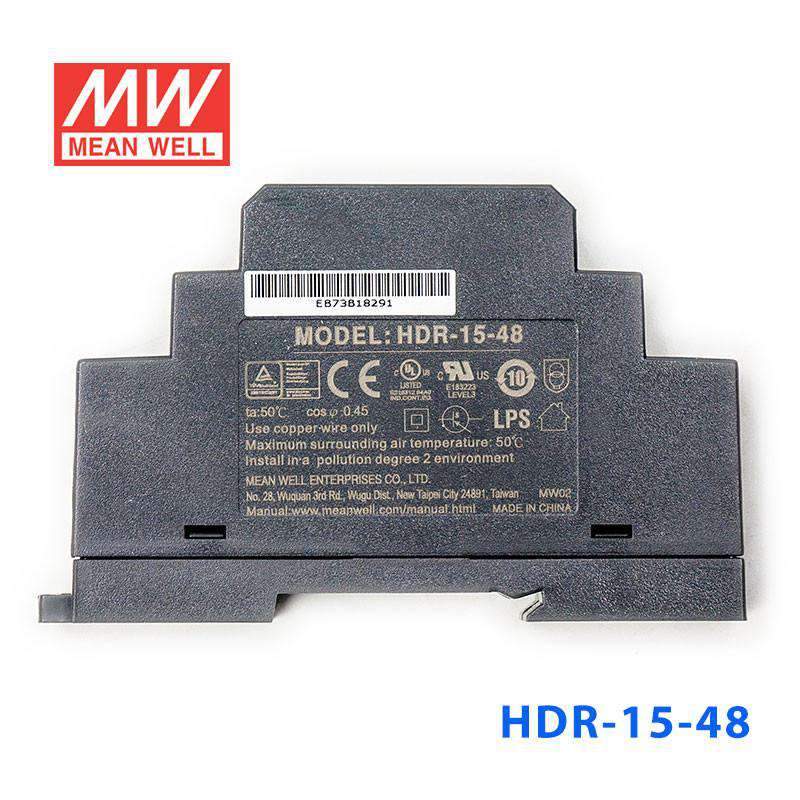

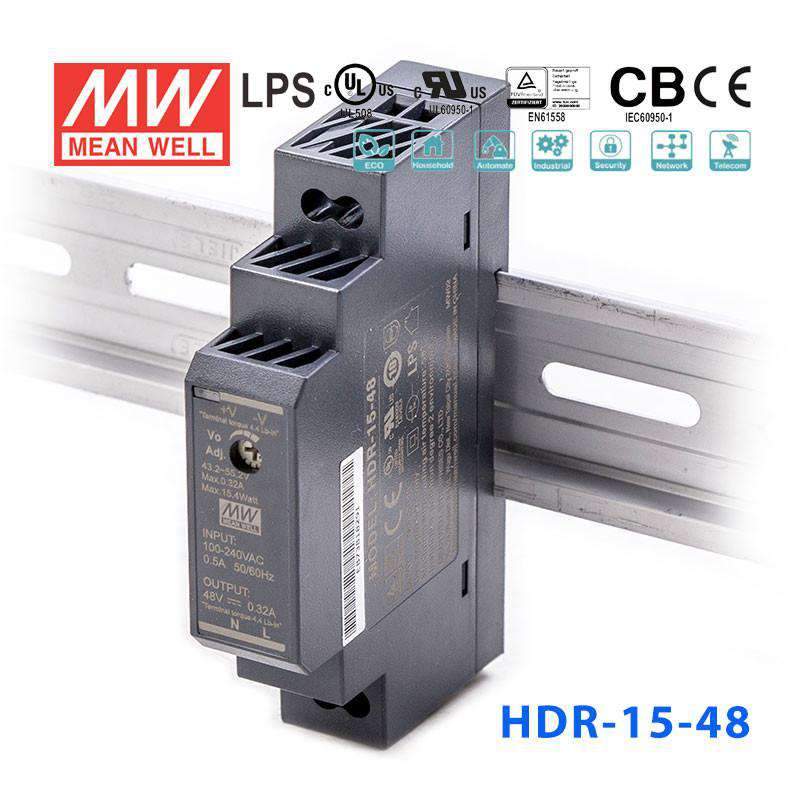

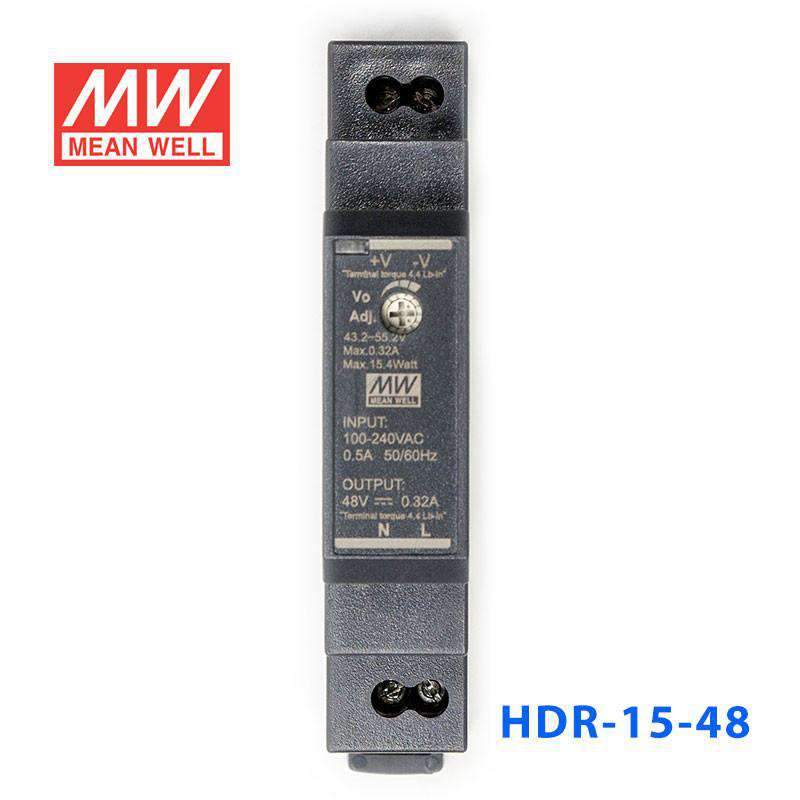

Mean Well HDR-15-48 Ultra Slim Step Shape Power Supply 15W 48V - DIN Rail
step size, isolation class II, DC output adjustable, no load power consumption
SKU:
HDR-15-48
$15.22 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-15-48 Ultra Slim Step Shape Power Supply 15W 48V - DI...
$15.22 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |

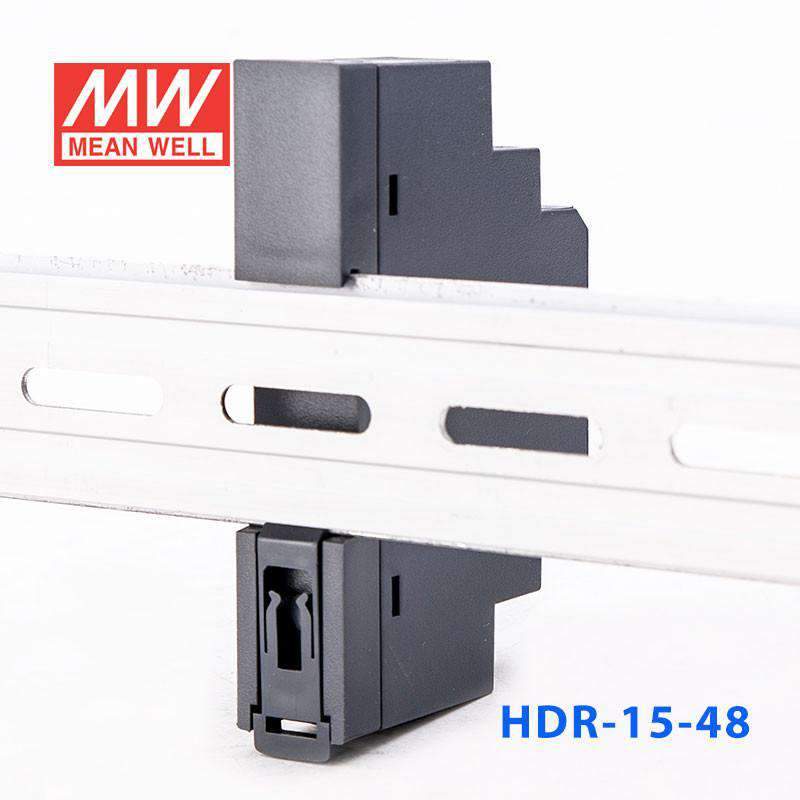

| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.3W |
| Ultra slim design with 17.5mm(1SU) width |
| Isolation class II |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start 25A at 115VAC, 45A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 110%~145% constant current limiting, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 2000ms, 80ms, 30ms |
| Withstand voltage | I/P-O/P:4kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL508, UL,IEC 62368-1, EN61588-1,2-16 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 2 poles, O/P: 2 poles screw DIN terminal |
| Dimension (LxWxH) | 17.5x90x54.5 |
| Packing | 160pcs / 13.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15.4 Watt
-
Output Voltage48 Volt
-
Rated Current0.32 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height0.69 in
-
Weight0.17 lb
