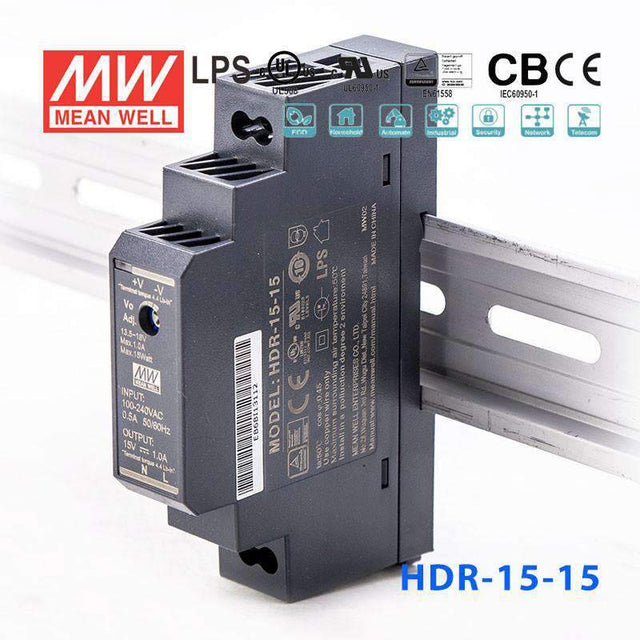

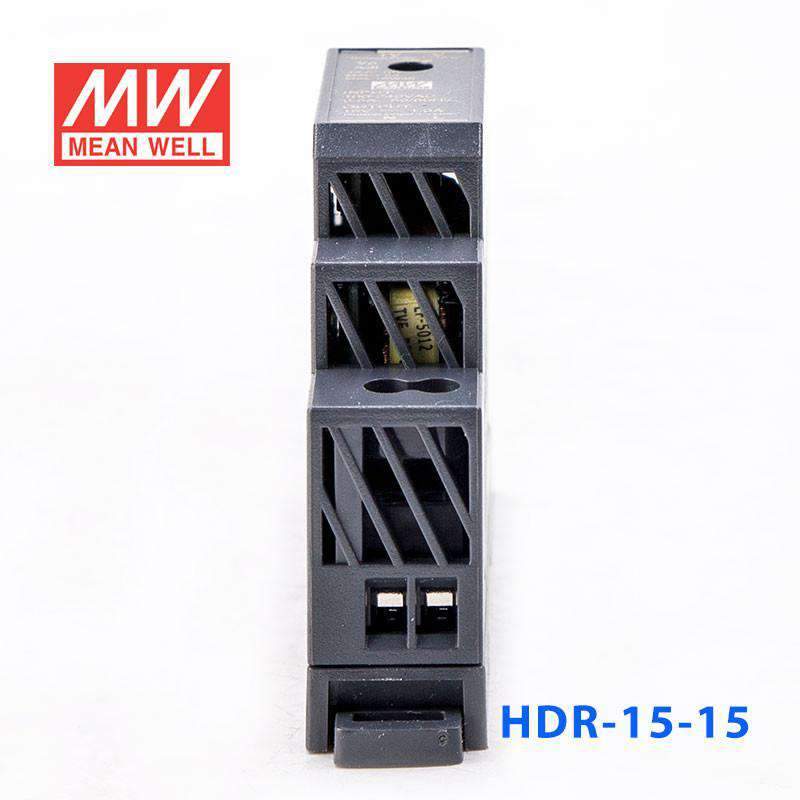

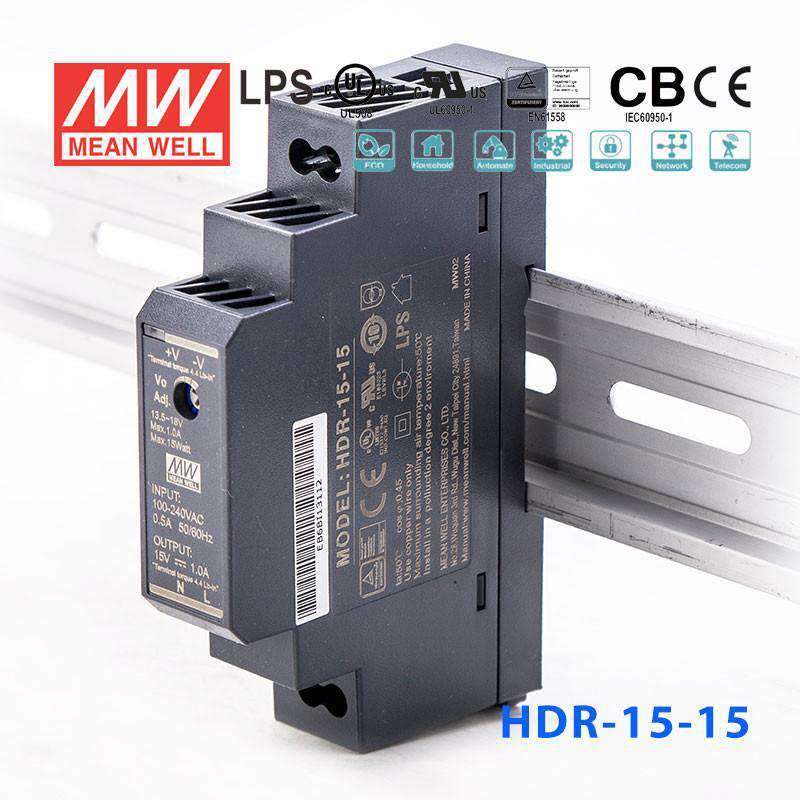

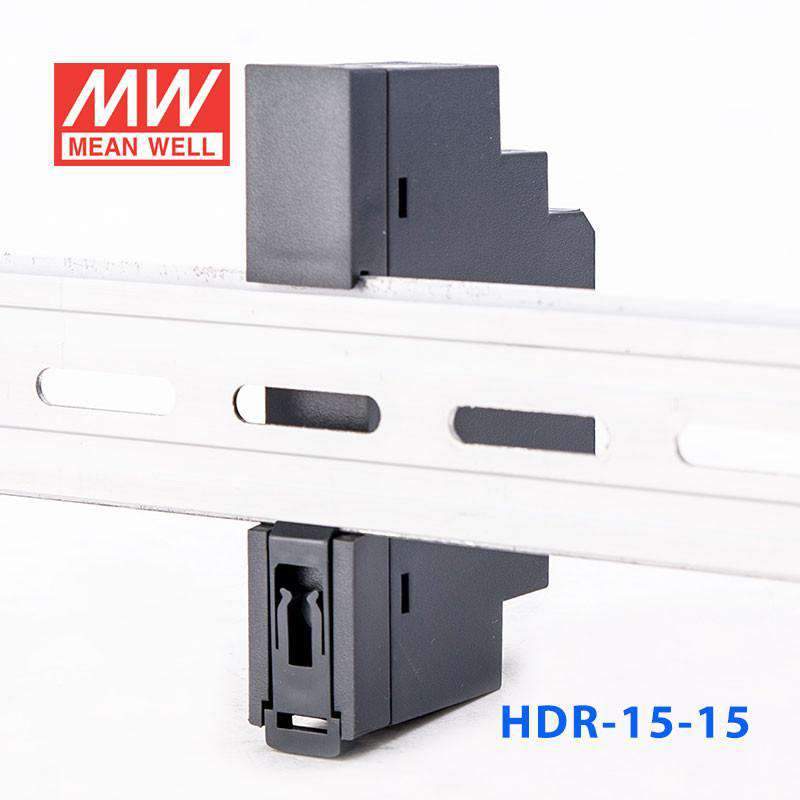

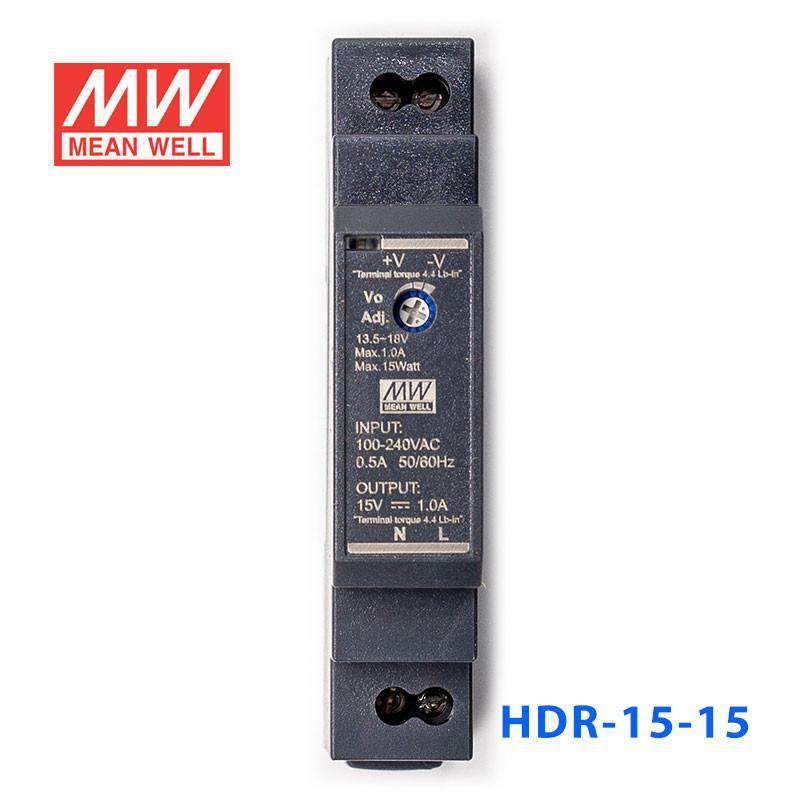

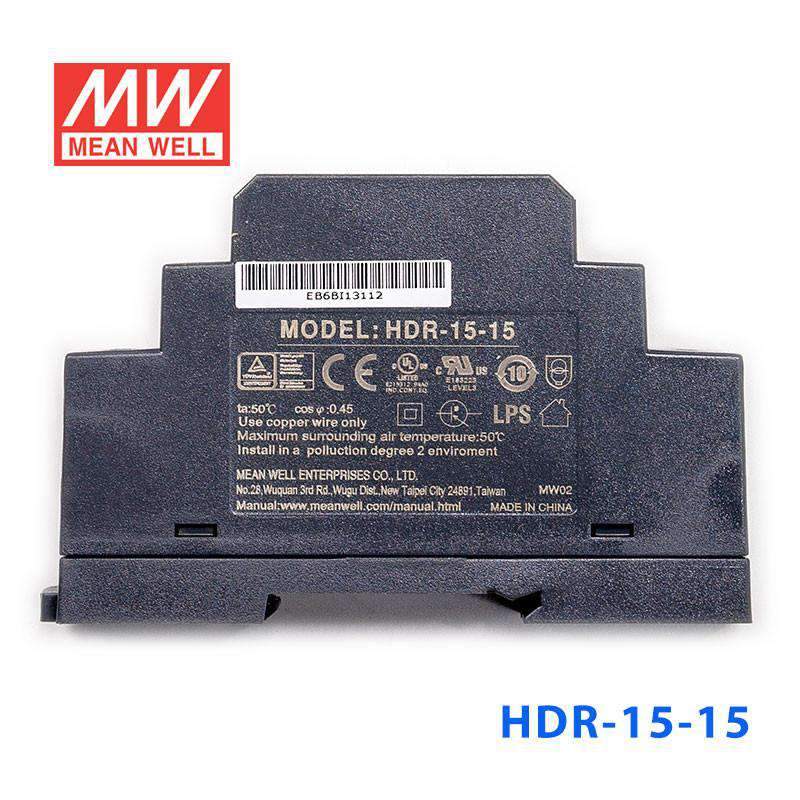

Mean Well HDR-15-15 Ultra Slim Step Shape Power Supply 15W 15V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-15-15 Ultra Slim Step Shape Power Supply 15W 15V - DI...
The HDR-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height0.69 in
-
Weight0.16 lb
::specification::
Frequently Asked Questions
What control panel applications are appropriate for the HDR-15-15?
The HDR-15-15 delivers 15W at 1A on a 15V output, suitable for powering low-current signal converters, isolated analog interfaces, and compact 15V sensor circuits inside DIN rail control enclosures. Its 17.5 mm slim depth minimizes rail footprint.
How does the HDR-15-15 compare to the HDR-15-12 and HDR-15-24?
All three share the same 90.0 × 54.5 × 17.5 mm housing and 0.074 kg weight. The HDR-15-12 outputs 15W / 1.25A at 12V; the HDR-15-15 outputs 15W / 1A at 15V; the HDR-15-24 outputs 15.2W / 0.63A at 24V. Output voltage is the sole differentiator within this sub-group.
What is the operating temperature range for the HDR-15-15?
The HDR-15-15 is rated -30°C to +70°C. This covers use inside unheated cabinets in winter environments as well as warm machine enclosures in production facilities.
Does the HDR-15-15 carry UL and CE certifications?
Yes, the HDR-15-15 holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications, providing broad compliance coverage for North American and European installations. The 3-year warranty applies.
