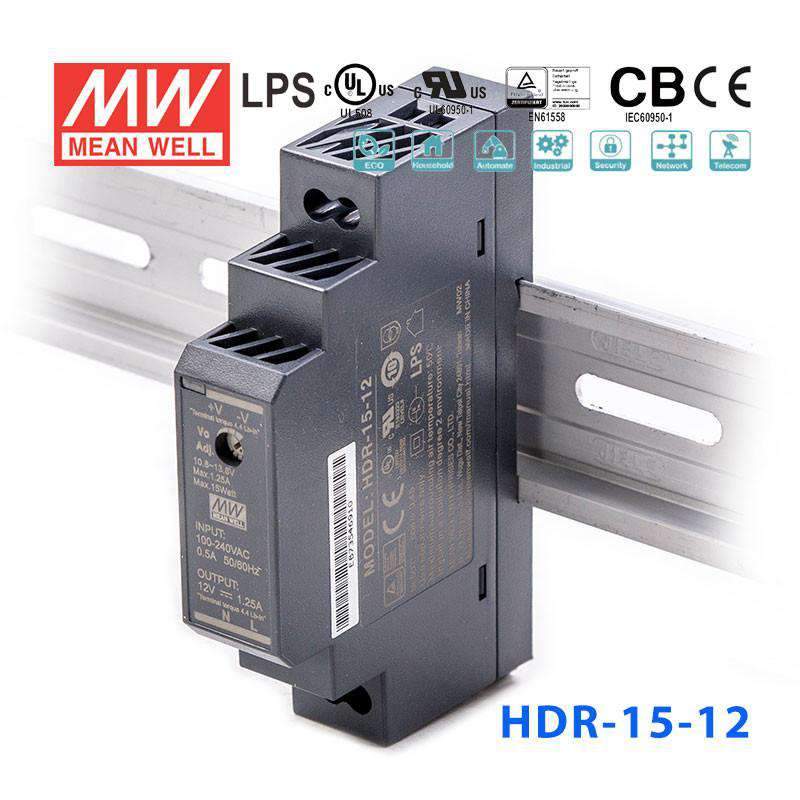

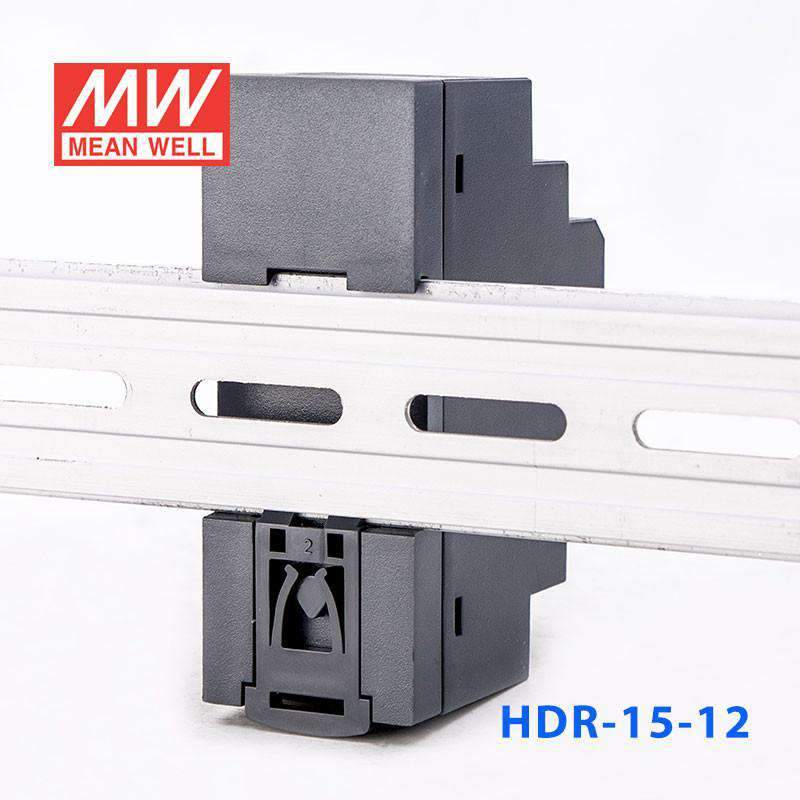

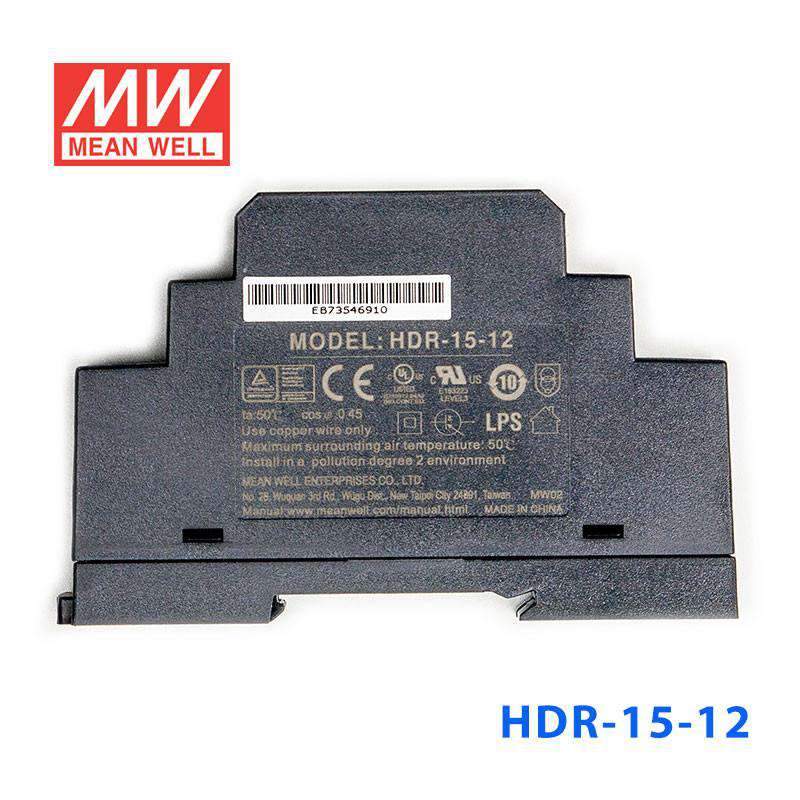

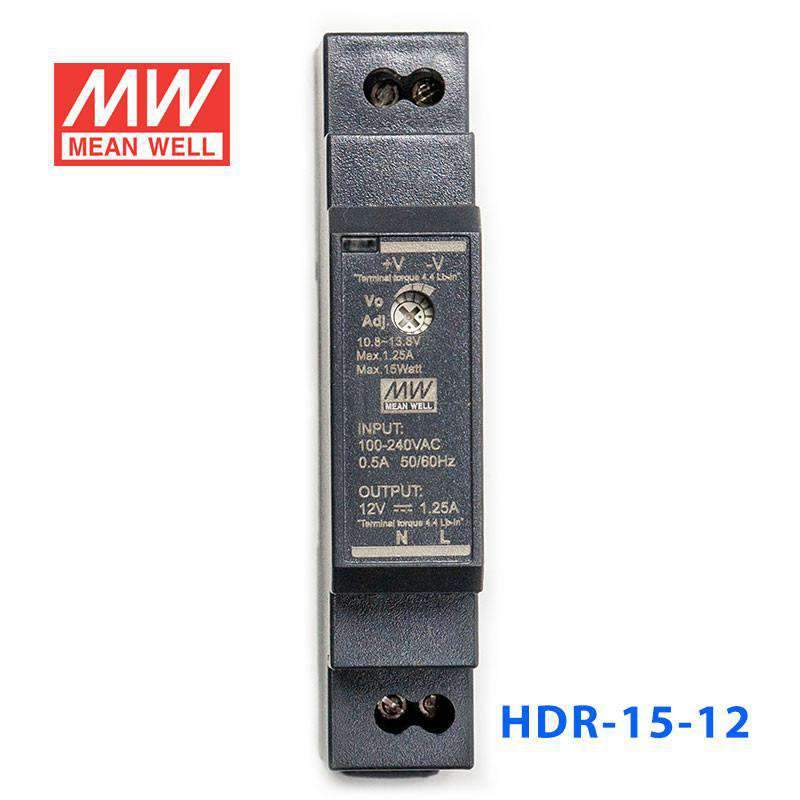

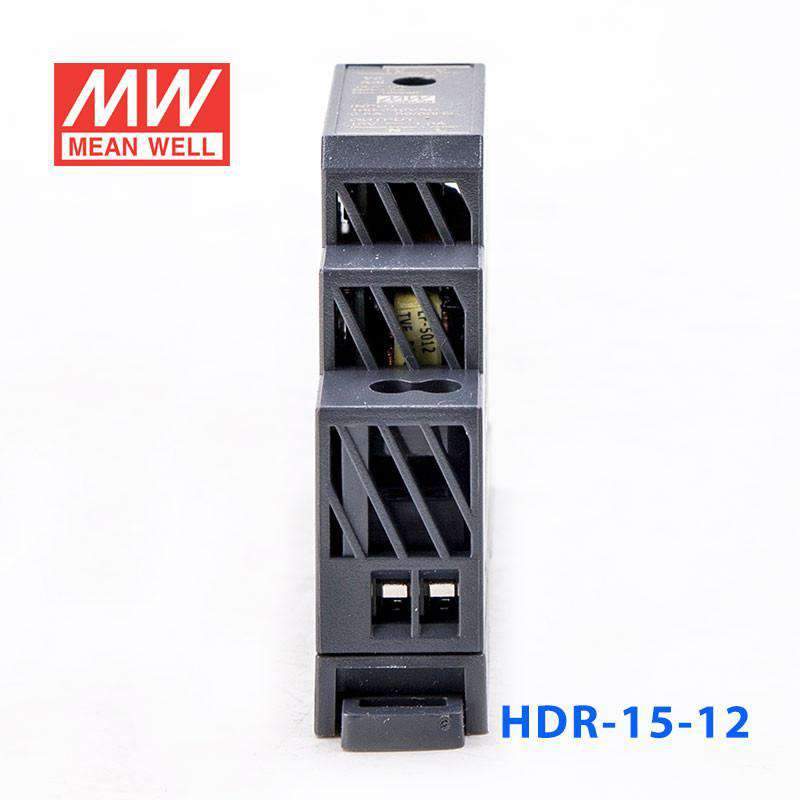

Mean Well HDR-15-12 Ultra Slim Step Shape Power Supply 15W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-15-12 Ultra Slim Step Shape Power Supply 15W 12V - DI...
The HDR-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height0.69 in
-
Weight0.16 lb
::specification::
Frequently Asked Questions
What small 12V loads is the HDR-15-12 suited for in control panels?
At 15W and 1.25A on a 12V output, the HDR-15-12 is sized for low-power loads such as signal relays, indicator lights, and small logic controllers in DIN rail panels. Its ultra-slim 17.5 mm depth (90.0 × 54.5 × 17.5 mm) is one of the narrowest profiles in the HDR series.
How does the HDR-15-12 compare to other HDR 12V models at higher wattages?
The HDR-15-12 outputs 15W / 1.25A. Stepping up: HDR-30-12 is 24W / 2A, HDR-60-12 is 54W / 4.5A, HDR-100-12 is 82.5W / 7.1A, HDR-100-12N is 90W / 7.5A, and HDR-150-12 is 122.4W / 10.2A. The HDR-15-12 has the smallest footprint (17.5 mm depth) in the 12V group.
Can the HDR-15-12 operate in cold storage or refrigerated panel environments?
The HDR-15-12 is rated -30°C to +70°C, so it handles cold environments down to -30°C without derating. It must be installed inside an enclosure since it carries no standalone IP rating.
What is the standby power consumption of the HDR-15-12?
No-load power consumption is less than 0.3W. At only 0.074 kg, it is also the lightest model in the HDR series, which simplifies mounting on lightly-loaded rail sections.
