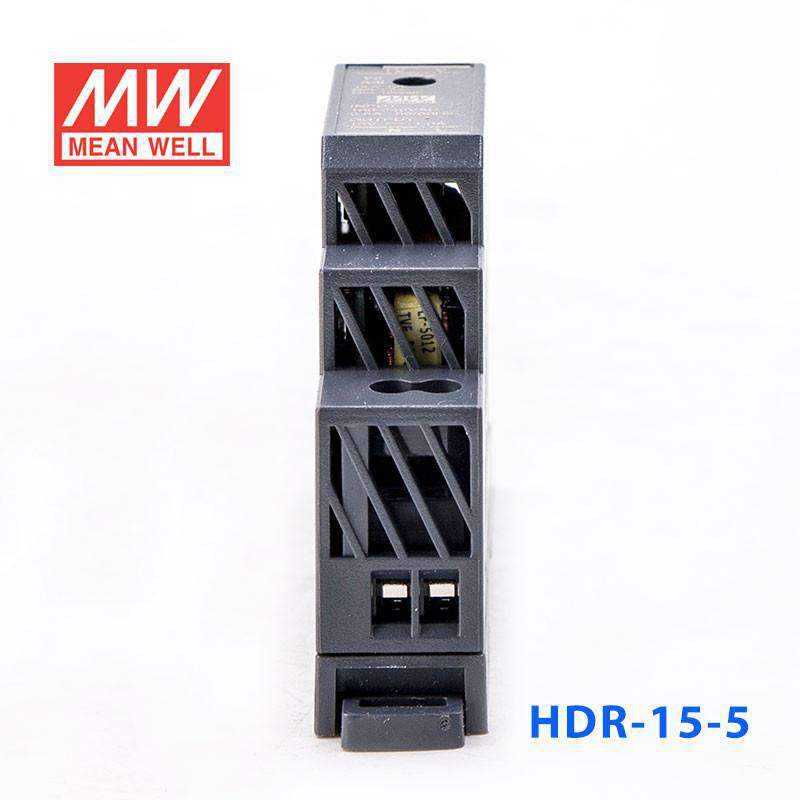

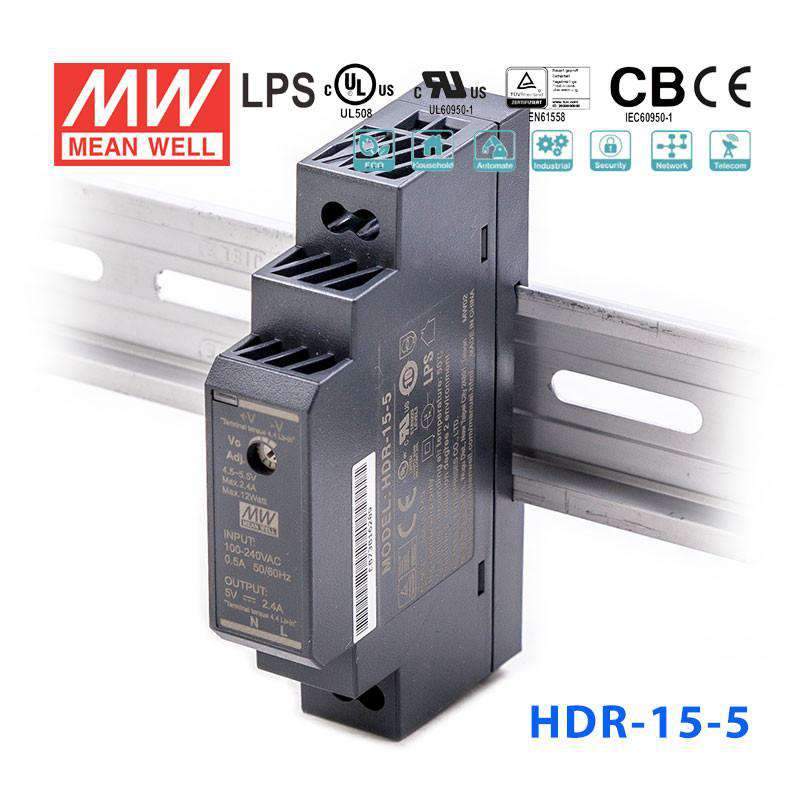

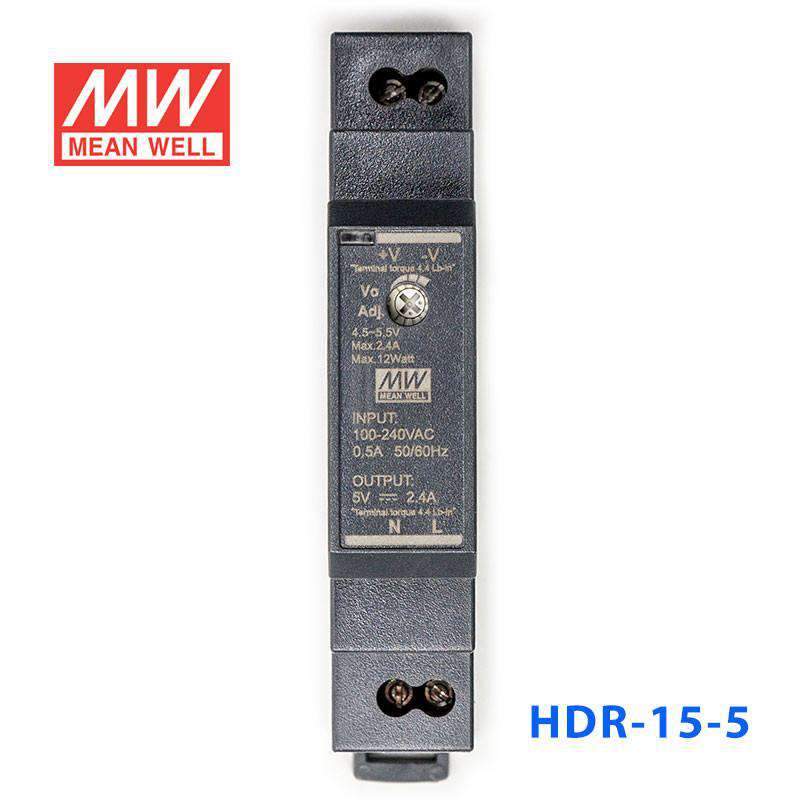

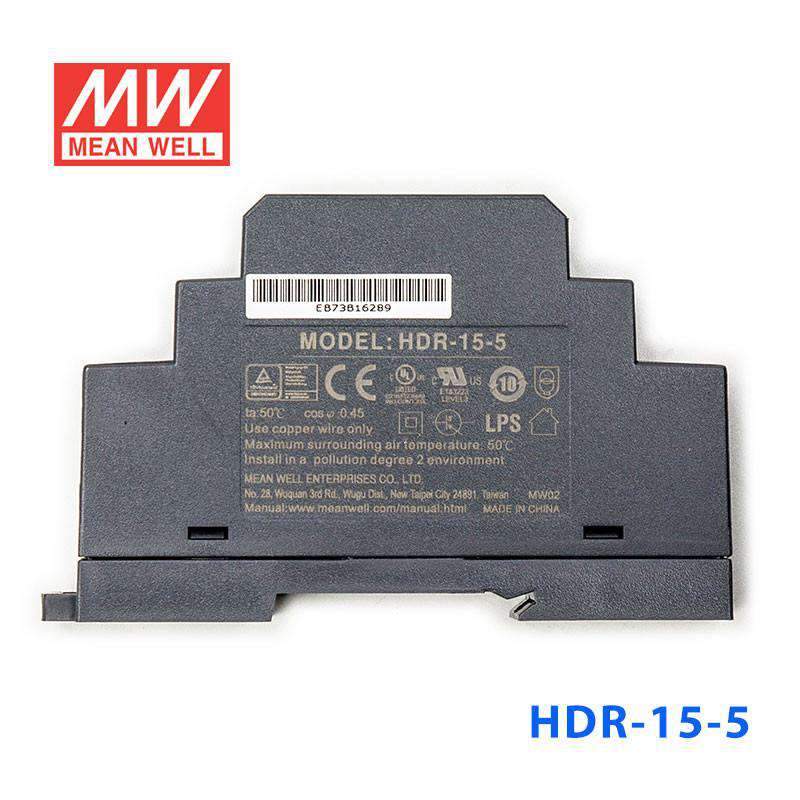

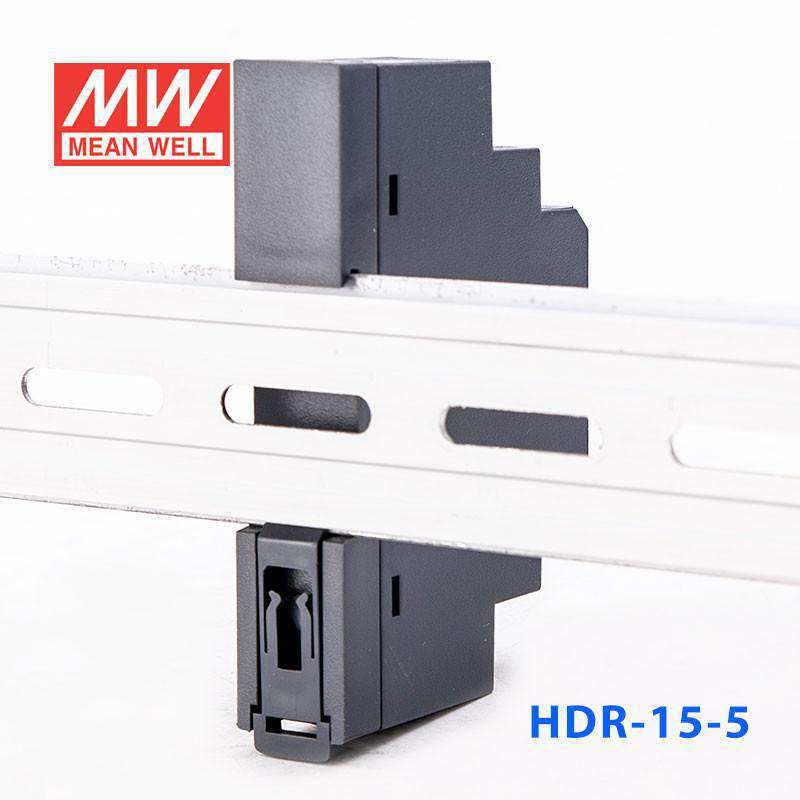

Mean Well HDR-15-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-15-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN ...
The HDR-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current2.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height0.69 in
-
Weight0.16 lb
::specification::
Frequently Asked Questions
What 5V low-power loads can the HDR-15-5 support in a DIN rail panel?
The HDR-15-5 outputs 12W at 2.4A on a 5VDC bus, suitable for powering microcontroller boards, communication adapters, and logic-level circuit boards in DIN rail control enclosures. Its 17.5 mm slim depth fits tightly spaced rail layouts.
How does the HDR-15-5 compare to the HDR-30-5 and HDR-60-5 in the 5V lineup?
The HDR-15-5 outputs 12W / 2.4A. The HDR-30-5 steps up to 15W / 3A, and the HDR-60-5 reaches 32.5W / 6.5A. No 5V option exists in the HDR-100 or HDR-150 series, making the HDR-60-5 the top of the 5V range.
What is the physical size and weight of the HDR-15-5?
The HDR-15-5 measures 90.0 × 54.5 × 17.5 mm and weighs 0.074 kg. This is the lightest and slimmest option in the 5V HDR lineup, designed for space-constrained DIN rail sections.
What is the operating temperature range for the HDR-15-5?
The HDR-15-5 operates from -30°C to +70°C. No-load power consumption is less than 0.3W, minimizing heat generation in small enclosures where thermal management is critical.
