Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

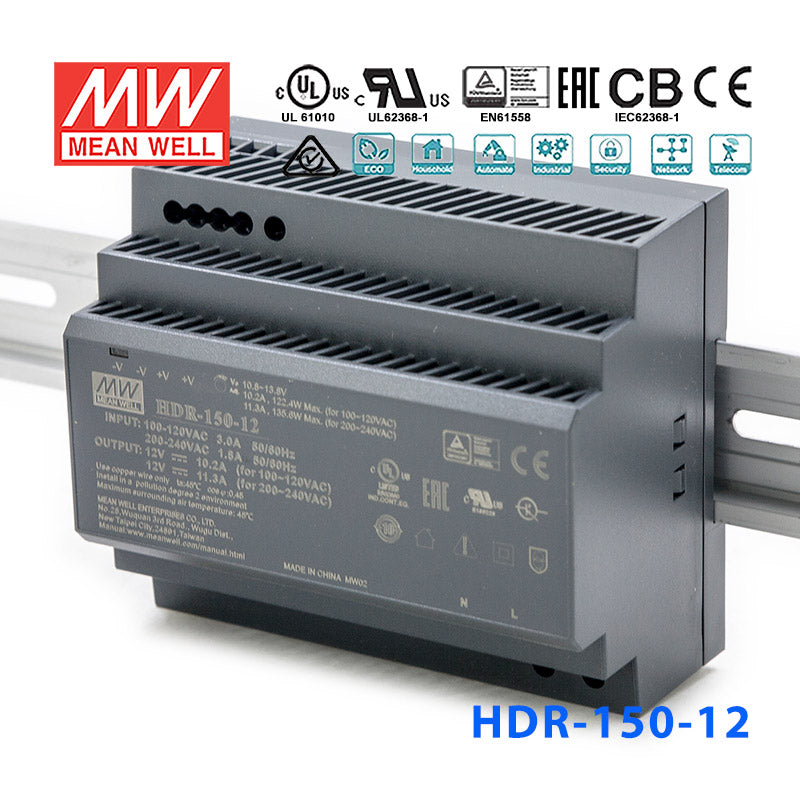

Mean Well HDR-150-12 Ultra Slim Step Shape Power Supply 150W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-150-12 Ultra Slim Step Shape Power Supply 150W 12V - ...
The HDR-150 is a 150W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating122.4 Watt
-
Output Voltage12 Volt
-
Rated Current10.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.13 in
-
Width3.54 in
-
Height2.15 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What 12V industrial applications is the HDR-150-12 suited for?
At 122.4W and 10.2A on a 12VDC bus, the HDR-150-12 can power larger 12V control panel loads such as multi-axis PLC I/O racks, industrial communication gateways, and 12V motor control auxiliary circuits. It mounts on standard DIN rail in a 105.0 × 90.0 × 54.5 mm step-shape body.
How does the HDR-150-12 compare to the HDR-100-12 and HDR-100-12N in the 12V group?
The HDR-150-12 is the highest-power 12V option at 122.4W / 10.2A. The HDR-100-12N delivers 90W / 7.5A and the HDR-100-12 delivers 82.5W / 7.1A in a smaller 90.0 × 70.0 × 54.5 mm body. The HDR-150-12 uses a larger 105.0 × 90.0 × 54.5 mm chassis and weighs 0.31 kg.
What certifications does the HDR-150-12 carry?
The HDR-150-12 holds CB, CE, cUL, EAC, TÜV, and UL certifications. Note that BSMI and c-RCM are not listed for the HDR-150 series, unlike the HDR-100 and HDR-15 variants. The 3-year warranty applies.
Can the HDR-150-12 handle the thermal demands of a busy industrial enclosure?
The HDR-150-12 is rated -30°C to +70°C. It must be installed inside a suitable control cabinet or enclosure since it does not carry an IP rating of its own. Its no-load consumption is under 0.3W.
