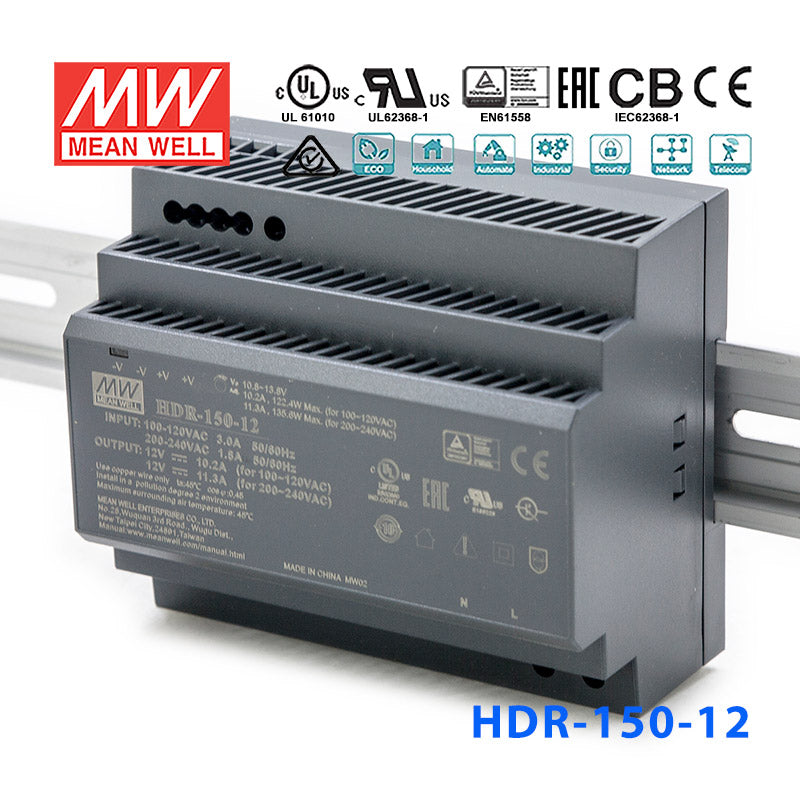

Mean Well HDR-150-12 Ultra Slim Step Shape Power Supply 150W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-150-12 Ultra Slim Step Shape Power Supply 150W 12V - ...
Description
Description
Features
| Universal AC input / Full range |
| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.3W |
| Ultra slim design with 105mm(6SU) width |
| Isolation class II |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start 35A at 115VAC, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 110%~145% constant current limiting, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 500ms, 60ms, 30ms |
| Withstand voltage | I/P-O/P:4kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL508, UL,IEC 62368-1, EN61588-1,2-16 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 2 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 105x90x54.5 |
| Packing | 32pcs / 11kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating122.4 Watt
-
Output Voltage12 Volt
-
Rated Current10.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.13 in
-
Width3.54 in
-
Height2.15 in
-
Weight0.68 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 12V industrial applications is the HDR-150-12 suited for?
At 122.4W and 10.2A on a 12VDC bus, the HDR-150-12 can power larger 12V control panel loads such as multi-axis PLC I/O racks, industrial communication gateways, and 12V motor control auxiliary circuits. It mounts on standard DIN rail in a 105.0 × 90.0 × 54.5 mm step-shape body.
How does the HDR-150-12 compare to the HDR-100-12 and HDR-100-12N in the 12V group?
The HDR-150-12 is the highest-power 12V option at 122.4W / 10.2A. The HDR-100-12N delivers 90W / 7.5A and the HDR-100-12 delivers 82.5W / 7.1A in a smaller 90.0 × 70.0 × 54.5 mm body. The HDR-150-12 uses a larger 105.0 × 90.0 × 54.5 mm chassis and weighs 0.31 kg.
What certifications does the HDR-150-12 carry?
The HDR-150-12 holds CB, CE, cUL, EAC, TÜV, and UL certifications. Note that BSMI and c-RCM are not listed for the HDR-150 series, unlike the HDR-100 and HDR-15 variants. The 3-year warranty applies.
Can the HDR-150-12 handle the thermal demands of a busy industrial enclosure?
The HDR-150-12 is rated -30°C to +70°C. It must be installed inside a suitable control cabinet or enclosure since it does not carry an IP rating of its own. Its no-load consumption is under 0.3W.
Other HDR-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-150-48 Ultra Slim Step Shape Power Supply 150W 48V - DIN Rail | 130.6W | 48V | 2.72A | Indoor | $41.83 | View |
| Mean Well HDR-150-24 Ultra Slim Step Shape Power Supply 150W 24V - DIN Rail | 127.4W | 24V | 5.31A | Indoor | $39.62 | View |
| Mean Well HDR-150-15 Ultra Slim Step Shape Power Supply 150W 15V - DIN Rail | 128.3W | 15V | 8.55A | Indoor | $41.83 | View |
