Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

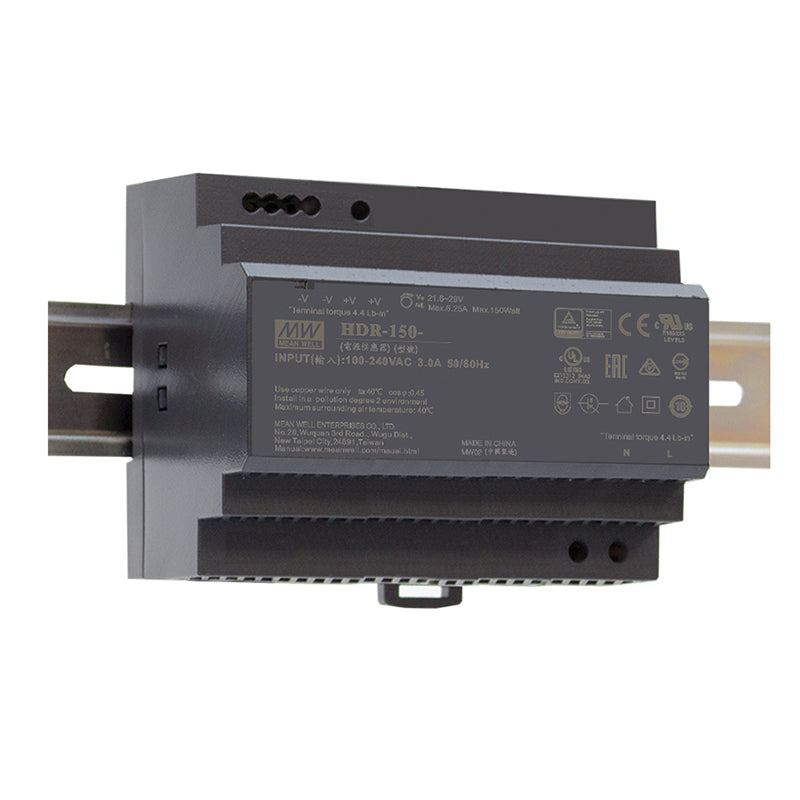

Mean Well HDR-150-48 Ultra Slim Step Shape Power Supply 150W 48V - DIN Rail

Q: What 48V loads can the HDR-150-48 power in a DIN rail enclosure?

At 130.6W and 2.72A on a 48VDC bus, the HDR-150-48 suits higher-current 48V loads such as industrial PoE switches, telecom bus supplies, and 48V fieldbus power nodes in DIN rail panels. It is the highest-power 48V model in the HDR series.

Q: How does the HDR-150-48 compare to the HDR-100-48 and HDR-100-48N?

The HDR-150-48 outputs 130.6W / 2.72A in a 105.0 × 90.0 × 54.5 mm body. The HDR-100-48N is 100.8W / 2.1A and the HDR-100-48 is 92.2W / 1.92A, both in the smaller 90.0 × 70.0 × 54.5 mm chassis. The HDR-150-48 carries CB, CE, cUL, EAC, TÜV, UL certifications.

Q: What is the weight and footprint of the HDR-150-48?

The HDR-150-48 measures 105.0 × 90.0 × 54.5 mm and weighs 0.31 kg. This is the largest body in the HDR series, reflecting its 130.6W output capacity while still maintaining a DIN rail step-shape profile.

Q: What operating temperatures does the HDR-150-48 support?

The HDR-150-48 is rated -30°C to +70°C. It requires enclosure installation since it has no self-contained IP rating, and the -30°C lower limit allows use in cold climate control cabinets without heaters.

step size, isolation class II, DC output adjustable, no load power consumption

SKU:

HDR-150-48

$41.83 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.3W

Ultra slim design with 105mm(6SU) width

Isolation class II

Cooling by free air convection

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current	Cold start 35A at 115VAC, 70A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	110%~145% constant current limiting, auto-recovery
Over voltage protection	115%~135% rated output voltage
Setup, rise, hold up time	500ms, 60ms, 30ms
Withstand voltage	I/P-O/P:4kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards	UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH)	105x90x54.5
Packing	32pcs / 11kg

Specifications

Brand

Mean Well
Series

HDR Series
Power Rating

130.6 Watt
Output Voltage

48 Volt
Rated Current

2.72 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

CB,CE,cUL,EAC,TUV,UL
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

4.13 in
Width

3.54 in
Height

2.15 in
Weight

0.68 lb
