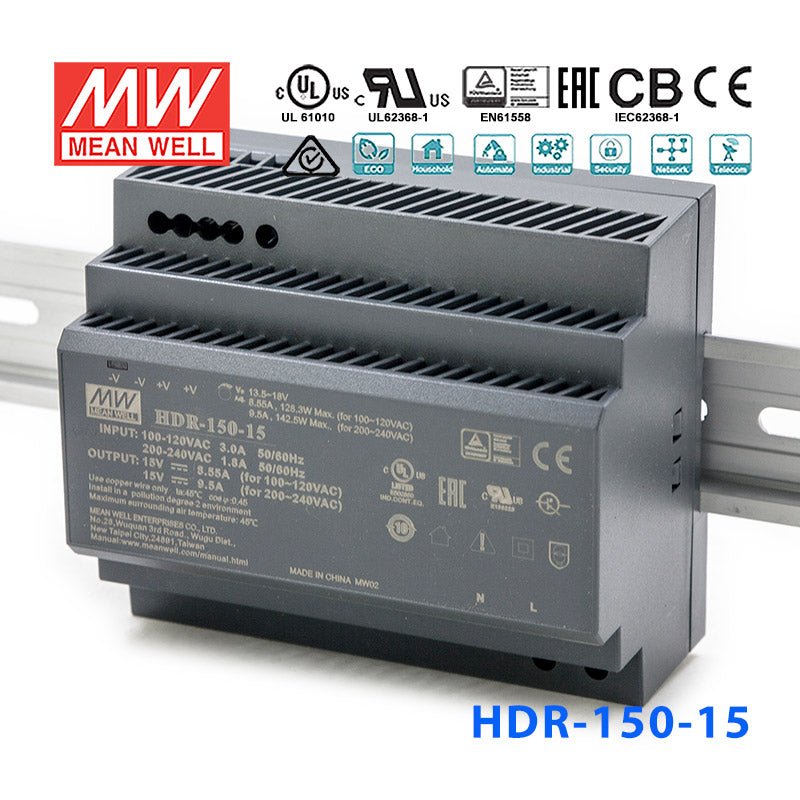

Mean Well HDR-150-15 Ultra Slim Step Shape Power Supply 150W 15V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-150-15 Ultra Slim Step Shape Power Supply 150W 15V - ...
The HDR-150 is a 150W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating128.3 Watt
-
Output Voltage15 Volt
-
Rated Current8.55 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.13 in
-
Width3.54 in
-
Height2.15 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What 15V industrial control loads can the HDR-150-15 handle?
The HDR-150-15 provides 128.3W at 8.55A on a 15V bus, making it the highest-power 15V option in the HDR series. It suits demanding 15V loads such as multi-device analog control systems, legacy industrial drives, and redundant power configurations inside DIN rail panels.
How does the HDR-150-15 compare to the HDR-100-15 and HDR-100-15N?
The HDR-150-15 is rated 128.3W / 8.55A in a 105.0 × 90.0 × 54.5 mm body (0.31 kg). The HDR-100-15N is 97.5W / 6.5A and the HDR-100-15 is 92W / 6.13A, both in a smaller 90.0 × 70.0 × 54.5 mm body (0.27 kg). The HDR-150-15 also has a reduced certification set: CB, CE, cUL, EAC, TÜV, UL (no BSMI or c-RCM).
Is the output voltage adjustable on the HDR-150-15?
Yes, the DC output voltage is field-adjustable. The no-load power consumption remains below 0.3W, keeping idle draw low in continuously energized 15V panel systems.
What are the enclosure and temperature requirements for the HDR-150-15?
The HDR-150-15 operates from -30°C to +70°C and requires installation inside a control cabinet or enclosure since it has no standalone IP rating. This operating range covers most indoor industrial environments and controlled outdoor enclosures.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HDR-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-150-12 Ultra Slim Step Shape Power Supply 150W 12V - DIN Rail | 122.4W | 12V | 10.2A | Indoor | $40.98 | View |
| Mean Well HDR-150-48 Ultra Slim Step Shape Power Supply 150W 48V - DIN Rail | 130.6W | 48V | 2.72A | Indoor | $41.83 | View |
| Mean Well HDR-150-24 Ultra Slim Step Shape Power Supply 150W 24V - DIN Rail | 127.4W | 24V | 5.31A | Indoor | $41.83 | View |
