Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

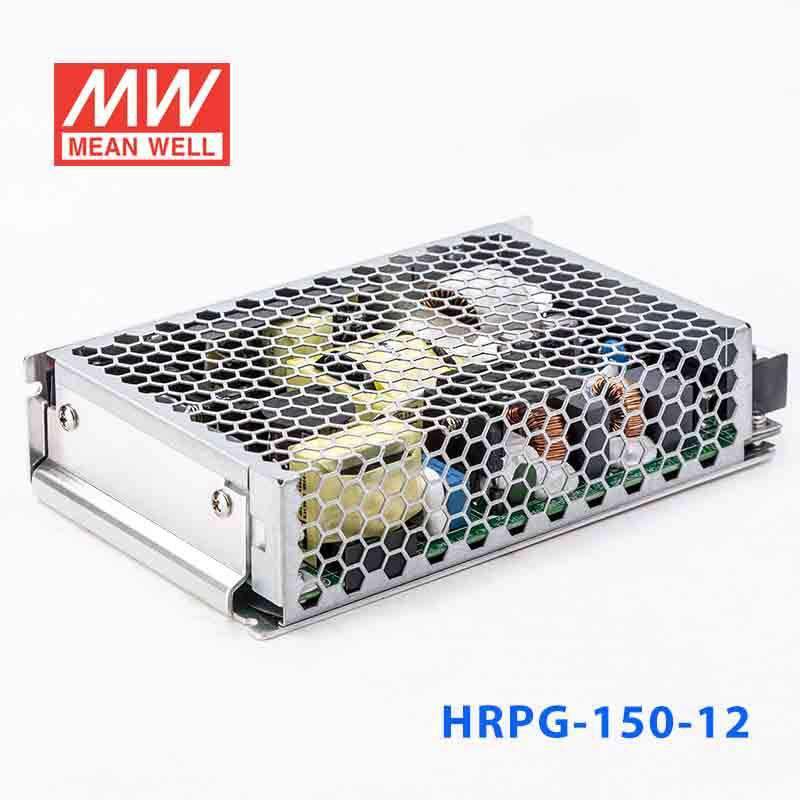

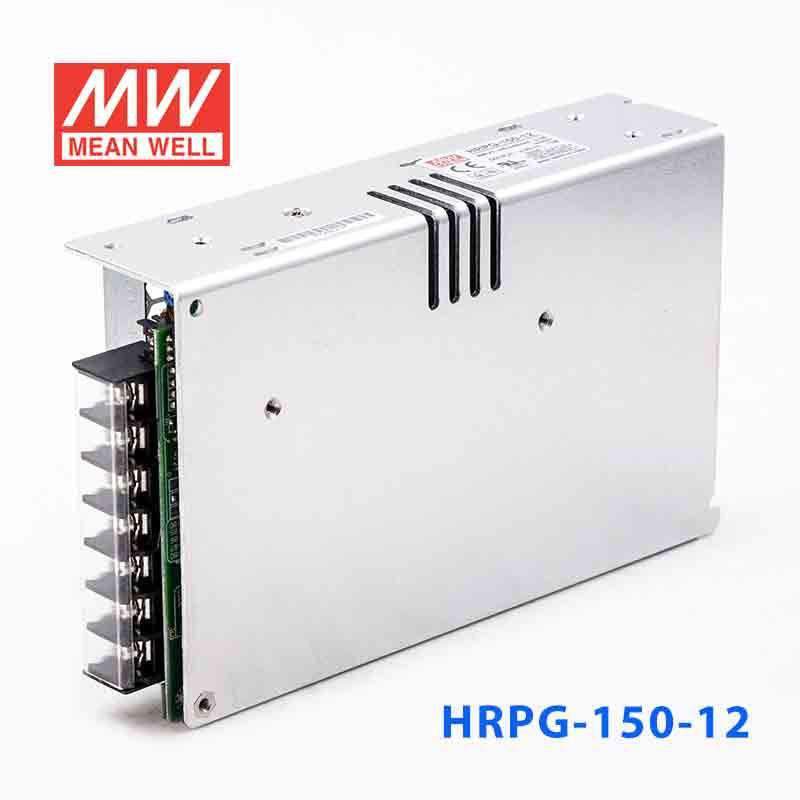

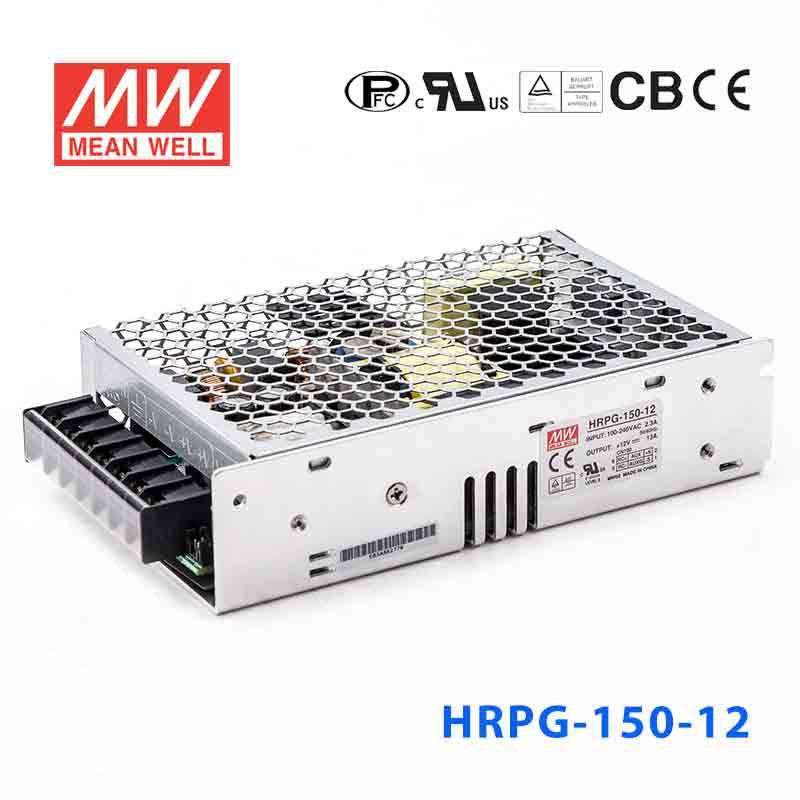

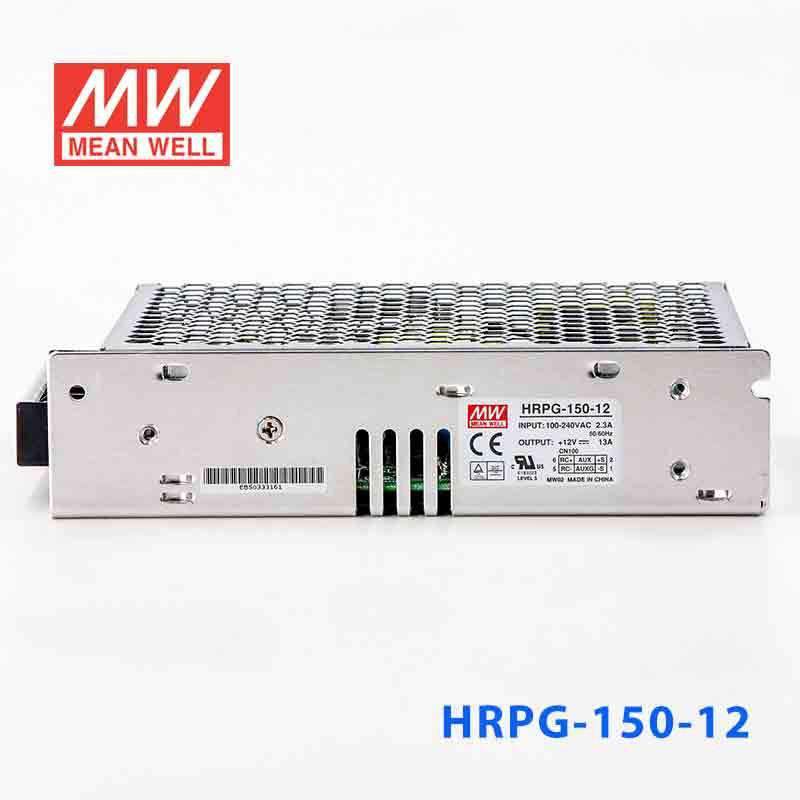

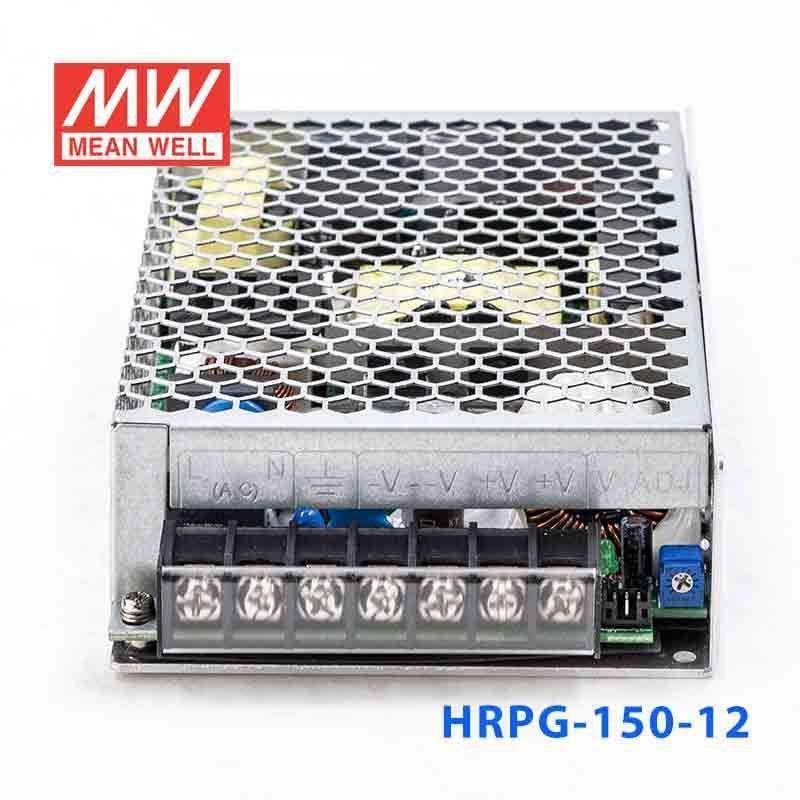

Mean Well HRPG-150-12 Power Supply 156W 12V
The HRPG-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 120~370VDC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating156 Watt
-
Output Voltage12 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.39 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-150-12 for a small 12V control panel or industrial electronics assembly?
Yes, this model is a constant-voltage 12V supply rated for 156W and up to 13A. That makes it suitable for smaller 12V industrial control, embedded, or automation loads that do not need the higher output of the 200.4W, 324W, 450W, 636W, or 960W 12V versions.
Is the HRPG-150-12 a good fit for bench testing or development of 12V embedded hardware?
It can be, because it provides a fixed 12V output with up to 13A available for lab or development setups that stay within 156W. Its 159.0 x 97.0 x 38.0 mm size and 0.63 kg weight also make it easier to place in compact equipment or test fixtures than larger 1.53 kg, 1000-class units.
Can this power supply run multiple low-to-moderate 12V automation loads from one source?
Yes, as long as the combined 12V demand remains within 13A and 156W. It is a practical option when a project needs more capacity than very small 12V sources, but not the much higher output of the HRPG-200-12, HRPG-300-12, HRPG-450-12, HRPG-600-12, or HRPG-1000-12.
How does the HRPG-150-12 compare with other 12V HRPG models?
Within the 12V HRPG lineup, HRPG-150-12 is 156W at 12V and 13A, HRPG-200-12 is 200.4W at 12V and 16.7A, HRPG-300-12 is 324W at 12V and 27A, HRPG-450-12 is 450W at 12V and 37.5A, HRPG-600-12 is 636W at 12V and 53A, and HRPG-1000-12 is 960W at 12V and 80A. The related HRPG-1000N3-12 is listed at 1000W, 12V, and 80A.
Is the HRPG-150-12 suitable for outdoor use or unconditioned spaces?
The specified operating temperature range is -40C to +70C, which supports use across a wide temperature span. No IP rating is provided in the specs, so the product data does not by itself confirm outdoor, wet, or washdown suitability.
