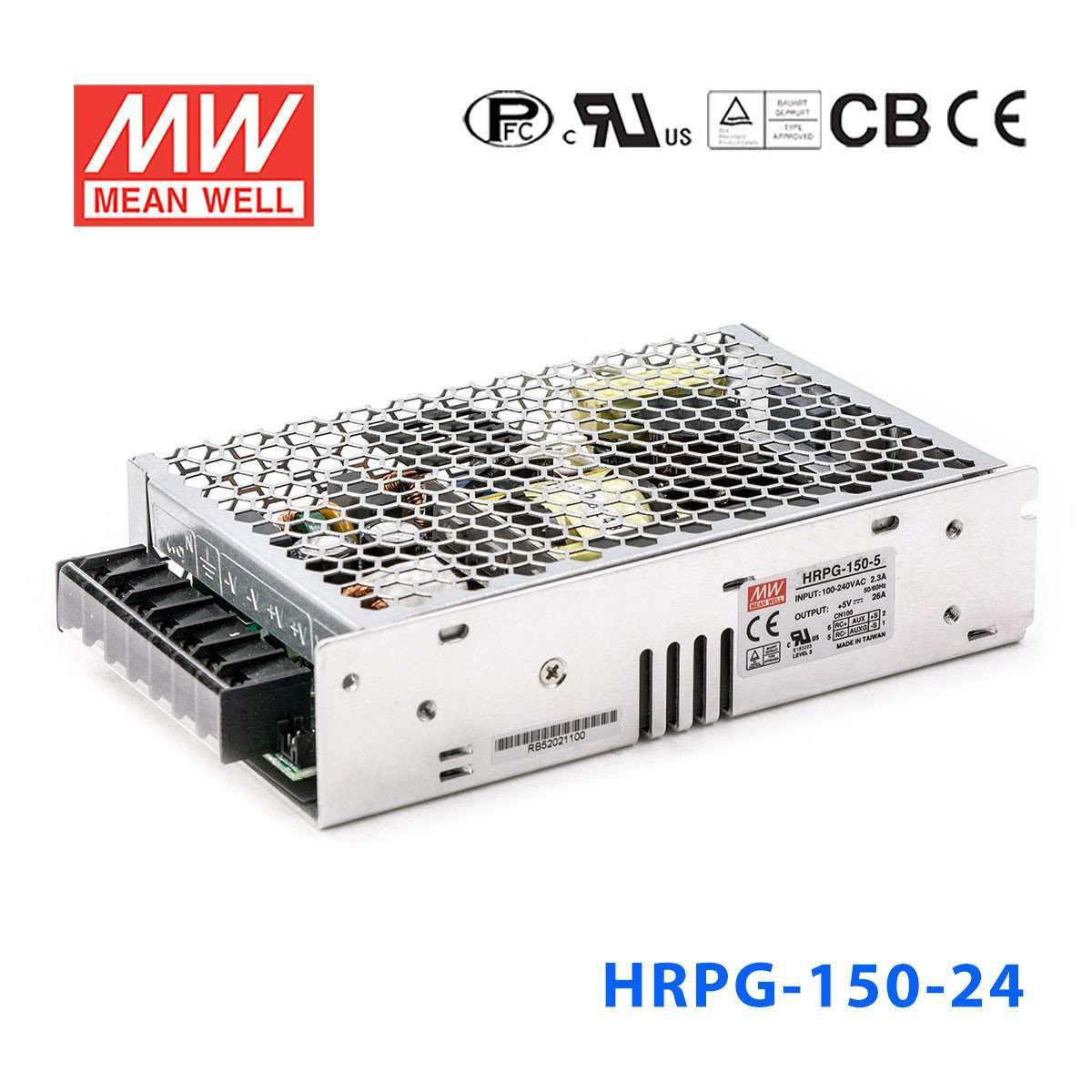

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HRPG-150-24 Power Supply 156W 24V

built-in active PFC, PF > 0.95, high efficiency up to 90%, no load power consumption

SKU:

HRPG-150-24

$65.60 USD ~~$69.23~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature (optional for HRP-75 / HRP-100)

Built-in constant current limiting circuit

Built-in remote sense function

Built-in 5V / 0.3A standby output

Cooling by free air convection

1U low profile

LED indicator for power on

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start; 70A at 230VAC
DC adjustment range	±15% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~145%
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-40~+70°C
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection	7P/9.5mm pitch terminal block with cover
Dimension (LxWxH)	159x97x38
Case No.	901I

Specifications

Brand

Mean Well
Series

HRPG Series
Power Rating

156 Watt
Output Voltage

24 Volt
Rated Current

6.5 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

6.26 in
Width

3.82 in
Height

1.5 in
Weight

1.39 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HRPG-150-24 for a 24V PLC or industrial control cabinet?

Yes, this model is a constant voltage 24V supply rated for 156W and 6.5A. That makes it suitable for 24V industrial control loads that need a fixed 24V output and stay within that power and current limit.

Is the HRPG-150-24 a good fit for embedded or automation equipment that runs on 24V DC?

It can be a fit for embedded and automation equipment that requires constant 24V DC and draws no more than 6.5A or 156W. Its 85-264VAC input also supports use across a wide AC input range.

Can this power supply run 24V sensors, relays, and small control devices in one system?

It is appropriate for grouped 24V control loads as long as the combined demand remains within 156W and 6.5A. Because it is a constant voltage unit, it is intended for equipment designed for a regulated 24V DC source.

How do I know if 156W is enough for my 24V load?

Match your total 24V load against the unit's 6.5A and 156W maximum output. If your equipment needs more than 6.5A at 24V or more than 156W total, this model is undersized.

Can the HRPG-150-24 be used in hot or cold industrial environments?

The specified operating temperature range is -40°C to +70°C, so the temperature rating is broad for industrial enclosures. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not stated by these specifications.
