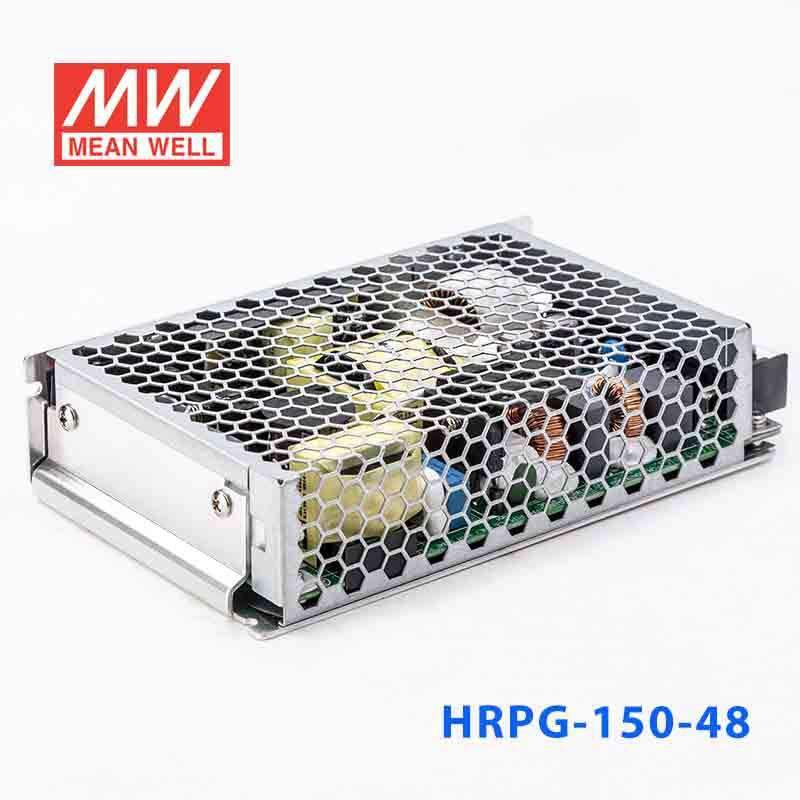

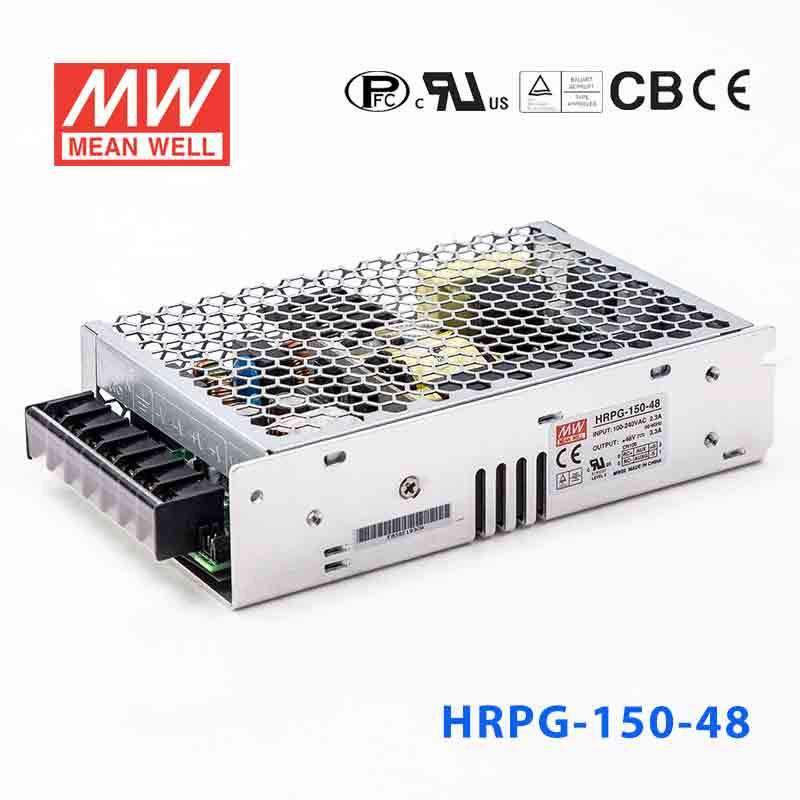

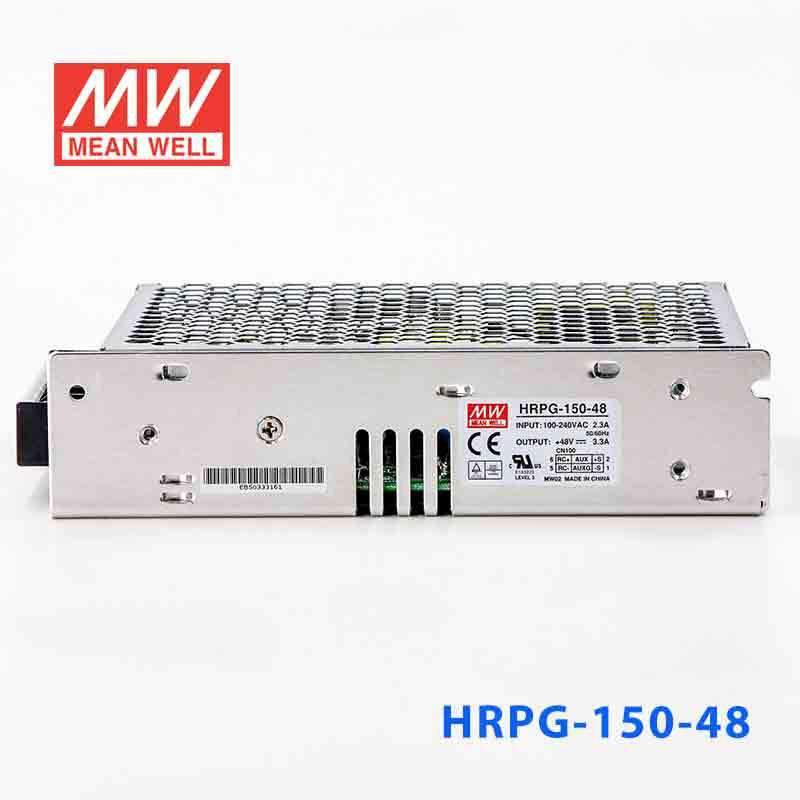

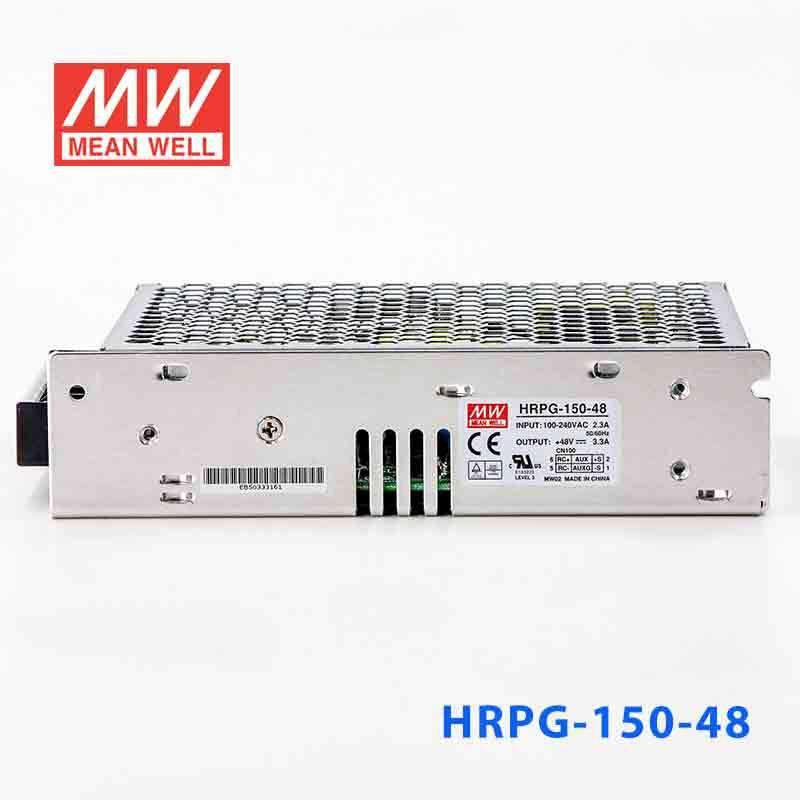

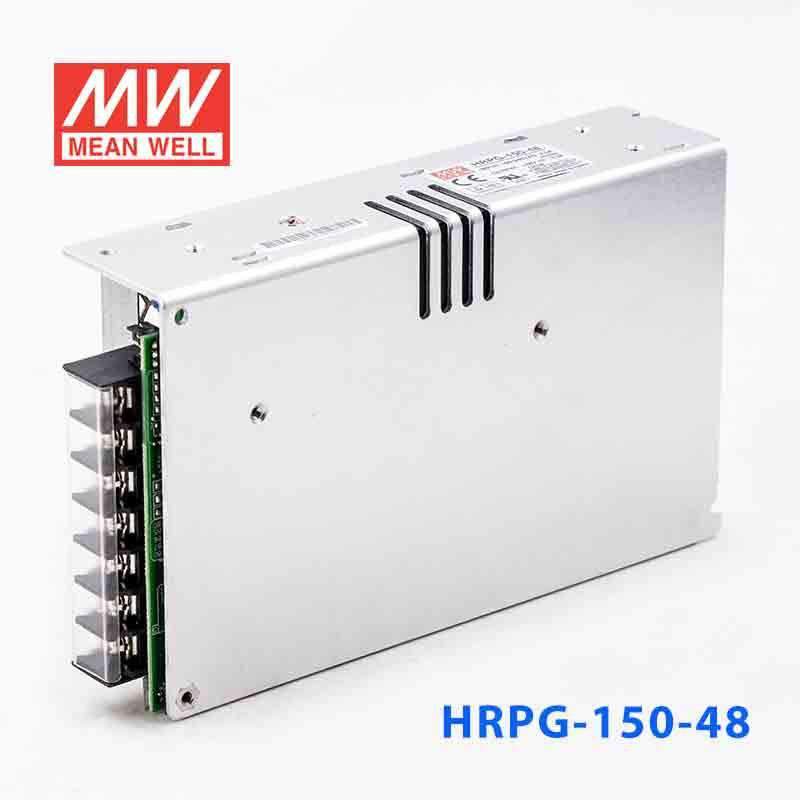

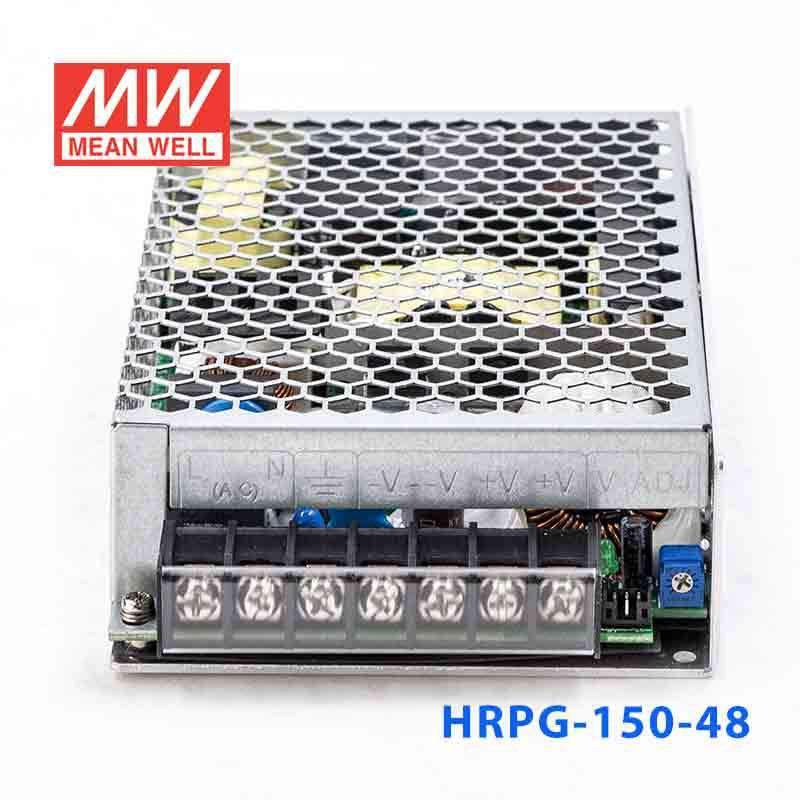

Mean Well HRPG-150-48 Power Supply 158.4W 48V 3.3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-150-48 Power Supply 158.4W 48V 3.3A
The HRPG-150 is a 158.4W Mean Well power supply (input: 85~264VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 85~264VAC
- ✓ Output voltage (max): 48V
- ✓ Rated output current: 3.3A
- ✓ Operating temperature: -40~+70°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating158.4 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.39 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-150-48 for 48V telecom or industrial communication equipment?
It can be used for 48V equipment that needs constant voltage output and stays within 158.4W and 3.3A. That fits lower-power 48V systems better than higher-current 48V loads.
Is the HRPG-150-48 suitable for 48V automation devices or embedded control hardware?
Yes, for 48V automation or embedded hardware that is designed for a fixed 48V DC supply and draws no more than 3.3A. Its rated output is 158.4W at 48V.
Can this model power a small 48V control subsystem in a rack or cabinet?
It is appropriate for a small 48V subsystem if the combined load remains under 3.3A and 158.4W. The 1U low profile form factor may also help where vertical space is limited.
How do I check if this 48V power supply is large enough for my load?
Compare your total 48V demand with the supply's 3.3A and 158.4W output rating. If the load exceeds either number, you need a higher-capacity 48V model.
Is the HRPG-150-48 intended for outdoor use or only protected locations?
The temperature specification is -40°C to +70°C, so it is rated for a wide operating temperature range. The provided specs do not include an IP rating, so outdoor sealing or water resistance is not specified.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRPG-150 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRPG-150-12 Power Supply 156W 12V 13A | 156W | 12V | 13A | Indoor | $69.23 | View |
| Mean Well HRPG-150-7.5 Power Supply 150W 7.5V 20A | 150W | 7.5V | 20A | Indoor | $69.23 | View |
| Mean Well HRPG-150-5 Power Supply 130W 5V 26A | 130W | 5V | 26A | Indoor | $69.23 | View |
| Mean Well HRPG-150-36 Power Supply 154.8W 36V 4.3A | 154.8W | 36V | 4.3A | Indoor | $69.23 | View |
| Mean Well HRPG-150-3.3 Power Supply 99W 3.3V 30A | 99W | 3.3V | 30A | Indoor | $69.23 | View |
| Mean Well HRPG-150-24 Power Supply 156W 24V 6.5A | 156W | 24V | 6.5A | Indoor | $69.23 | View |
| Mean Well HRPG-150-15 Power Supply 150W 15V 10A | 150W | 15V | 10A | Indoor | $69.23 | View |
