Mean Well HRPGG-600-15 Power Supply 645W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours

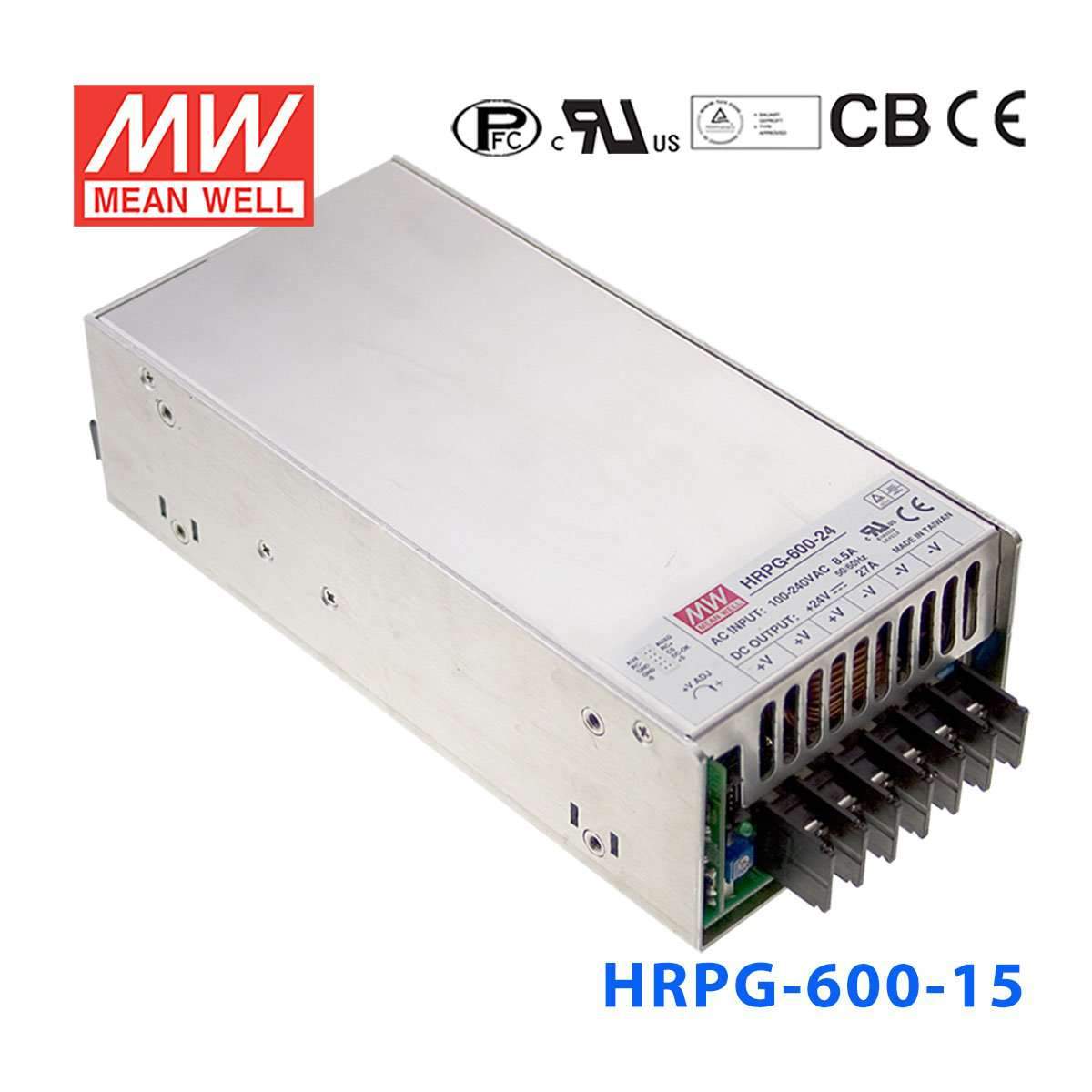

Mean Well HRPGG-600-15 Power Supply 645W 15V
The HRPG-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating645 Watt
-
Output Voltage15 Volt
-
Rated Current43 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-600-15 for 15V industrial equipment or test systems?
Yes, if the equipment requires constant 15V DC and the total load stays within 645W and 43A. That makes it suitable for higher-power industrial electronics, production test fixtures, or automation subsystems designed around 15V rails.
Is the HRPG-600-15 a good fit for embedded or control electronics that run on 15V DC?
It can be used where the system is specified for 15V constant voltage input and needs substantial current headroom up to 43A. The 645W rating gives more capacity than lower-output 15V models when a single supply must support multiple 15V loads.
Can this model support a centralized 15V DC bus inside an automation cabinet?
It is designed for constant voltage service at 15V and can supply up to 645W and 43A. That makes it a practical option for centralized 15V DC distribution in industrial or embedded cabinets where several 15V devices are powered from one source.
What is the difference between the HRPG-600-15 and the other HRPG-600 versions?
The HRPG-600 family includes HRPG-600-3.3 at 396W, 3.3V, 120A; HRPG-600-5 at 600W, 5V, 120A; HRPG-600-7.5 at 600W, 7.5V, 80A; HRPG-600-12 at 636W, 12V, 53A; HRPG-600-15 at 645W, 15V, 43A; HRPG-600-24 at 648W, 24V, 27A; HRPG-600-36 at 630W, 36V, 17.5A; and HRPG-600-48 at 624W, 48V, 13A. The chassis size stays 218.0 x 105.0 x 63.5 mm with 85-264VAC input, so the key difference is the output voltage, current, and power rating.
Is the HRPG-600-15 meant for indoor use only, or can it handle demanding environments?
Its operating temperature range is -40C to +70C, which supports use in demanding ambient conditions. The listed specs do not include an IP rating, so exposed outdoor use should not be assumed without a suitable protective enclosure.
