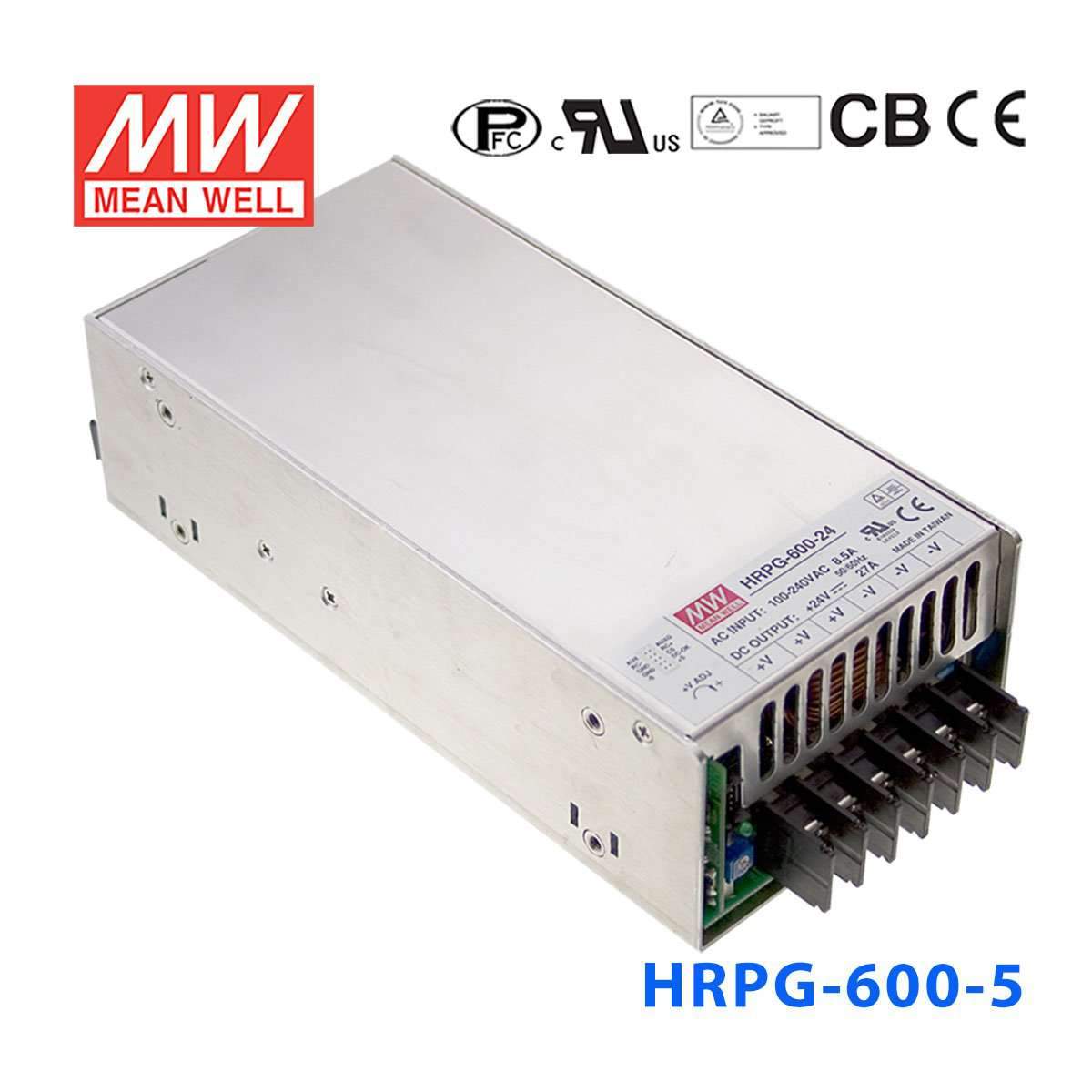

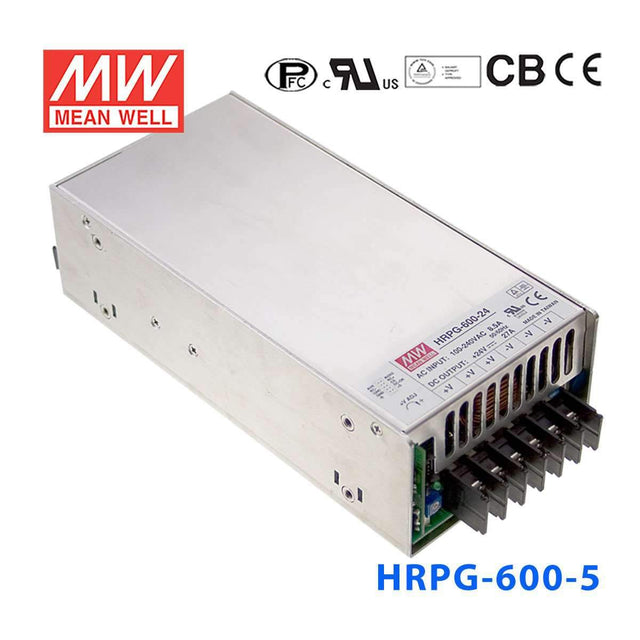

Mean Well HRPGG-600-5 Power Supply 600W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPGG-600-5 Power Supply 600W 5V
Description
Description
Features
| Universal AC input / Full range |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Built-in remote sense function |
| Forced air cooling by built-in DC fan |
| Built-in DC OK signal |
| 1U low profile |
| No load power consumption<0.75W |
| Built-in remote ON/OFF control & 5V / 0.3A standby output |
| Built-in current sharing |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±15% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -40~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level |
| Connection | 3+6P/10&11mm pitch terminal block with cover |
| Dimension (LxWxH) | 218x105x63.5 |
| Case No. | 977A |
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating600 Watt
-
Output Voltage5 Volt
-
Rated Current120 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HRPG-600-5 for a high-current 5V industrial control or embedded system?
Yes, if the system is designed for constant voltage 5V input and needs substantial current. This model delivers 600W at 5V with up to 120A, which is suited to dense 5V logic, controller, or embedded loads.
Is the HRPG-600-5 appropriate for powering a 5V backplane, compute chassis, or electronics test fixture?
It can be, provided the load requires regulated 5V DC and remains within the 600W and 120A limits. The 85-264VAC input also helps when the same 5V platform is used across different AC input ranges.
Can this power supply support multiple 5V devices from one central source in an automation system?
Yes, that is a typical fit for a constant voltage 5V supply with very high current capacity. At 120A output, it is more appropriate for grouped 5V loads than smaller 5V models such as the HRPG-150-5 at 130W and 26A or the HRPG-300-5 at 300W and 60A.
How does the HRPG-600-5 compare with the other HRPG-600 versions?
In the HRPG-600 range, the outputs are 396W at 3.3V and 120A, 600W at 5V and 120A, 600W at 7.5V and 80A, 636W at 12V and 53A, 645W at 15V and 43A, 648W at 24V and 27A, 630W at 36V and 17.5A, and 624W at 48V and 13A. The 5V version stands out for combining low output voltage with the highest current rating in the group.
Can the HRPG-600-5 be used in harsh temperature conditions or outdoor cabinets?
Its operating range is -40°C to +70°C, which supports demanding temperature conditions. The specs shown do not include an IP rating, so it should be treated as a component for protected enclosures rather than an exposed outdoor power supply.
