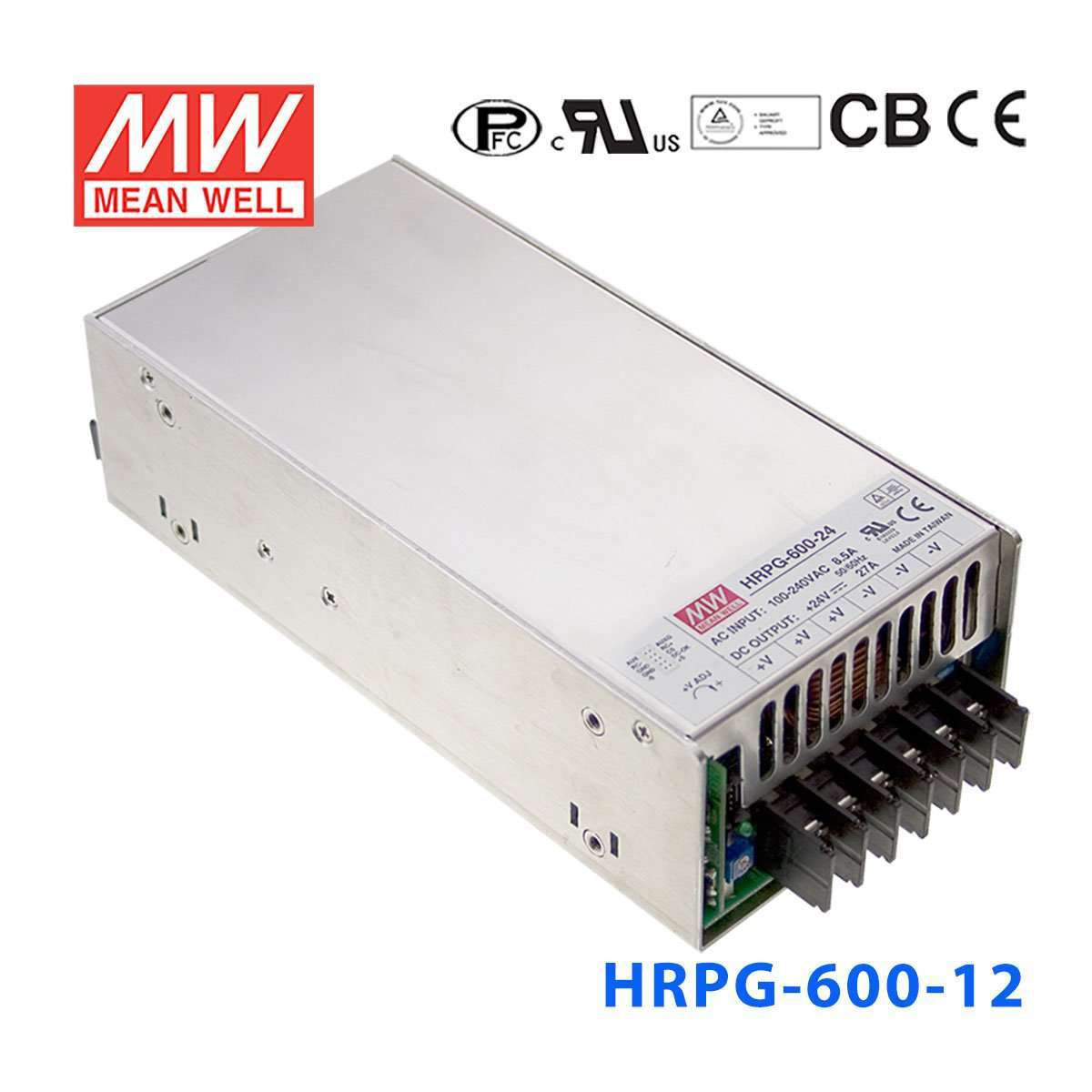

Mean Well HRPGG-600-12 Power Supply 636W 12V 53A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPGG-600-12 Power Supply 636W 12V 53A
The HRPG-600 is a 636W Mean Well power supply (input: 85~264VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 85~264VAC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 53A
- ✓ Operating temperature: -40~+70°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating636 Watt
-
Output Voltage12 Volt
-
Rated Current53 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-600-12 for a 12V industrial control panel with multiple DC loads?
Yes, if the panel is designed for a 12V constant voltage supply and the combined load stays within 636W and 53A. That makes it suitable for higher-load industrial control assemblies, embedded systems, or automation panels built around 12V DC distribution.
Is the HRPG-600-12 suitable for 12V embedded computing or edge devices in an equipment rack?
It can be a fit for 12V embedded computing or industrial IT hardware that requires constant 12V DC and stays within 636W and 53A. The 1U low profile and 218.0 x 105.0 x 63.5 mm housing are useful where rack or cabinet space is limited.
Can this power supply run a larger 12V automation or communications load?
It is intended for higher-power 12V constant voltage loads, with up to 636W and 53A available. That makes it more appropriate for larger centralized 12V DC loads than lower-output models in the same series.
How does the HRPG-600-12 compare with the other HRPG-600 models?
Within the HRPG-600 group, the variants are HRPG-600-3.3 at 396W, 3.3V, 120A; HRPG-600-5 at 600W, 5V, 120A; HRPG-600-7.5 at 600W, 7.5V, 80A; HRPG-600-12 at 636W, 12V, 53A; HRPG-600-15 at 645W, 15V, 43A; HRPG-600-24 at 648W, 24V, 27A; HRPG-600-36 at 630W, 36V, 17.5A; and HRPG-600-48 at 624W, 48V, 13A. All share the same 218.0 x 105.0 x 63.5 mm size, 1.58 kg weight, and 85-264VAC input, so the main selection point is the DC output rating.
Can the HRPG-600-12 be used outdoors or in harsh temperature conditions?
The specified operating temperature is -40C to +70C, so it is built for a wide temperature range. The provided specs do not list an IP rating, so outdoor or washdown suitability should be determined by the enclosure rather than the power supply alone.
