Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

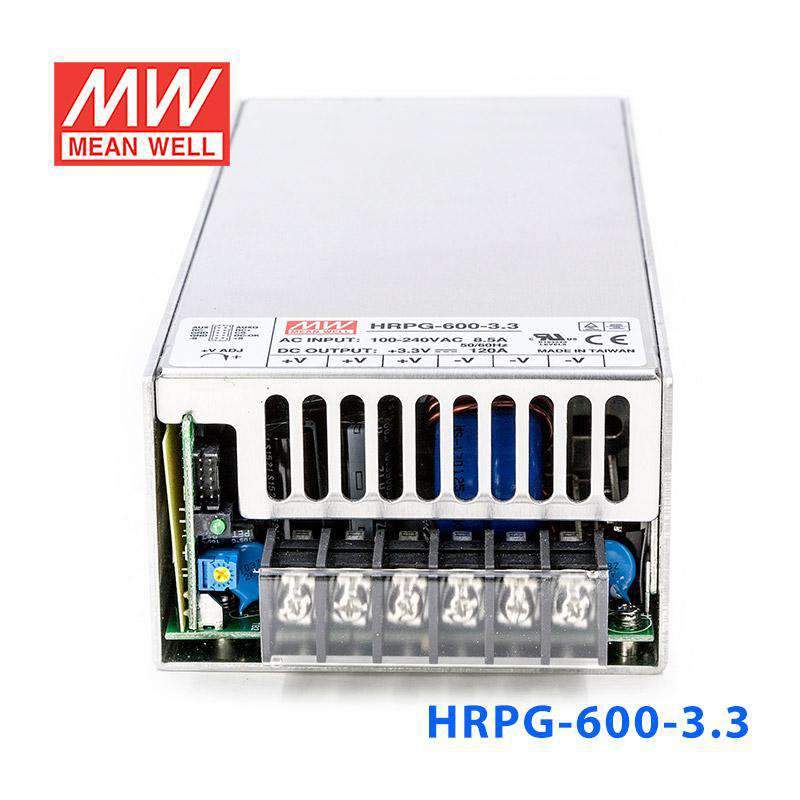

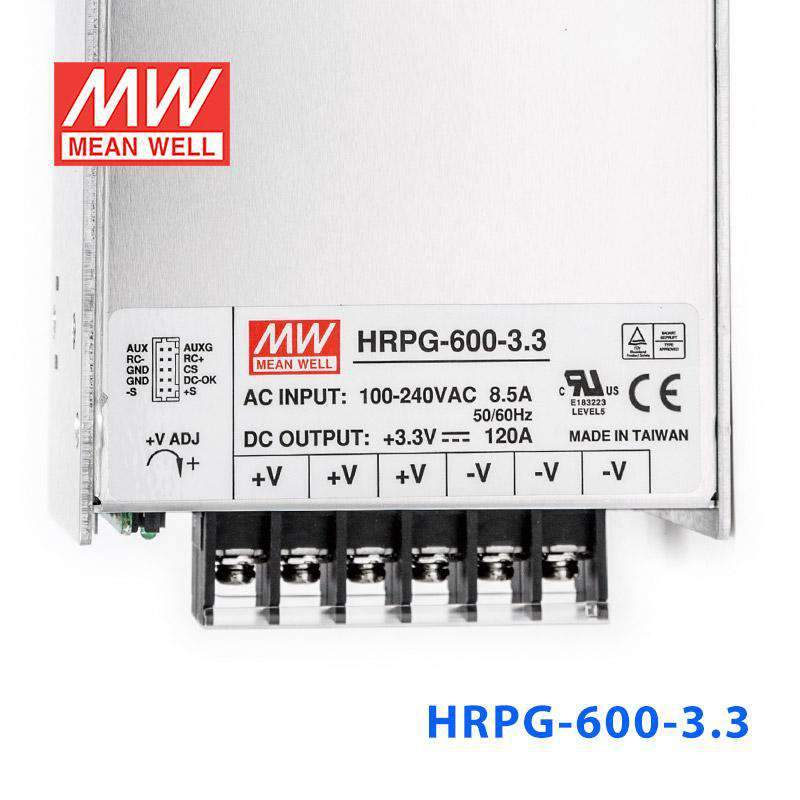

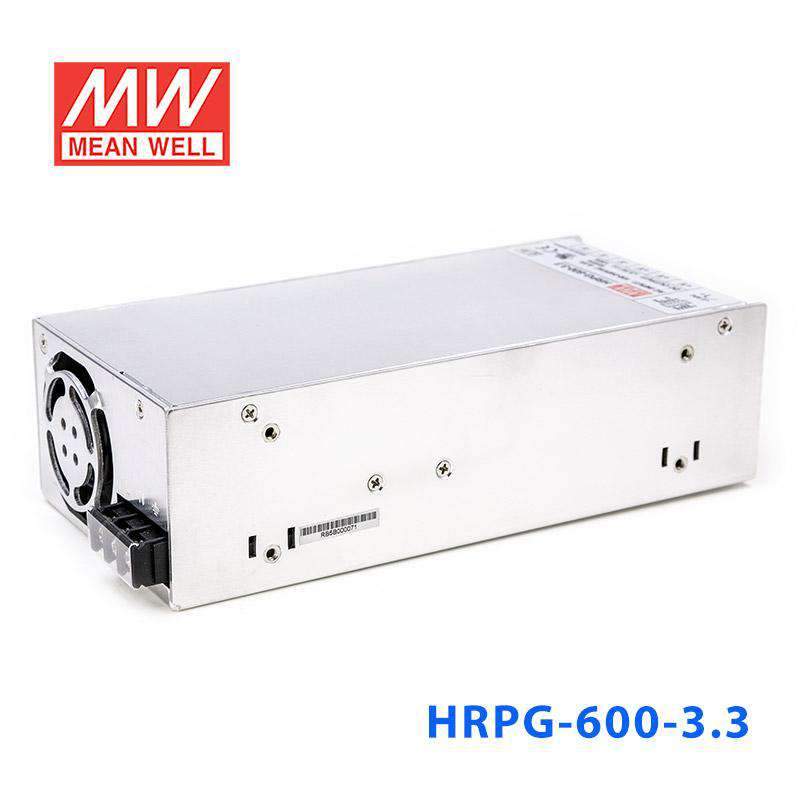

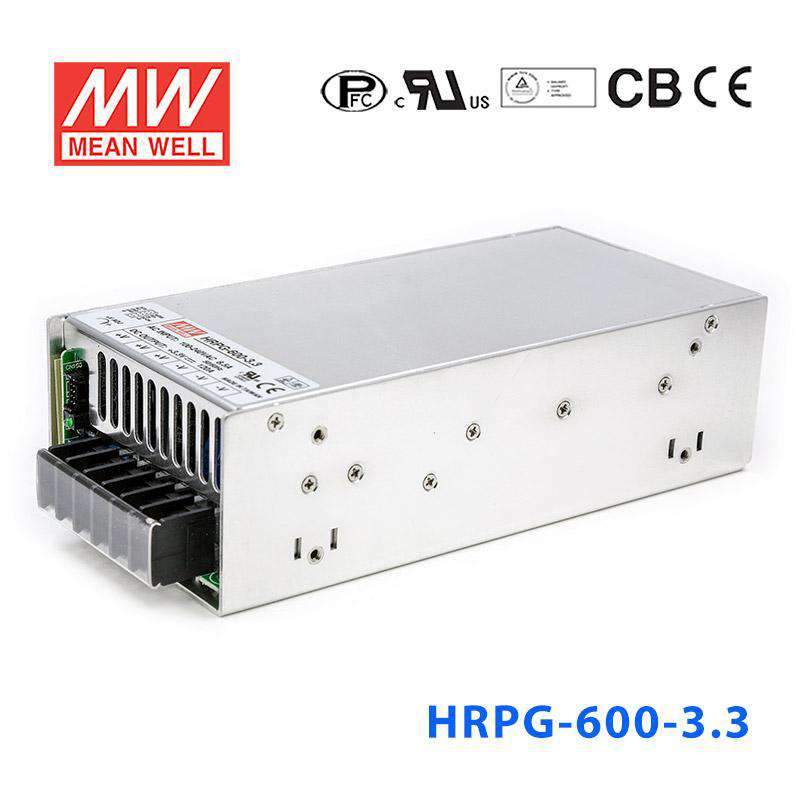

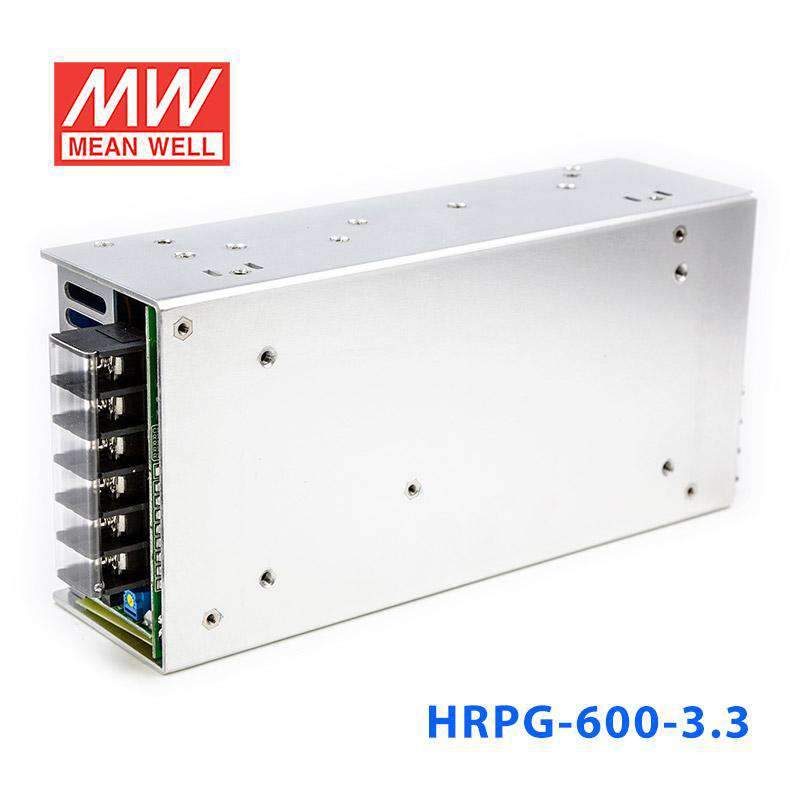

Mean Well HRPGG-600-3.3 Power Supply 396W 3.3V

$170.26 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Built-in remote sense function
Forced air cooling by built-in DC fan
Built-in DC OK signal
1U low profile
No load power consumption<0.75W
Built-in remote ON/OFF control & 5V / 0.3A standby output
Built-in current sharing
100% full load burn-in test
5 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
DC adjustment range ±15% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection 115%~145%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -40~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection 3+6P/10&11mm pitch terminal block with cover
Dimension (LxWxH) 218x105x63.5
Case No. 977A

Specifications

  • Brand
    Mean Well
  • Series
    HRPG Series
  • Power Rating
    396 Watt
  • Output Voltage
    3.3 Volt
  • Rated Current
    120 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    8.58 in
  • Width
    4.13 in
  • Height
    2.5 in
  • Weight
    3.48 lb

File Downloads

::specification::
