Mean Well HRPGG-600-24 Power Supply 648W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours

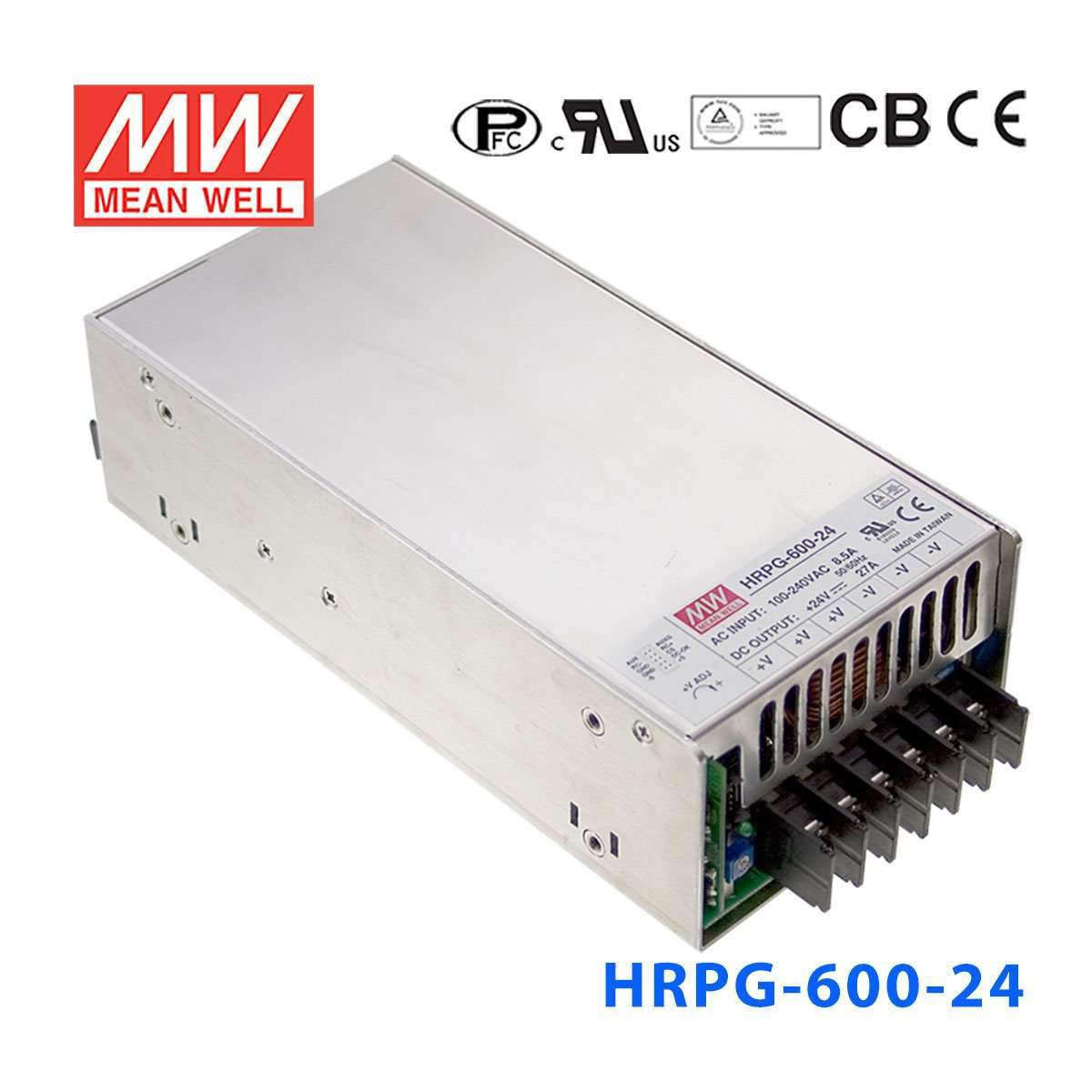

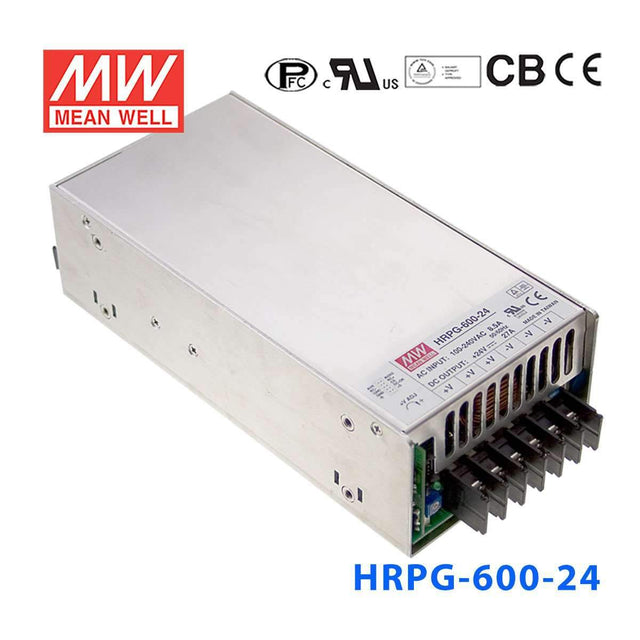

Mean Well HRPGG-600-24 Power Supply 648W 24V
The HRPG-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating648 Watt
-
Output Voltage24 Volt
-
Rated Current27 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-600-24 for a 24V PLC or industrial automation panel?
Yes, if the panel uses a 24V constant voltage bus and the total demand stays within 648W and 27A. That aligns well with many industrial automation, PLC, HMI, and control cabinet applications built around 24V DC.
Is the HRPG-600-24 suitable for powering multiple 24V sensors, controllers, and accessories from one supply?
It is intended for 24V constant voltage systems and can deliver up to 27A with 648W total output. That makes it a strong fit for centralized 24V distribution where several industrial or embedded loads share one power source.
Can the HRPG-600-24 be used in industrial IT or communications equipment that requires 24V DC?
It can be used where the equipment is specified for constant 24V DC input and remains within 648W and 27A. The 1U low profile format also helps where cabinet or rack space is constrained.
How does the HRPG-600-24 compare with the other HRPG-600 models?
The HRPG-600 range covers HRPG-600-3.3 at 396W, 3.3V, 120A; HRPG-600-5 at 600W, 5V, 120A; HRPG-600-7.5 at 600W, 7.5V, 80A; HRPG-600-12 at 636W, 12V, 53A; HRPG-600-15 at 645W, 15V, 43A; HRPG-600-24 at 648W, 24V, 27A; HRPG-600-36 at 630W, 36V, 17.5A; and HRPG-600-48 at 624W, 48V, 13A. Across these models, the mechanical size is 218.0 x 105.0 x 63.5 mm and the AC input range is 85-264VAC.
Can the HRPG-600-24 be used outside or in unconditioned industrial spaces?
The unit is rated for operation from -40C to +70C, so it supports a wide ambient temperature range. The specs provided here do not show an IP rating, which means outdoor suitability depends on the enclosure and site protection rather than the power supply by itself.
