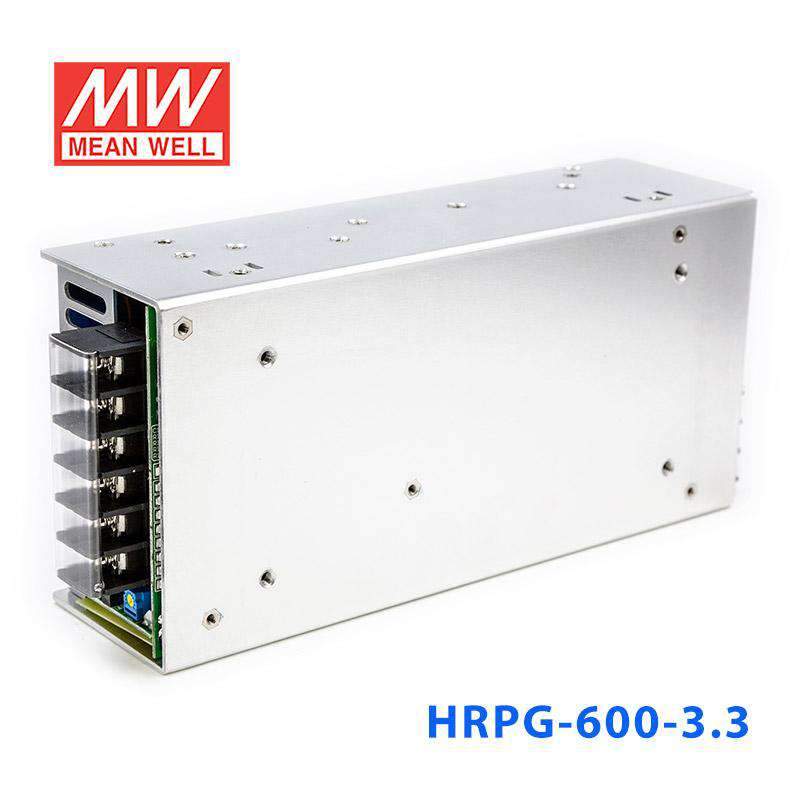

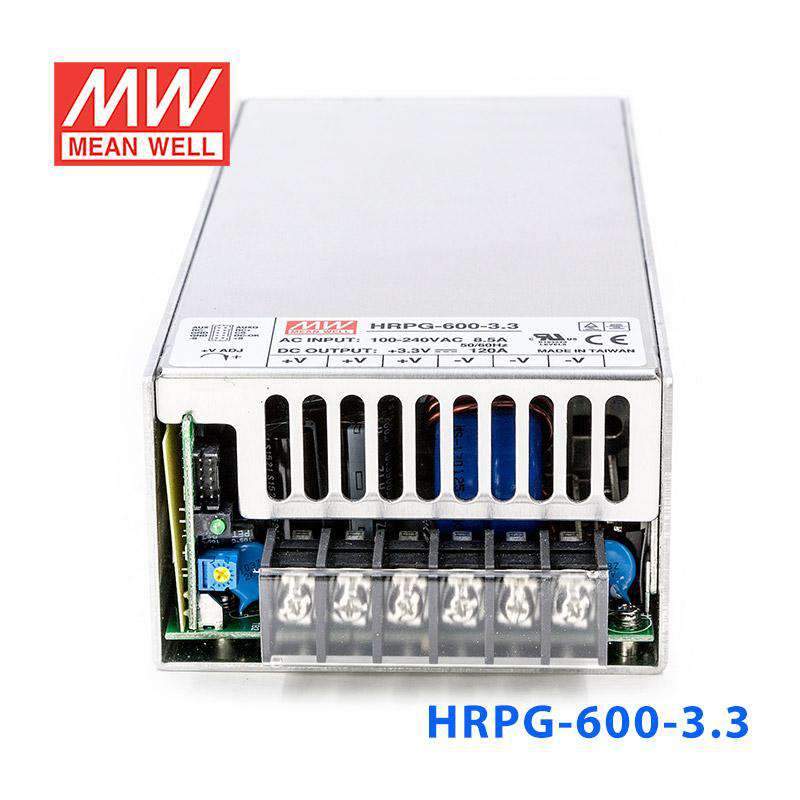

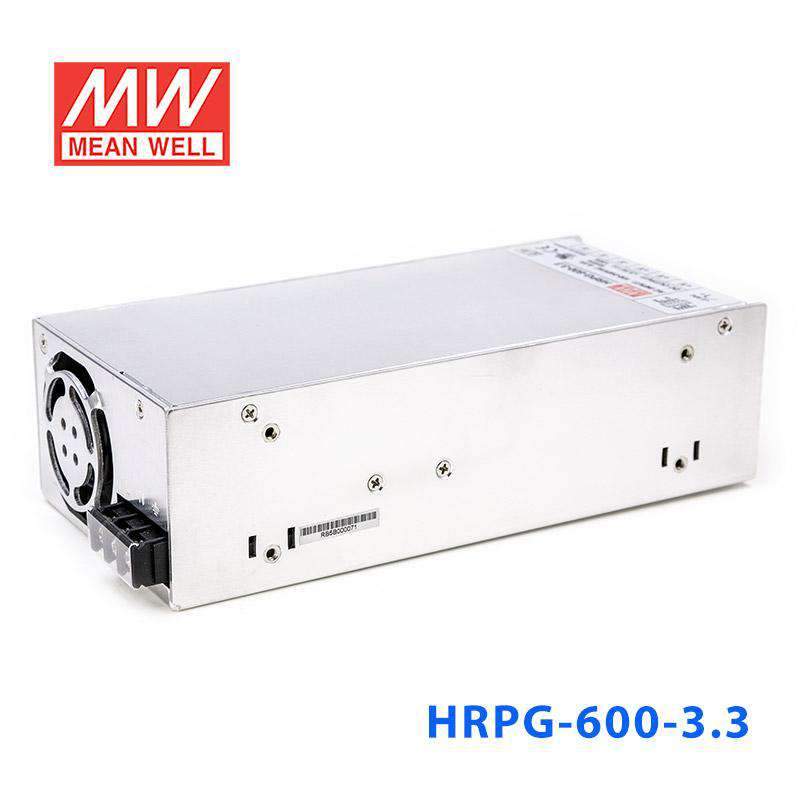

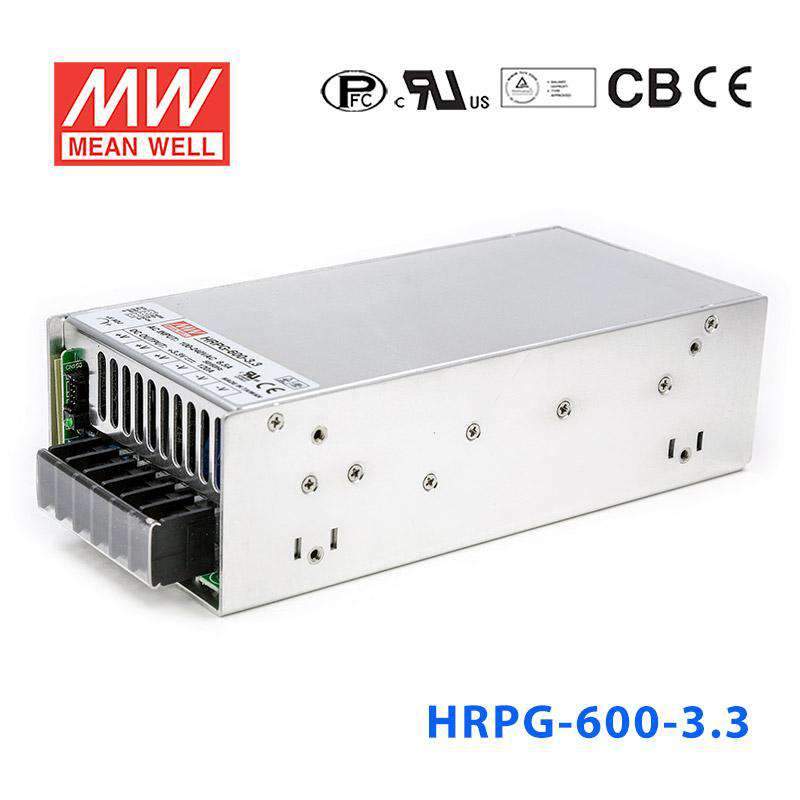

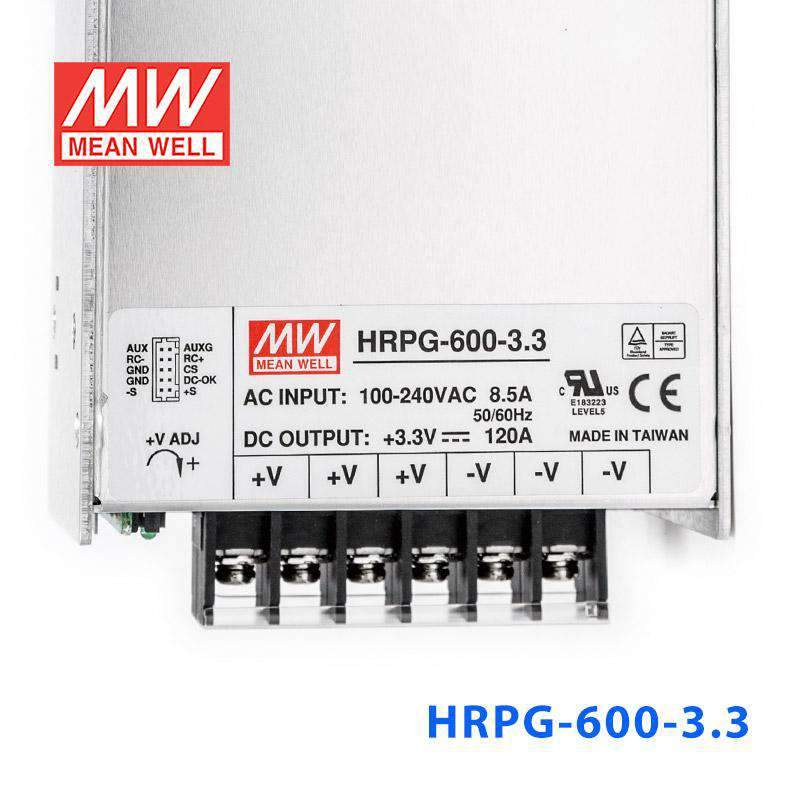

Mean Well HRPGG-600-3.3 Power Supply 396W 3.3V 120A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPGG-600-3.3 Power Supply 396W 3.3V 120A
The HRPG-600-3.3 is a 396W Mean Well power supply (input: 85~264VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 85~264VAC
- ✓ Output voltage (max): 3.3V
- ✓ Rated output current: 120A
- ✓ Operating temperature: -40~+70°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating396 Watt
-
Output Voltage3.3 Volt
-
Rated Current120 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-600-3.3 for a high-current 3.3V logic or processor rail?
Yes, if the equipment requires constant 3.3V DC and the total load stays within 396W and 120A. That makes it relevant for high-current embedded logic, processor, FPGA, or digital backplane applications built around a 3.3V rail.
Is the HRPG-600-3.3 suitable for industrial embedded systems with many 3.3V loads?
It can fit industrial embedded platforms that distribute constant 3.3V DC across multiple loads, provided the total demand does not exceed 396W and 120A. The very high current rating is the main reason to choose this version over higher-voltage models in the series.
Can this model power a 3.3V test bench or electronics development rack?
It is designed for constant voltage output at 3.3V with up to 120A available. That suits bench, lab, or production environments where a regulated 3.3V source is needed for high-current electronics work.
How does the HRPG-600-3.3 compare with the other HRPG-600 versions?
In the HRPG-600 family, HRPG-600-3.3 is 396W at 3.3V and 120A; HRPG-600-5 is 600W at 5V and 120A; HRPG-600-7.5 is 600W at 7.5V and 80A; HRPG-600-12 is 636W at 12V and 53A; HRPG-600-15 is 645W at 15V and 43A; HRPG-600-24 is 648W at 24V and 27A; HRPG-600-36 is 630W at 36V and 17.5A; and HRPG-600-48 is 624W at 48V and 13A. The 3.3V model stands out for the lowest voltage and the highest current rating at 120A.
Is the HRPG-600-3.3 appropriate for outdoor use or only protected installations?
Its operating temperature range is -40C to +70C, so temperature capability is broad. The listed specifications do not include an IP rating, so it should be treated as a unit that needs enclosure protection when used in exposed environments.
