Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

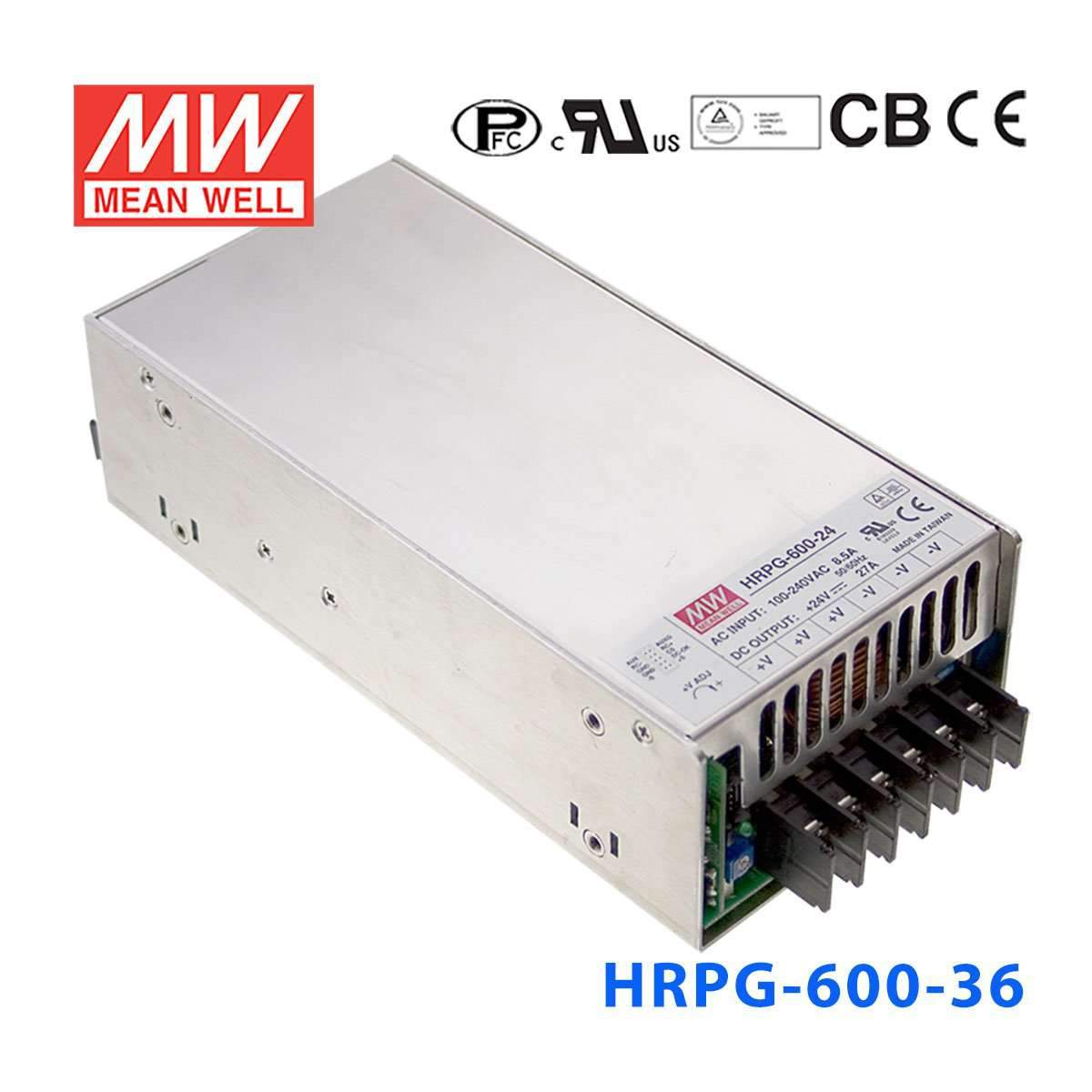

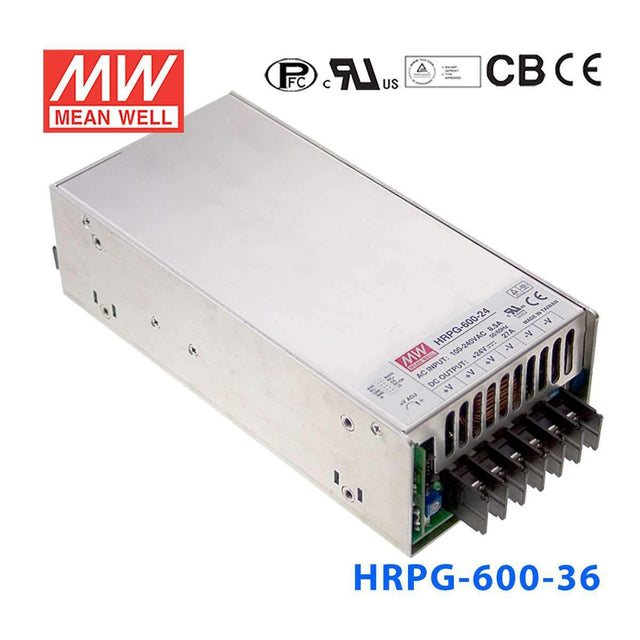

Mean Well HRPGG-600-36 Power Supply 630W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPGG-600-36 Power Supply 630W 36V
The HRPG-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating630 Watt
-
Output Voltage36 Volt
-
Rated Current17.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-600-36 for a 36V industrial control or automation system?
Yes, if the system is designed for constant 36V DC input and the load remains within 630W and 17.5A. That makes it suitable for industrial control assemblies, automation equipment, or embedded systems built around a 36V DC bus.
Is the HRPG-600-36 suitable for powering 36V instruments or electronic loads in a cabinet?
It can be a fit for 36V constant voltage instruments, industrial electronics, or control hardware that require up to 17.5A. The 218.0 x 105.0 x 63.5 mm low-profile package also helps in space-constrained cabinets.
Can this power supply support a centralized 36V DC distribution system?
It is intended for centralized constant voltage output at 36V with up to 630W available. That makes it practical when several 36V DC loads need to be powered from one source in industrial or embedded equipment.
How does the HRPG-600-36 compare with the other HRPG-600 models?
The HRPG-600 lineup includes HRPG-600-3.3 at 396W, 3.3V, 120A; HRPG-600-5 at 600W, 5V, 120A; HRPG-600-7.5 at 600W, 7.5V, 80A; HRPG-600-12 at 636W, 12V, 53A; HRPG-600-15 at 645W, 15V, 43A; HRPG-600-24 at 648W, 24V, 27A; HRPG-600-36 at 630W, 36V, 17.5A; and HRPG-600-48 at 624W, 48V, 13A. The 36V version sits near the higher-voltage end of the range while keeping the same 85-264VAC input and 1U low-profile form factor.
Can the HRPG-600-36 be used in outdoor or temperature-variable environments?
The operating temperature range is -40C to +70C, which supports use in wide-temperature industrial settings. No IP rating is listed in the provided specs, so outdoor suitability depends on using an enclosure that provides the required environmental protection.
