Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

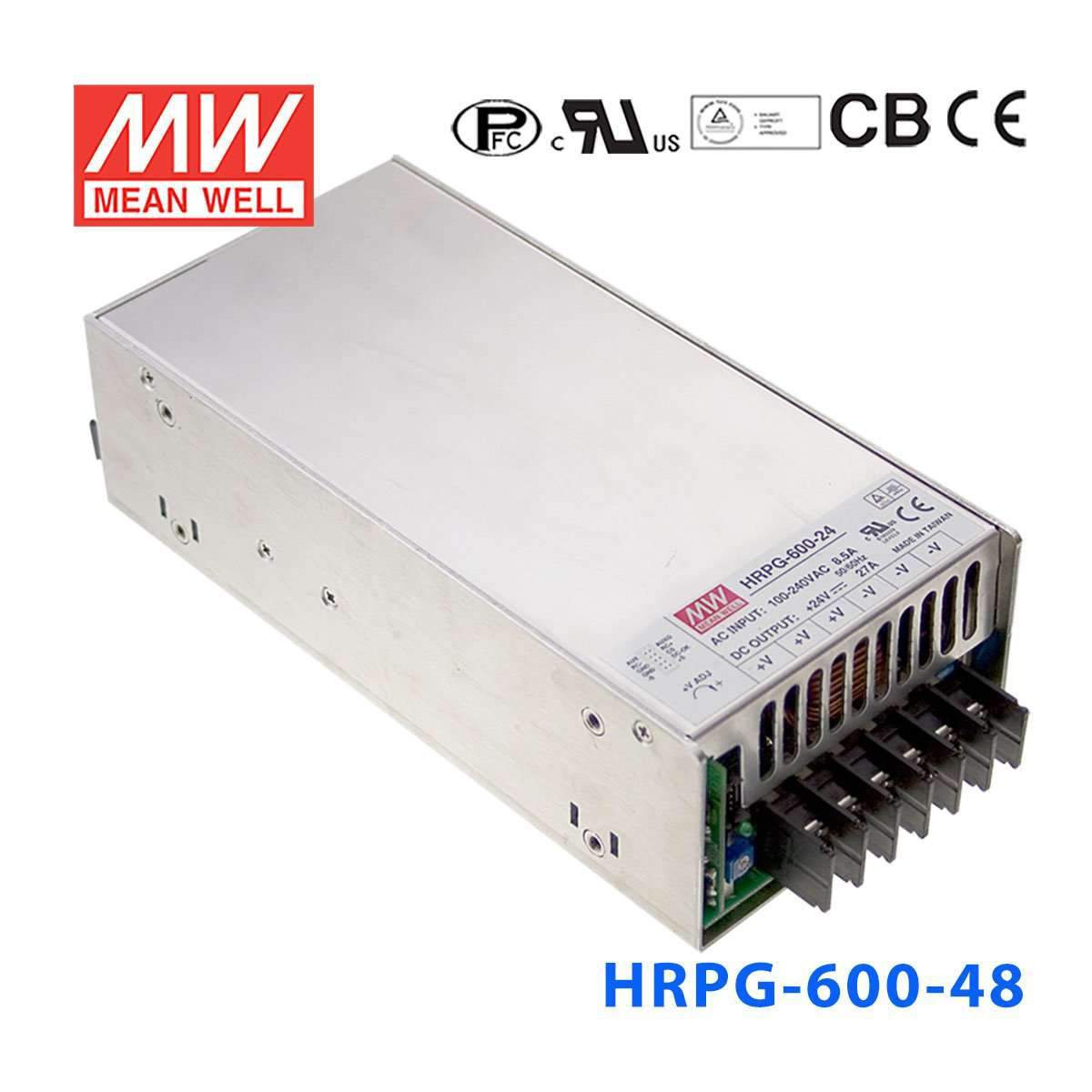

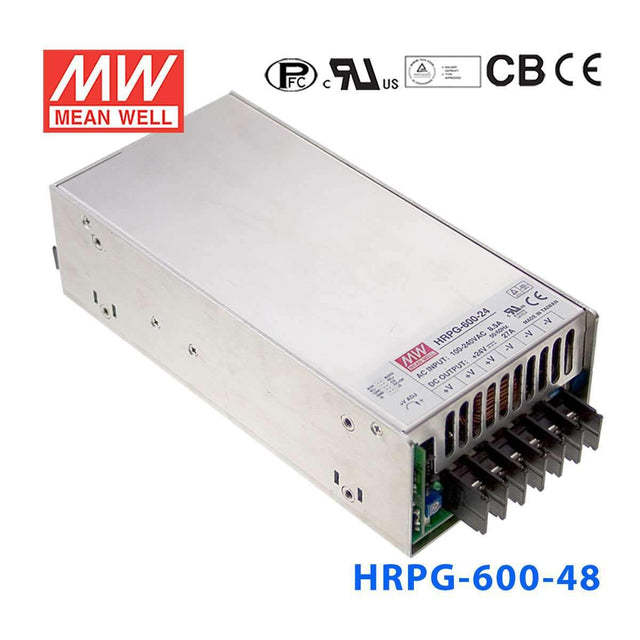

Mean Well HRPGG-600-48 Power Supply 624W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPGG-600-48 Power Supply 624W 48V
The HRPG-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating624 Watt
-
Output Voltage48 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-600-48 for a 48V industrial control cabinet or automation panel?
Yes, this model is a constant voltage 48V supply rated for 624W and 13A, which fits equipment designed around a regulated 48V DC bus. Its 85-264VAC input and 1U low-profile form factor also make it practical for industrial cabinets that need high power density.
Is the HRPG-600-48 suitable for 48V telecom or network equipment that needs a higher-power DC source?
It can be suitable when the equipment requires a constant 48V output and the total load stays within 624W and 13A. This model is positioned for higher-power 48V loads than the HRPG-300-48 at 336W and 7A or the HRPG-450-48 at 456W and 9.5A.
Can this 48V power supply run multiple 48V embedded or control devices from one centralized source?
It is intended for centralized constant voltage distribution where the connected devices all require 48V DC. The available 13A output current and 624W power budget make it a fit for multi-device 48V systems rather than a single small load.
How does the HRPG-600-48 compare with other HRPG-600 models?
Within the HRPG-600 group, the outputs are HRPG-600-3.3 at 396W, 3.3V, 120A; HRPG-600-5 at 600W, 5V, 120A; HRPG-600-7.5 at 600W, 7.5V, 80A; HRPG-600-12 at 636W, 12V, 53A; HRPG-600-15 at 645W, 15V, 43A; HRPG-600-24 at 648W, 24V, 27A; HRPG-600-36 at 630W, 36V, 17.5A; and this HRPG-600-48 at 624W, 48V, 13A. The main difference is the output voltage and matching current rating for each model.
Is the HRPG-600-48 meant for indoor or outdoor environments?
The listed operating temperature is -40°C to +70°C, so it is built for wide-temperature operation. The provided specs do not list an IP rating, so outdoor suitability depends on the enclosure or end equipment rather than the power supply alone.
