Mean Well HRPGG-600-7.5 Power Supply 600W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours

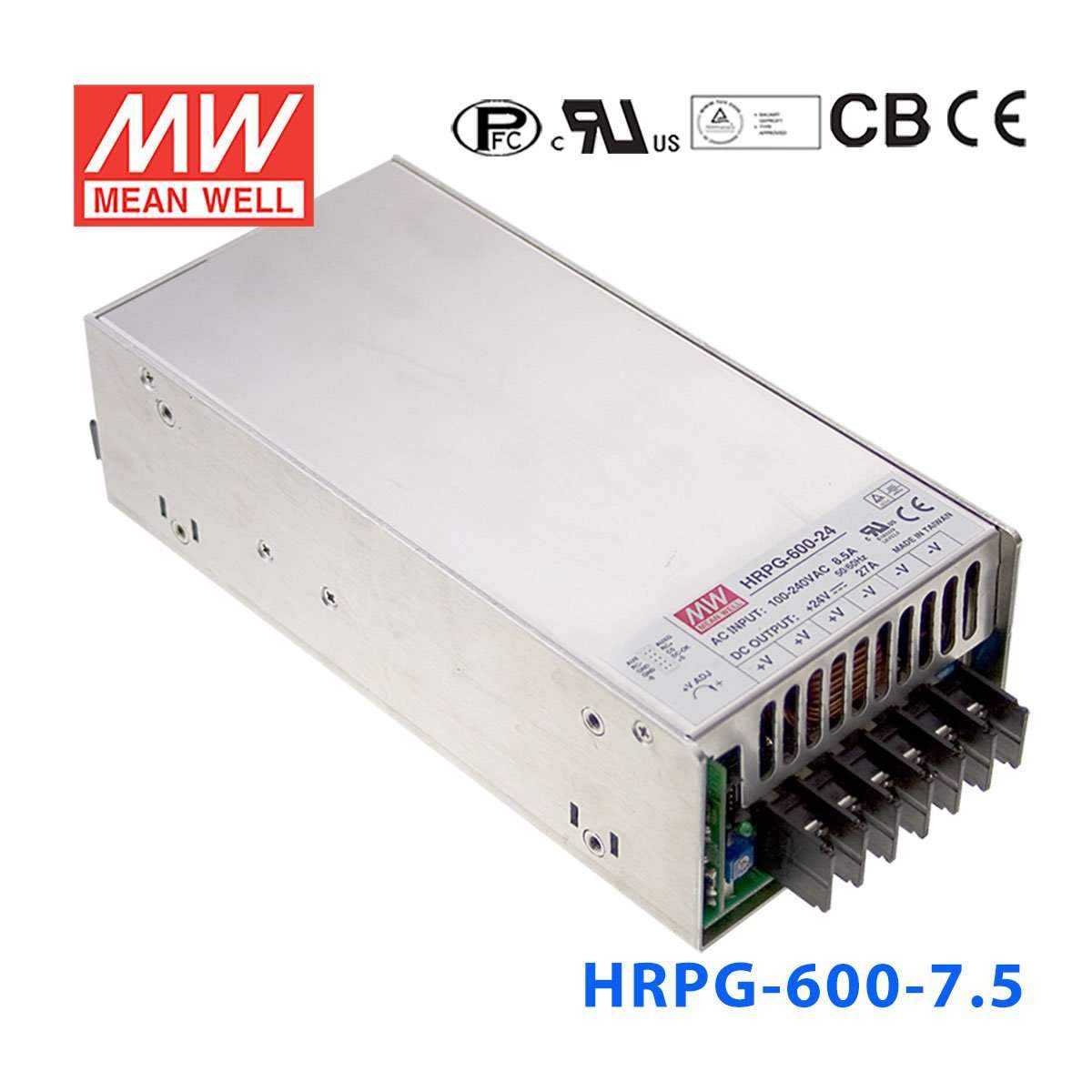

Mean Well HRPGG-600-7.5 Power Supply 600W 7.5V
The HRPG-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating600 Watt
-
Output Voltage7.5 Volt
-
Rated Current80 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.48 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-600-7.5 for industrial or embedded equipment that specifically requires 7.5V DC?
Yes, if the equipment is designed for constant voltage 7.5V input. This unit provides 600W at 7.5V with up to 80A, so it is aimed at higher-current 7.5V systems rather than light-duty electronics.
Is the HRPG-600-7.5 suitable for a centralized 7.5V source in a control or test system?
It is suitable when the entire system is built around a regulated 7.5V rail and the combined load stays within 600W and 80A. The wide 85-264VAC input range also supports use in equipment deployed across different AC supply conditions.
Can this model power multiple 7.5V boards or modules in one enclosure?
Yes, that is a reasonable use case for a constant voltage 7.5V supply with 80A available output current. Compared with the HRPG-150-7.5 at 150W and 20A, HRPG-200-7.5 at 200.3W and 26.7A, HRPG-300-7.5 at 300W and 40A, and HRPG-450-7.5 at 450W and 60A, this version is the highest-power 7.5V option in the listed series.
What is the difference between the HRPG-600-7.5 and the other HRPG-600 models?
The HRPG-600 family includes 3.3V at 396W and 120A, 5V at 600W and 120A, 7.5V at 600W and 80A, 12V at 636W and 53A, 15V at 645W and 43A, 24V at 648W and 27A, 36V at 630W and 17.5A, and 48V at 624W and 13A. The 7.5V model is the dedicated option for loads that need 7.5V while keeping higher available current than the higher-voltage versions.
Is the HRPG-600-7.5 intended for indoor use only, or can it handle wider environmental conditions?
The specified operating temperature is -40°C to +70°C, so it is built for broad temperature tolerance. No IP rating is listed in the provided specs, so exposed outdoor use should not be assumed without a protective enclosure.
