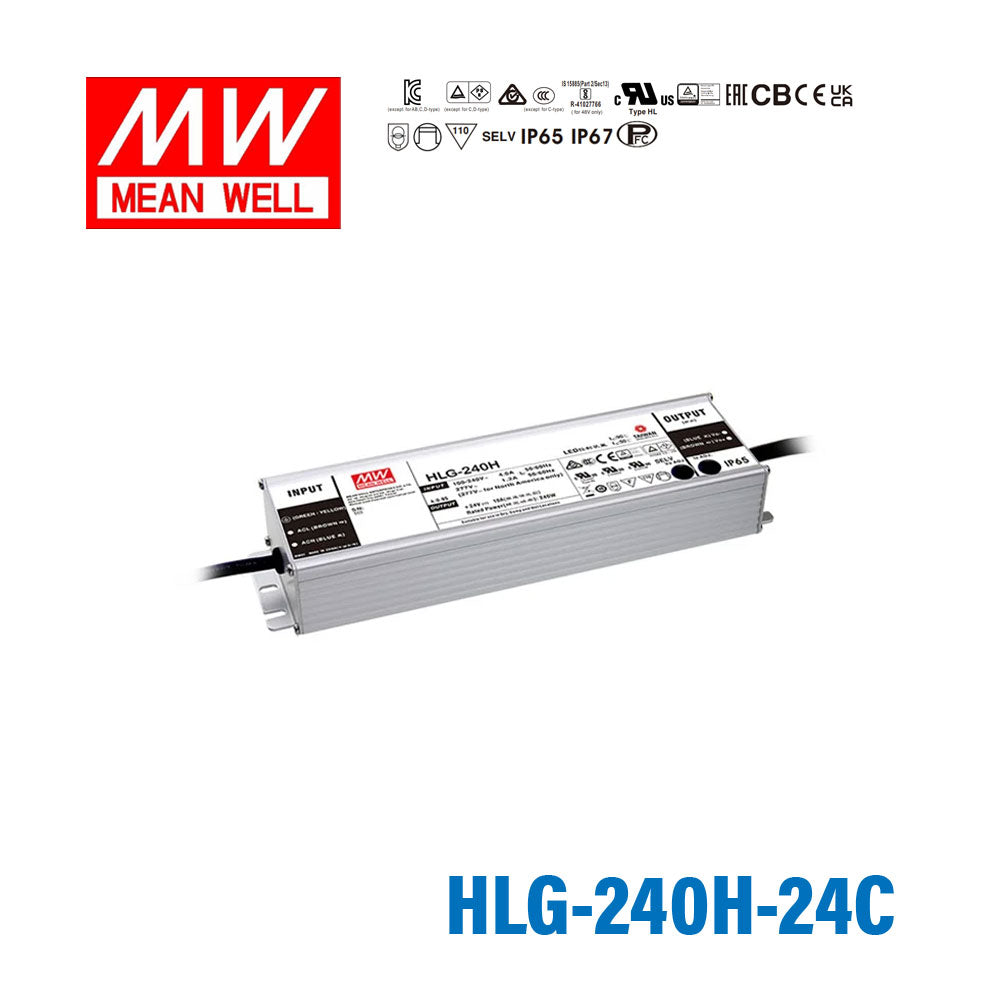

Mean Well HLG-240H-24C AC-DC Single output LED driver Mix mode 240W 10A
5.0 (3 reviews)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-240H-24C AC-DC Single output LED driver Mix mode 240W...
The HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HLG-240H-24C to power 24V LED strip installations indoors?
Yes. The HLG-240H-24C provides 240W at 24V (10A), which is ample for extensive 24V LED strip runs in commercial or residential interiors. Note that this model does not carry an IP65 or IP67 rating, so it is best suited for dry indoor environments or enclosed housings.
Is the HLG-240H-24C a good fit for 24V LED retail display or cabinet lighting?
Yes. At 240W and 24V, it can power a significant amount of display case, shelf, or cabinet LED lighting. The wide 100-305VAC input handles various commercial mains supplies, and its aluminium casing dissipates heat efficiently in enclosed fixtures.
Can the HLG-240H-24C drive 24V LED panels for commercial office lighting?
Yes. The 240W output at 24V is sufficient for multiple LED panel fixtures. Its mix-mode constant-current operation ensures stable drive for panels that require a regulated current source. The -40°C to +90°C operating range accommodates ceiling plenums and other warm enclosures.
How many meters of 24V LED strip can the HLG-240H-24C support?
Divide 240W by your strip's wattage per meter. For example, a strip drawing 19.2W/m would allow about 12.5 meters (240W / 19.2W per meter = 12.5m). Always verify your strip's rated power per meter and keep total consumption at or below 240W.
Does the HLG-240H-24C need to be installed in a dry location?
The HLG-240H-24C does not list an IP65 or IP67 waterproof rating, unlike the other HLG-240H-24 variants. It should be installed in a dry indoor location or inside a weatherproof enclosure if used outdoors. Its operating temperature range is -40°C to +90°C.
How does the HLG-240H-24C differ from the HLG-240H-24 and HLG-240H-24B?
All three deliver 240W at 24V / 10A. The base HLG-240H-24 has fixed output with IP67 waterproof rating. The -24B adds a dimming input while retaining IP67. The -24C is a mix-mode variant without a listed IP rating and carries ENEC certification instead of PSE/RCM/TUV, so it is best suited for indoor or enclosed installations.
