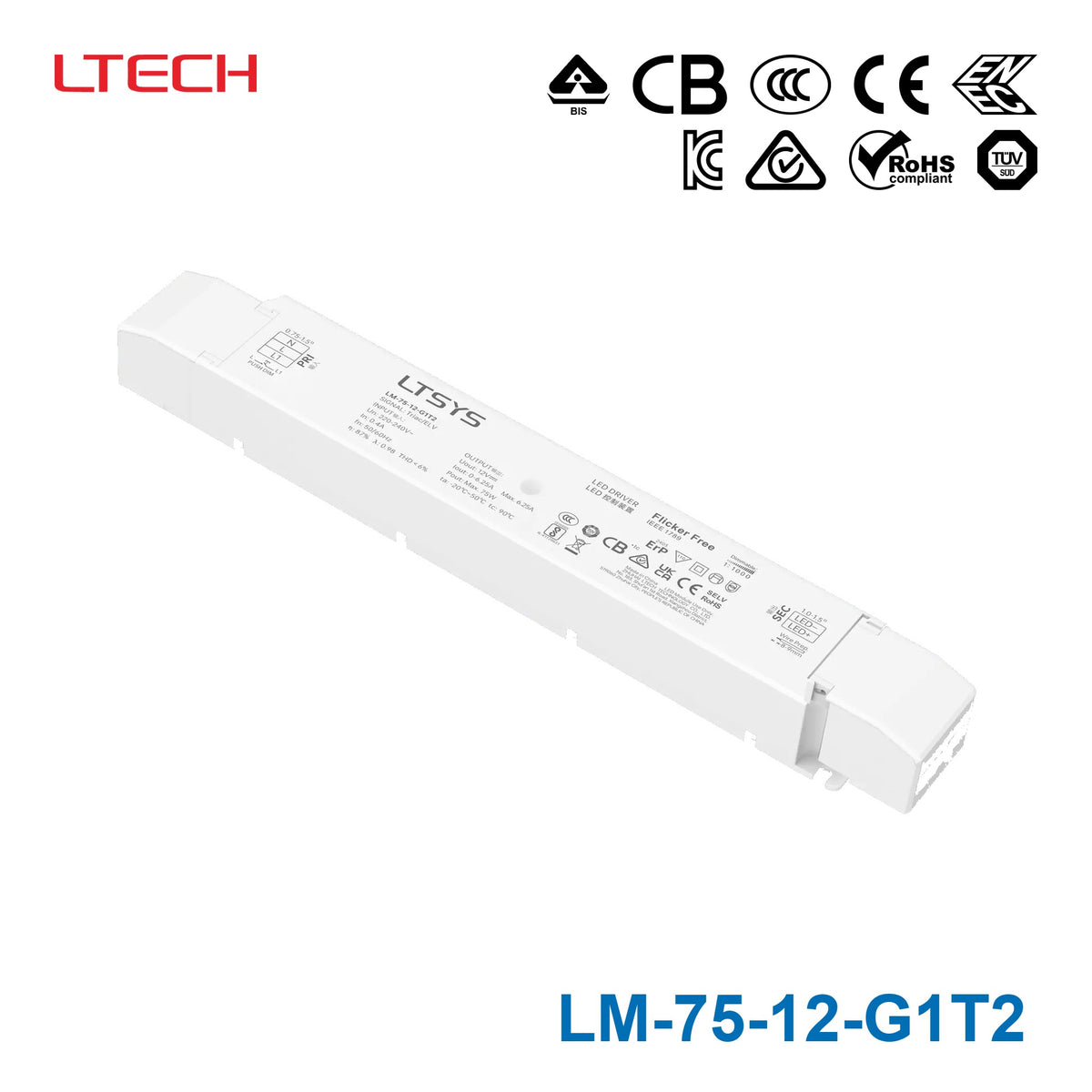

Ltech LM-75-12-G1T2 75W 12VDC CV Triac Driver 6.25A
The LM-75-12-G1T2 is a 75W constant-voltage LED driver with a 12V DC output. It is intended for 12V constant-voltage LED lighting applications where phase-cut dimming is required.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: AC phase cut (TRIAC)
- ✓Output voltage: 12V
- ✓Rated output current: 6.25A
- ✓Rated power: 75W
- ✓Ingress protection: IP20
- ✓Operating temperature: -20~+50°C
- ✓Certifications: BIS, CB, CCC, CE, ENEC, KC, RCM, ROHS, TUV
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CB,CCC,CE,ENEC,KC,RCM,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.77 lb
::specification::
Frequently Asked Questions
What type of LED load is the Ltech LM-75-12-G1T2 designed for?
The LM-75-12-G1T2 is a 75W constant-voltage LED driver with a 12V DC output. It is intended for 12V constant-voltage LED lighting applications where phase-cut dimming is required.
What dimming methods does this driver support?
This model supports leading-edge (Triac) and trailing-edge (ELV) phase-cut dimming, along with Push DIM/CCT control. It also offers a 0-100% dimming range and is specified for flicker-free performance to IEEE 1789.
How much power and current can the LM-75-12-G1T2 provide?
The LM-75-12-G1T2 is rated for 75W total output power at 12V DC. Its rated output current is 6.25A.
Is this a good choice for projects that need very low dimming levels?
Yes. Ltech states that this model supports dimming down to very low light levels, with LED start at 0.1% possible. That makes it suitable for applications where smooth low-end dimming performance is important.
What protection features are included in this driver?
This model includes overload, over-temperature, short-circuit, and over-voltage protection. According to the product details, it is designed to recover automatically after protection events.
What operating temperature range is specified for the LM-75-12-G1T2?
The specified ambient operating temperature range is -20°C to 50°C. This makes it suitable for indoor lighting environments that stay within that temperature window.
What warranty comes with this LED driver?
The LM-75-12-G1T2 includes a 5-year warranty. The product description also notes the use of a Rubycon capacitor as part of its long-life design.
