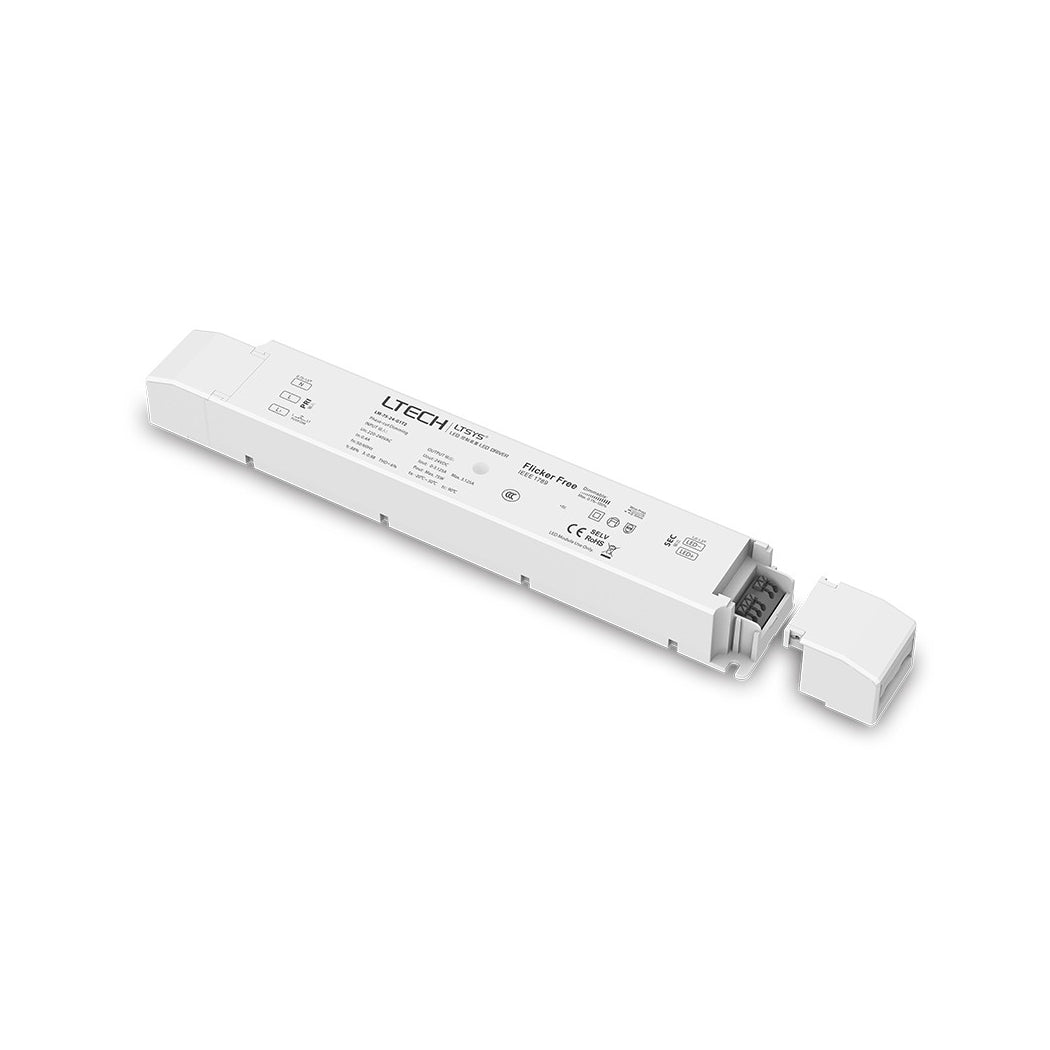

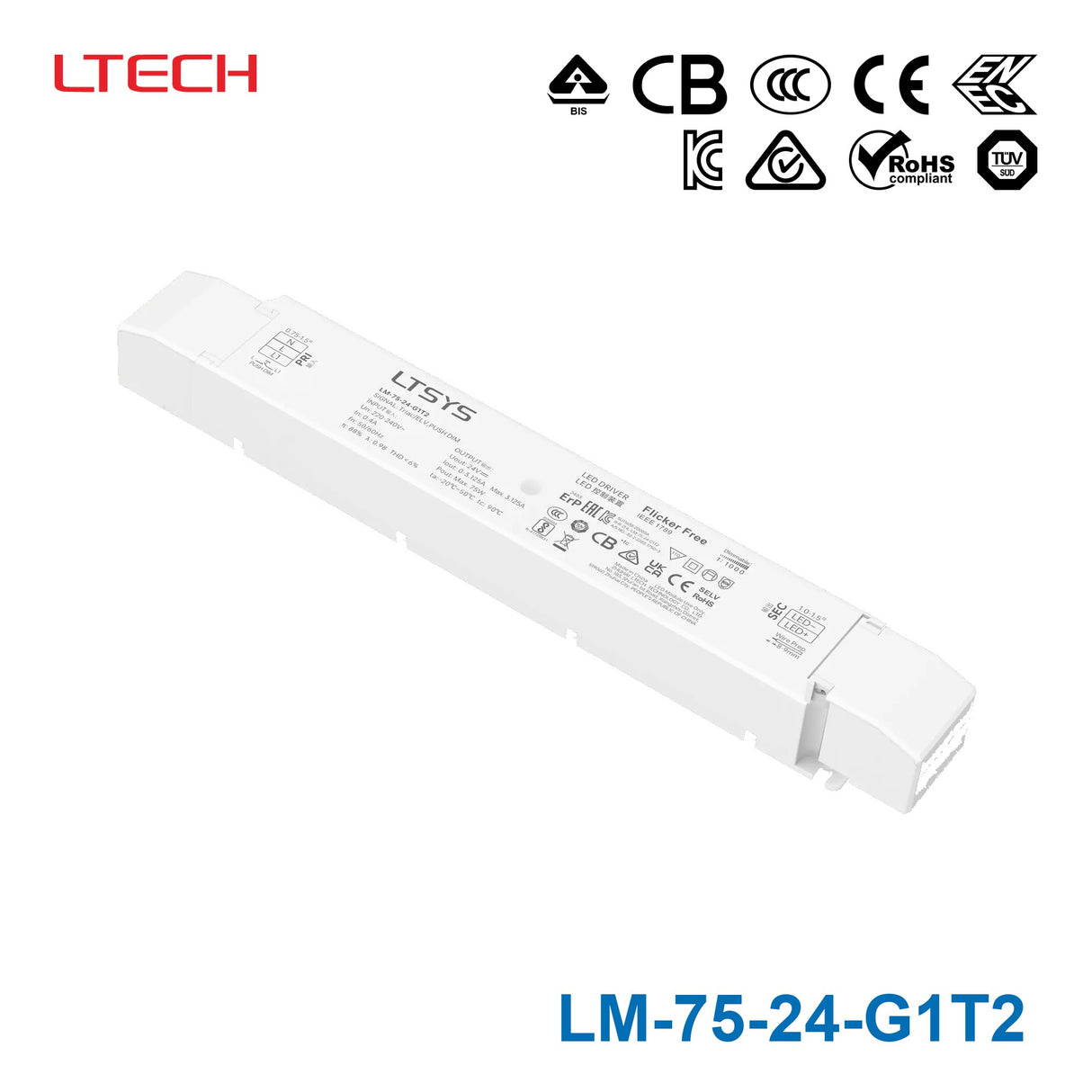

LTECH LM-75-24-G1T2 75W 24VDC CV Triac Driver

$70.30 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Leading edge (Triac)
  • Trailing edge (ELV) phase-cut and Push DIM/CCT.
  • Built-in SCM
  • dimming curve and smoothing time can be customized.
  • Dimming range: 0~100%
  • LED start at 0.1% possible.
  • 0-100% flicker-free (IEEE 1789 standard).
  • Innovative thermal management technology
  • intelligent power life protection.
  • Over load / Over temp. / Short circuit / Over voltage protection
  • recover automatically.
  • Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
  • 5 years warranty (Rubycon capacitor).

Specifications

  • Brand
    Ltech
  • Series
    Ltech Triac Series
  • Power Rating
    75 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.12 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    AC Phase Cut Dimming
  • Standards Met
    BIS,CB,CCC,CE,ENEC,KC,RCM,ROHS,TUV
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    11.54 in
  • Width
    1.69 in
  • Height
    1.18 in
  • Weight
    0.77 lb
