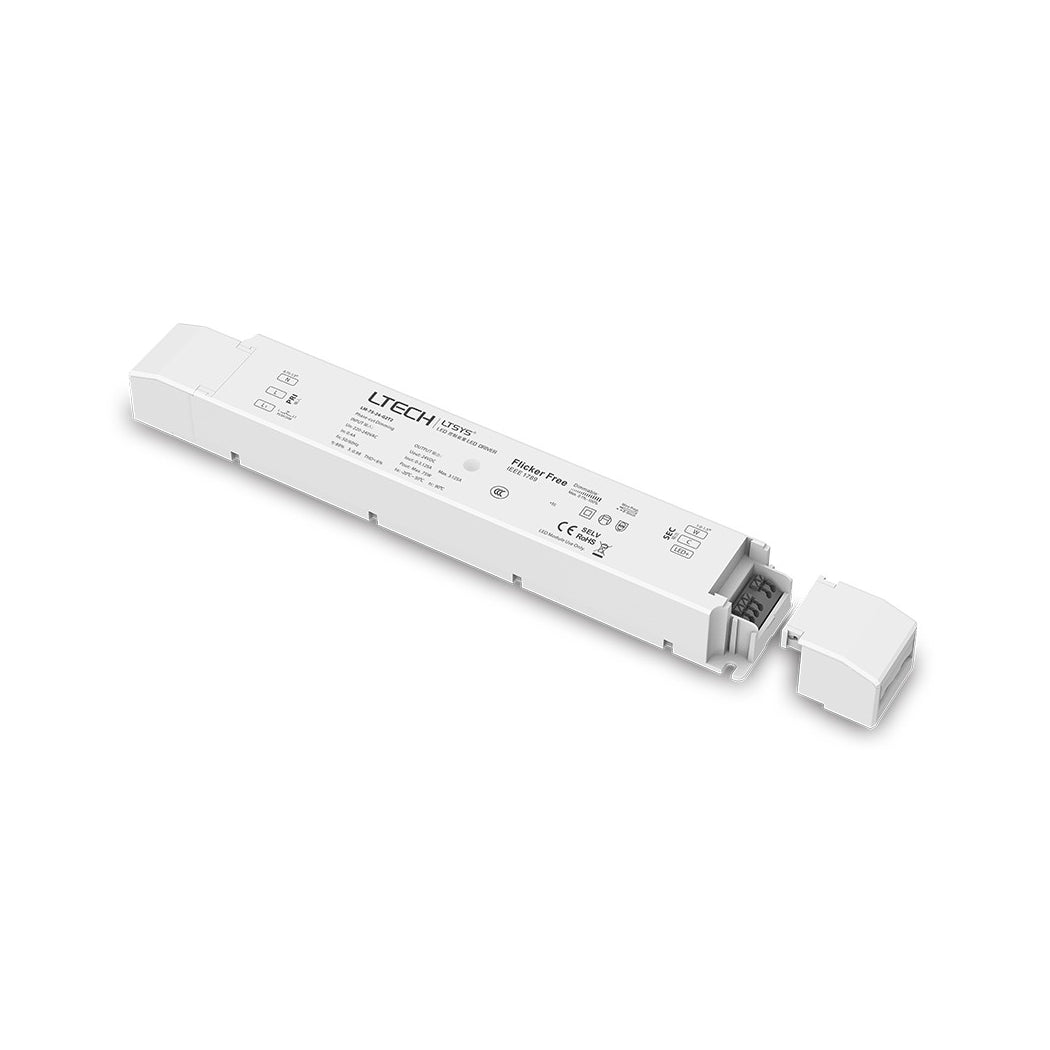

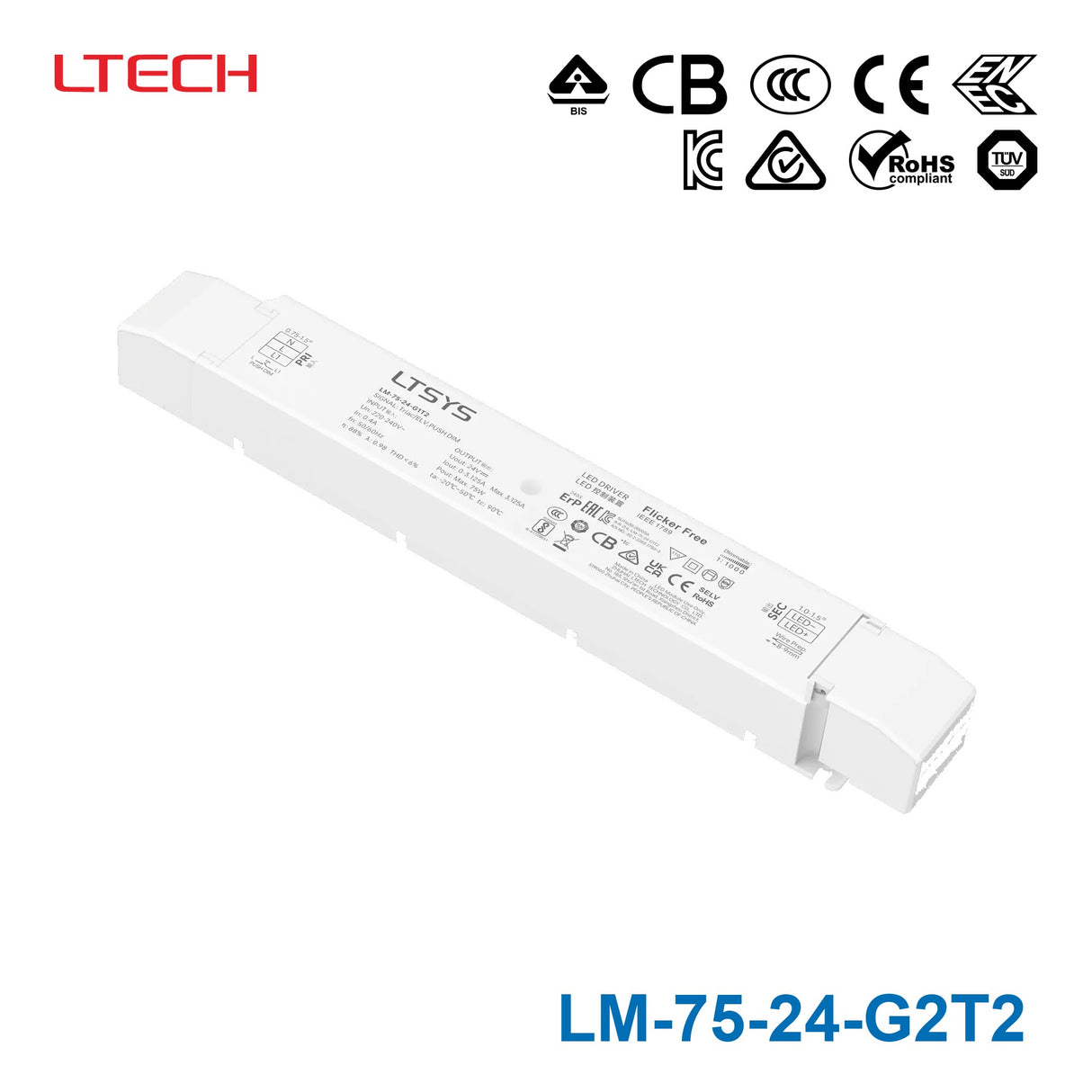

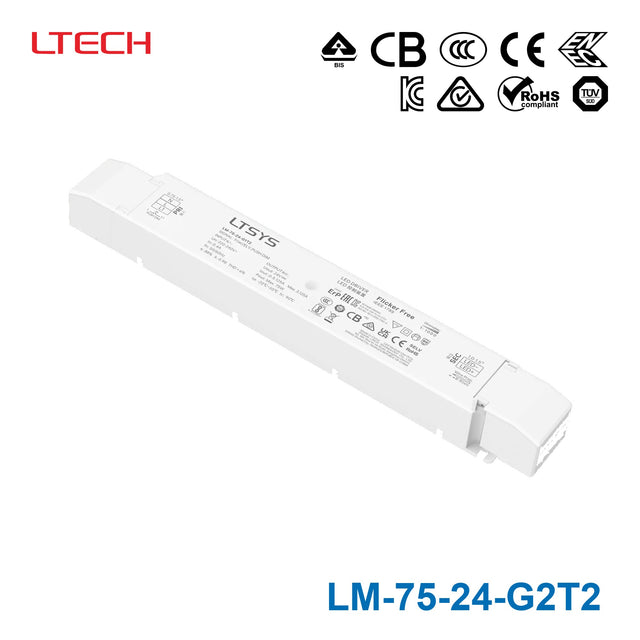

Ltech LM-75-24-G2T2 75W 24VDC CV Triac Driver
- Leading edge (Triac)
- Trailing edge (ELV) phase-cut and Push DIM/CCT.
- With soft-on and fade in function
- makes the human vision more comfortable.
- 2 independently SELV constant voltage output channels.
- Constant power design
- adjust brightness and color temperature synchronously.
- Dimming range: 0-100%
- LED start at 0.1% possible.
- 0-100% flicker-free
- High Frequency Exemption
- High Efficient driver: efficiency 88%
- PF>0.98
- THD<6%
- Innovative thermal management technology
- intelligent power life protection.
- Over load / Over temp. / Short circuit / Over voltage protection
- recover automatically.
- Suitable for internal lights application for I/II/III
- 5 years warranty (Rubycon capacitor).
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CB,CCC,CE,ENEC,KC,RCM,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.77 lb
::specification::
Frequently Asked Questions
What kind of lighting applications is the Ltech LM-75-24-G2T2 designed for?
The LM-75-24-G2T2 is a 75W constant-voltage LED driver for 24VDC lighting systems. It is suited to internal lighting applications where dimming and color temperature adjustment are needed from a single driver. Its dual independently SELV output channels make it relevant for tunable white constant-voltage LED setups.
What dimming methods does the LM-75-24-G2T2 support?
This model supports leading-edge Triac and trailing-edge ELV phase-cut dimming, along with Push DIM/CCT control. It is built for synchronous adjustment of brightness and color temperature. The stated dimming range is 0-100%, with LED start at 0.1% possible.
How is the LM-75-24-G2T2 different from a standard single-channel 24V LED driver?
A key difference is that this model provides 2 independently SELV constant-voltage output channels instead of a single output channel. It is also designed for both dimming and CCT adjustment, which makes it more suitable for tunable white applications than a basic fixed-output driver. This gives it broader use on projects that need coordinated light level and color temperature control.
What are the main electrical specifications of the LM-75-24-G2T2?
The LM-75-24-G2T2 is rated at 75W with a 24VDC output. Its rated current is 3.125A. The product description also states up to 88% efficiency, power factor greater than 0.98, and THD below 6%.
Is the LM-75-24-G2T2 suitable for demanding indoor environments?
This driver is specified for operation from -20°C to 50°C, which supports a wide range of indoor conditions. It also includes overload, over-temperature, short-circuit, and over-voltage protection with automatic recovery. These protections help support reliability in commercial and professional lighting applications.
Does the LM-75-24-G2T2 support smooth low-level dimming?
Yes, the product description states a 0-100% dimming range and notes that LED start at 0.1% is possible. It also specifies 0-100% flicker-free performance and includes soft-on and fade-in functionality. Those features make it better suited to spaces where smooth visual comfort matters.
What warranty is offered with the LM-75-24-G2T2?
This model includes a 5-year warranty. The product description specifically references a Rubycon capacitor in connection with that warranty period. For buyers comparing long-term value, that makes warranty support one of this driver's clearer differentiators.
