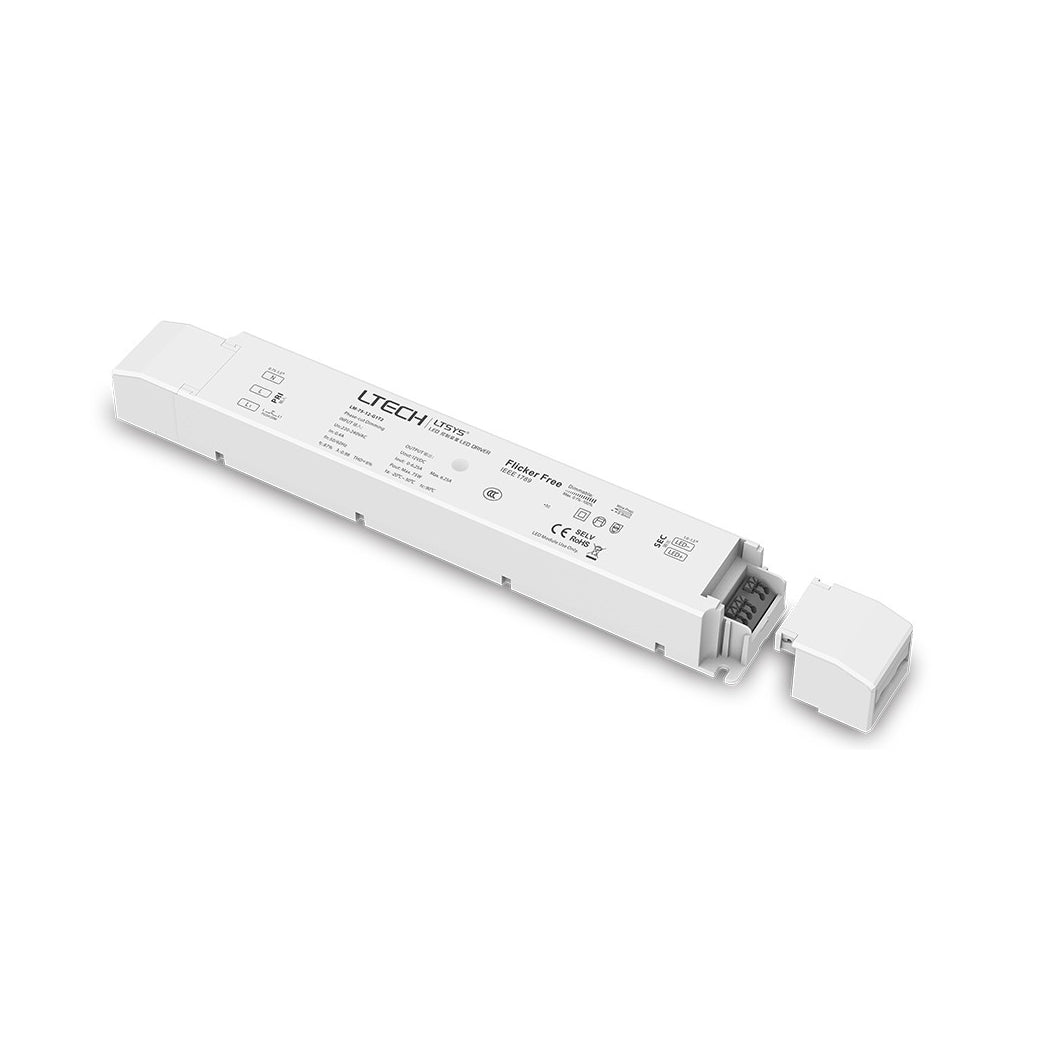

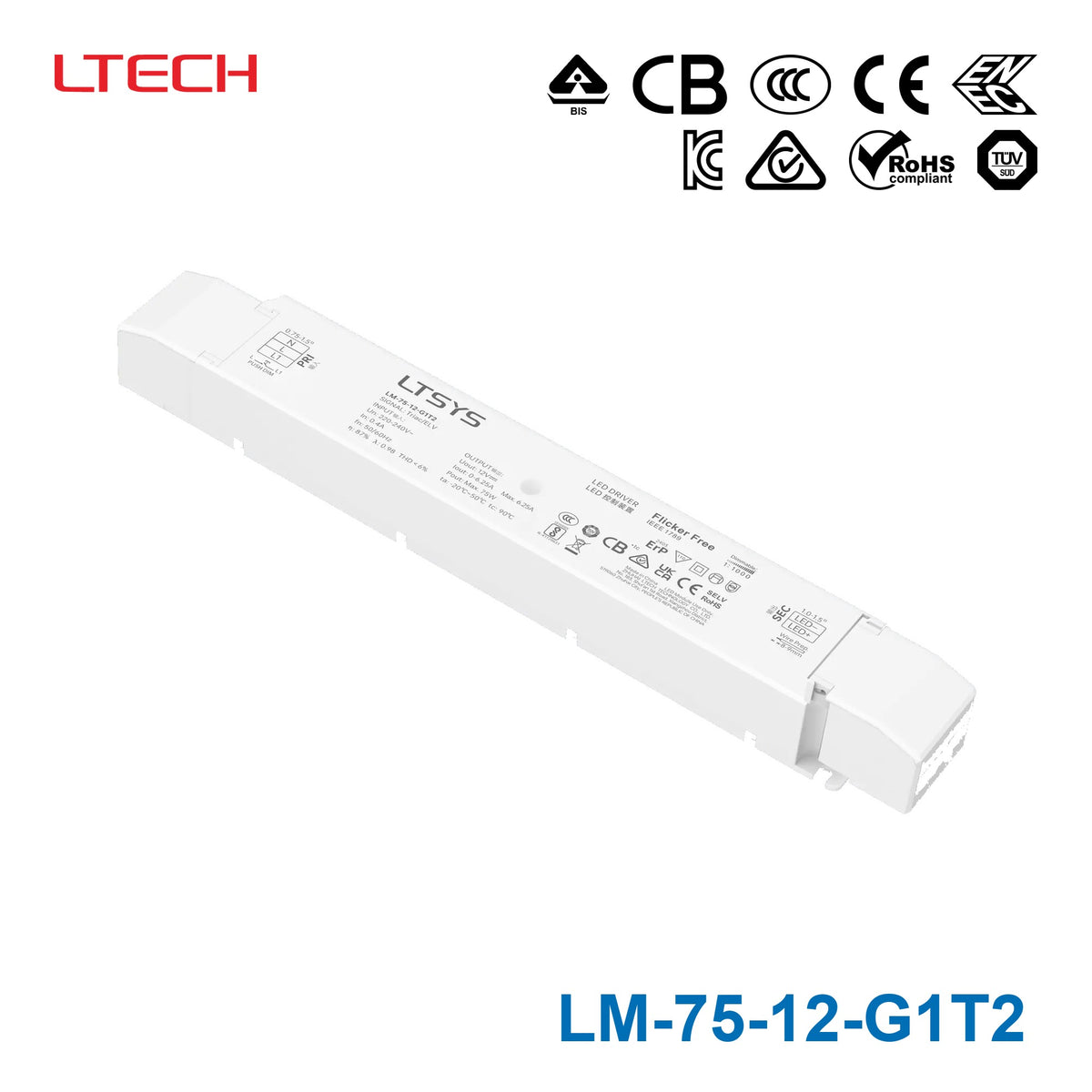

LTECH LM-75-12-G1T2 75W 12VDC CV Triac Driver
$70.30 USD
Unit price /
Unavailable
Description
Description
- Leading edge (Triac)
- Trailing edge (ELV) phase-cut and Push DIM/CCT.
- Built-in SCM
- dimming curve and smoothing time can be customized.
- Dimming range: 0~100%
- LED start at 0.1% possible.
- 0-100% flicker-free (IEEE 1789 standard).
- Innovative thermal management technology
- intelligent power life protection.
- Over load / Over temp. / Short circuit / Over voltage protection
- recover automatically.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CB,CCC,CE,ENEC,KC,RCM,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.77 lb
