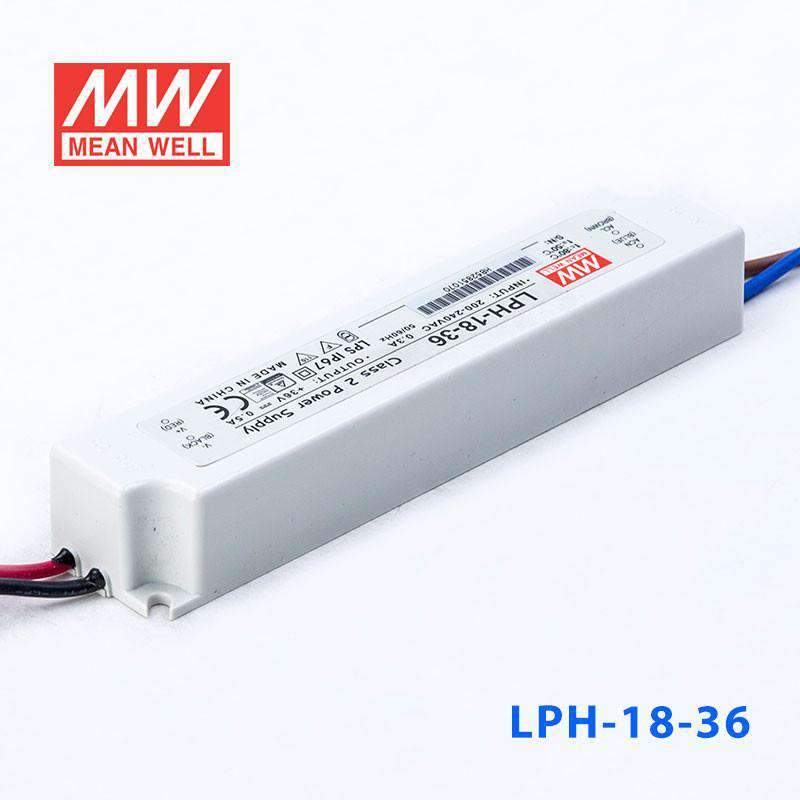

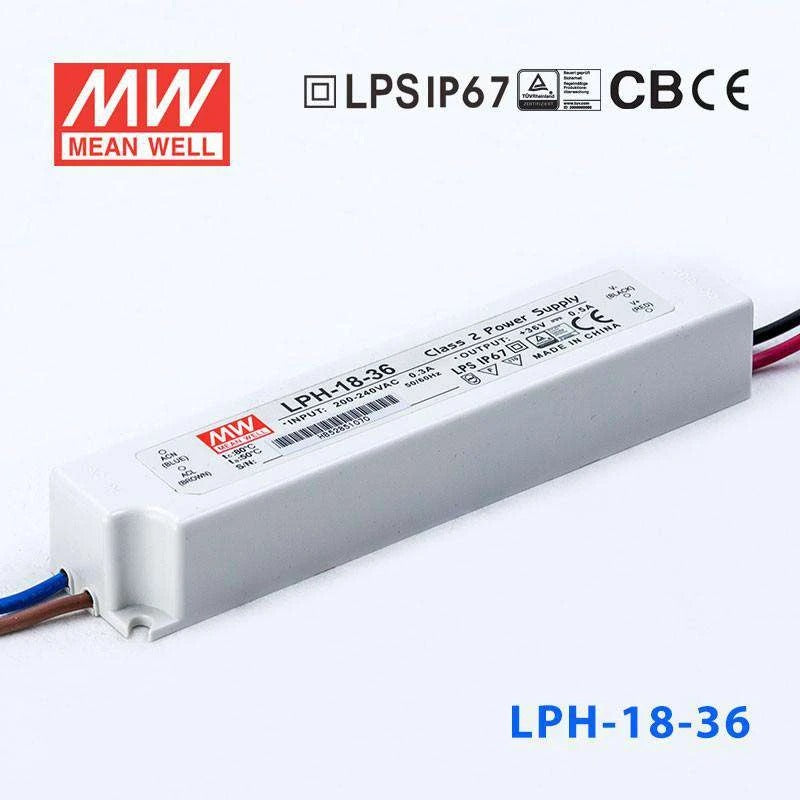

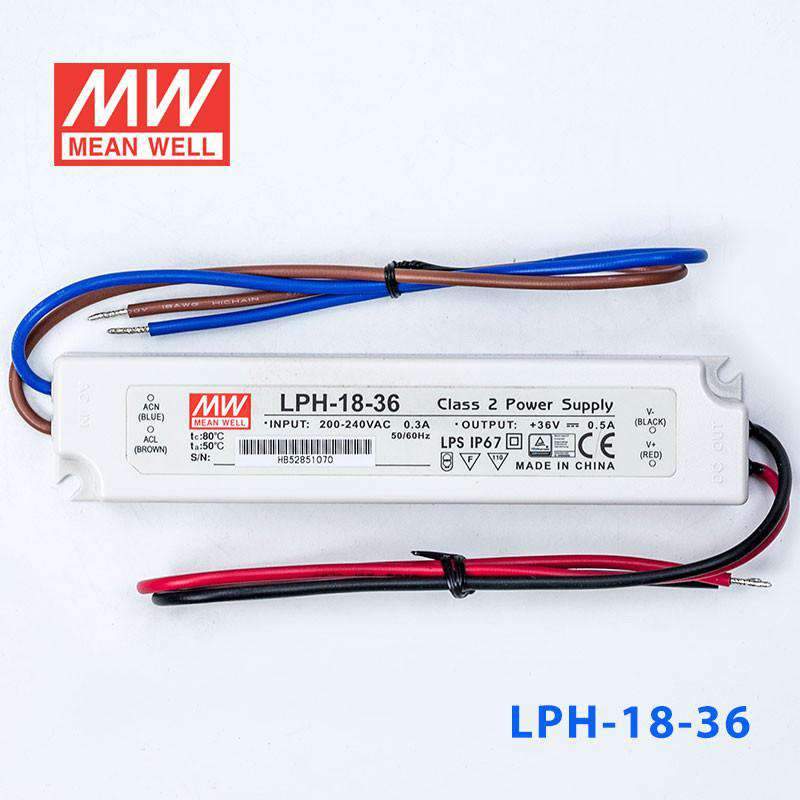

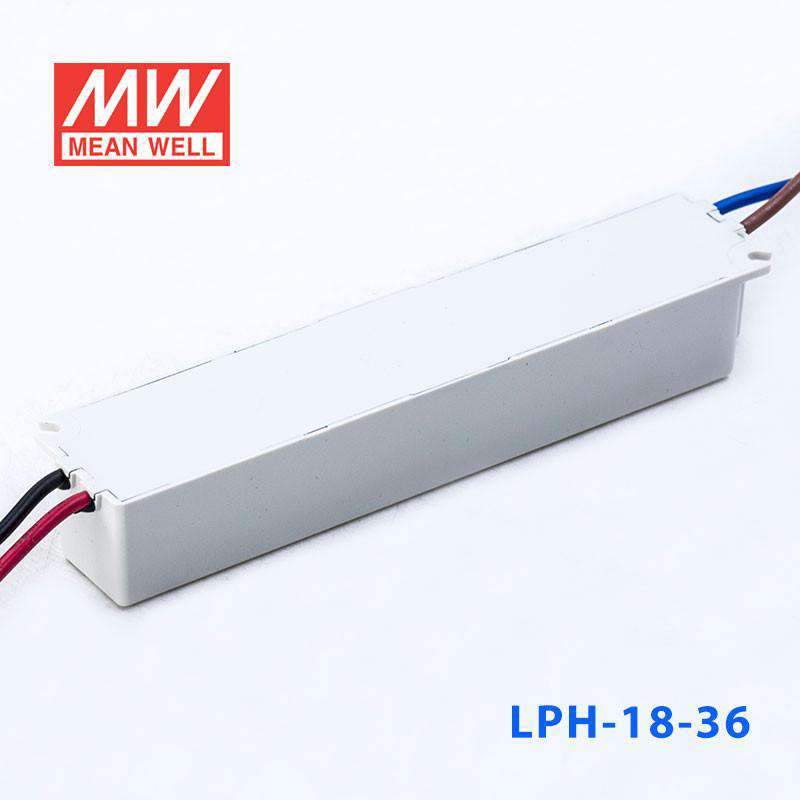

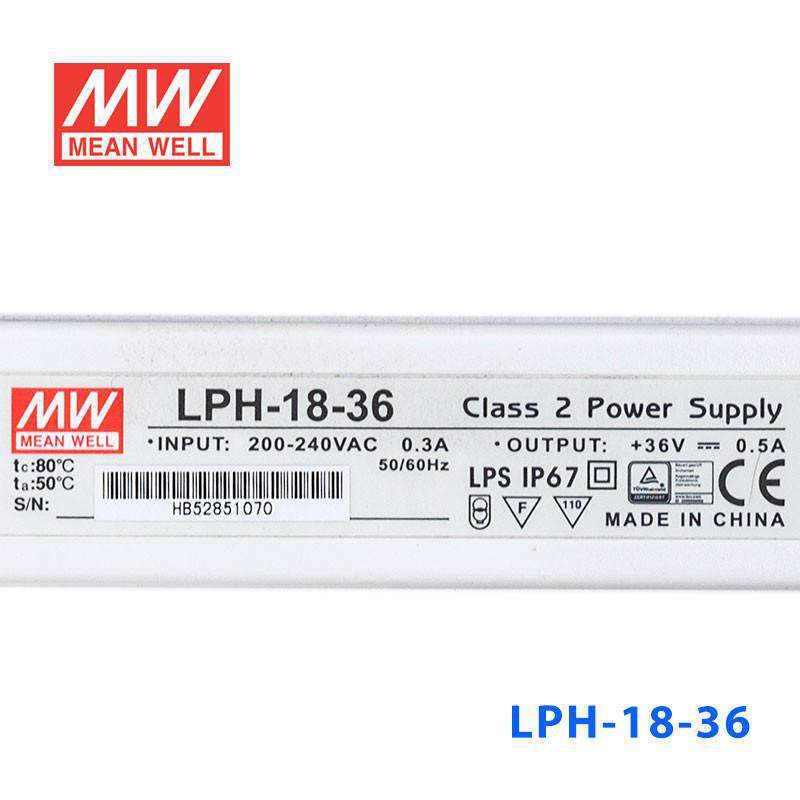

Mean Well LPH-18-36 Power Supply 18W 36V
The LPH-18 is a 18W Mean Well power converter (input range: 180~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: TUV EN60950-1, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating18 Watt
-
Output Voltage36 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length5.51 in
-
Width1.18 in
-
Height0.79 in
-
Weight0.39 lb
::specification::
Frequently Asked Questions
Can I use the LPH-18-36 for 36V LED strip or linear lighting?
Yes, this is a 36V constant voltage LED driver for 36V lighting loads. Keep the total load within 18W and 0.5A.
Is the LPH-18-36 suitable for small 36V signage or display lighting?
Yes, it can support compact 36V signage or display lighting that requires constant voltage output. Its 18W rating makes it more suitable for smaller lighting loads than higher-power drivers.
Can the LPH-18-36 be used outdoors or in wet conditions?
Yes, the unit is rated IP67 waterproof, so it is intended for outdoor and damp-location use. It is specified for operation from -30°C to +70°C.
How much 36V LED strip can this driver support?
Maximum strip length is 18W divided by your strip's rated watts per meter. Check your strip rated power per meter and make sure it is a 36V constant voltage strip.
What are the differences across the LPH-18 family?
The specified LPH-18 models are LPH-18-12 at 18W, 12V, 1.5A; LPH-18-24 at 18W, 24V, 0.75A; and LPH-18-36 at 18W, 36V, 0.5A. All share the same 18W power rating, but voltage rises as output current decreases.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPH-18 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPH-18-24 Power Supply 18W 24V | 18W | 24V | 0.75A | IP67 | $8.46 | View |
| Mean Well LPH-18-12 Power Supply 18W 12V | 18W | 12V | 1.5A | IP67 | $8.46 | View |
