Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

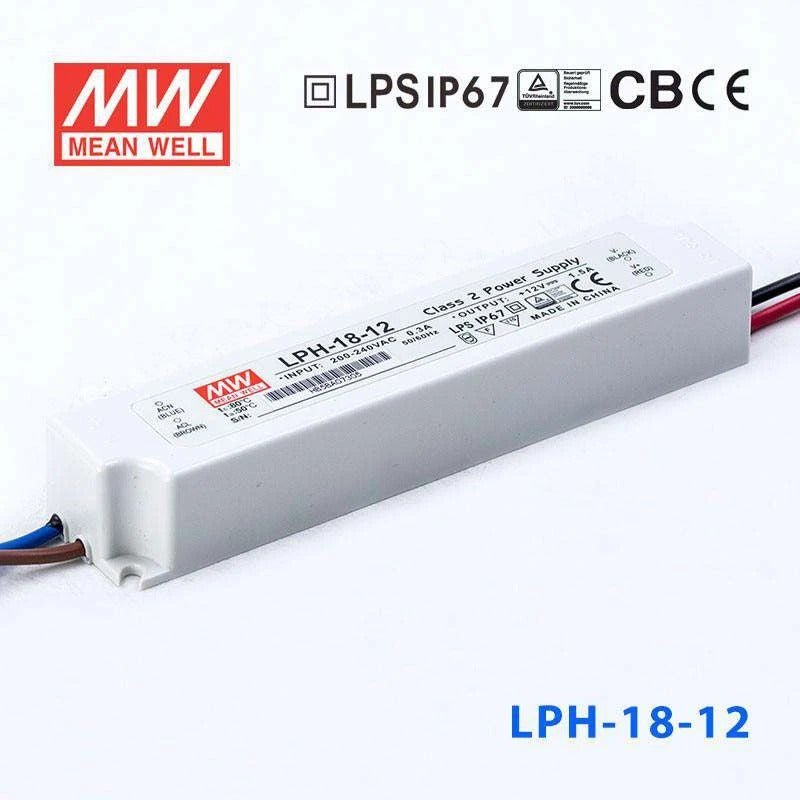

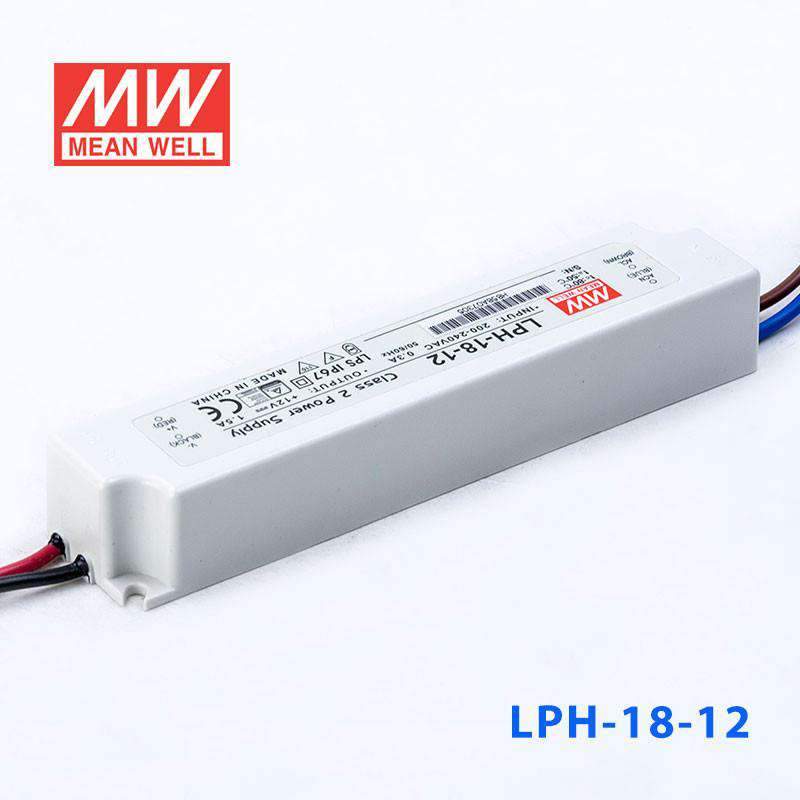

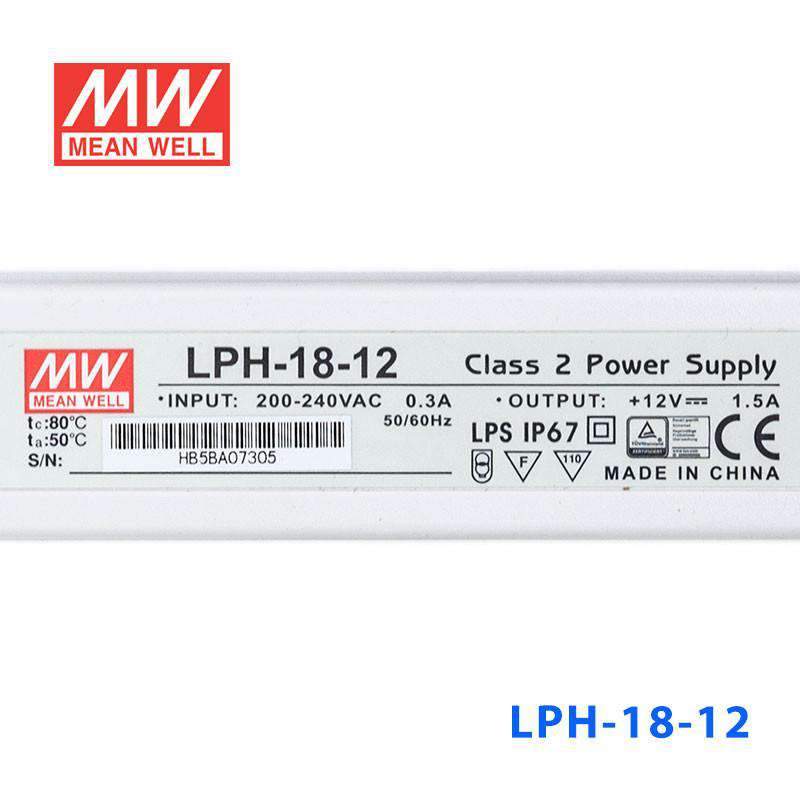

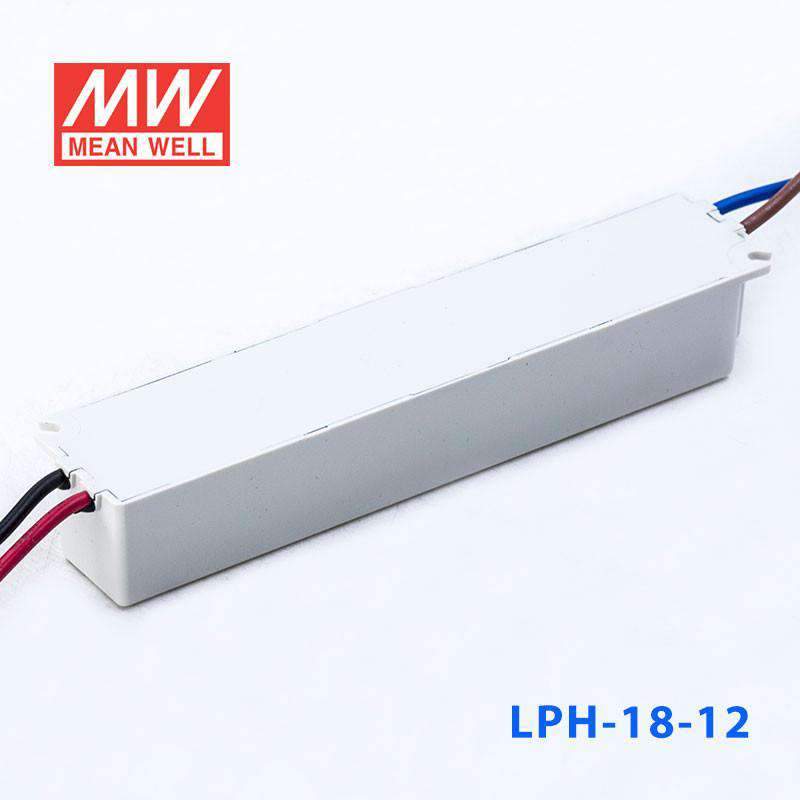

Mean Well LPH-18-12 Power Supply 18W 12V
$8.46 USD
Unit price /
Unavailable
Description
Description
Features
| 180~264VAC input only |
| Fully encapsulated with IP67 level |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Constant voltage design (C.V. mode) |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays |
| 2 years warranty |
General Specification
| AC input voltage range | 180~264VAC |
| AC inrush current | Cold start 50A at 230VAC |
| Overload Range | >105% |
| Protection Type | Hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | TUV EN60950-1, EN61347-1, EN61347-2-13 approved for LPH-18 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated,18AWGx2C (30cm) |
| Connection Output | UL rated,18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 140x 30x 22 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating18 Watt
-
Output Voltage12 Volt
-
Rated Current1.5 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length5.51 in
-
Width1.18 in
-
Height0.79 in
-
Weight0.39 lb
