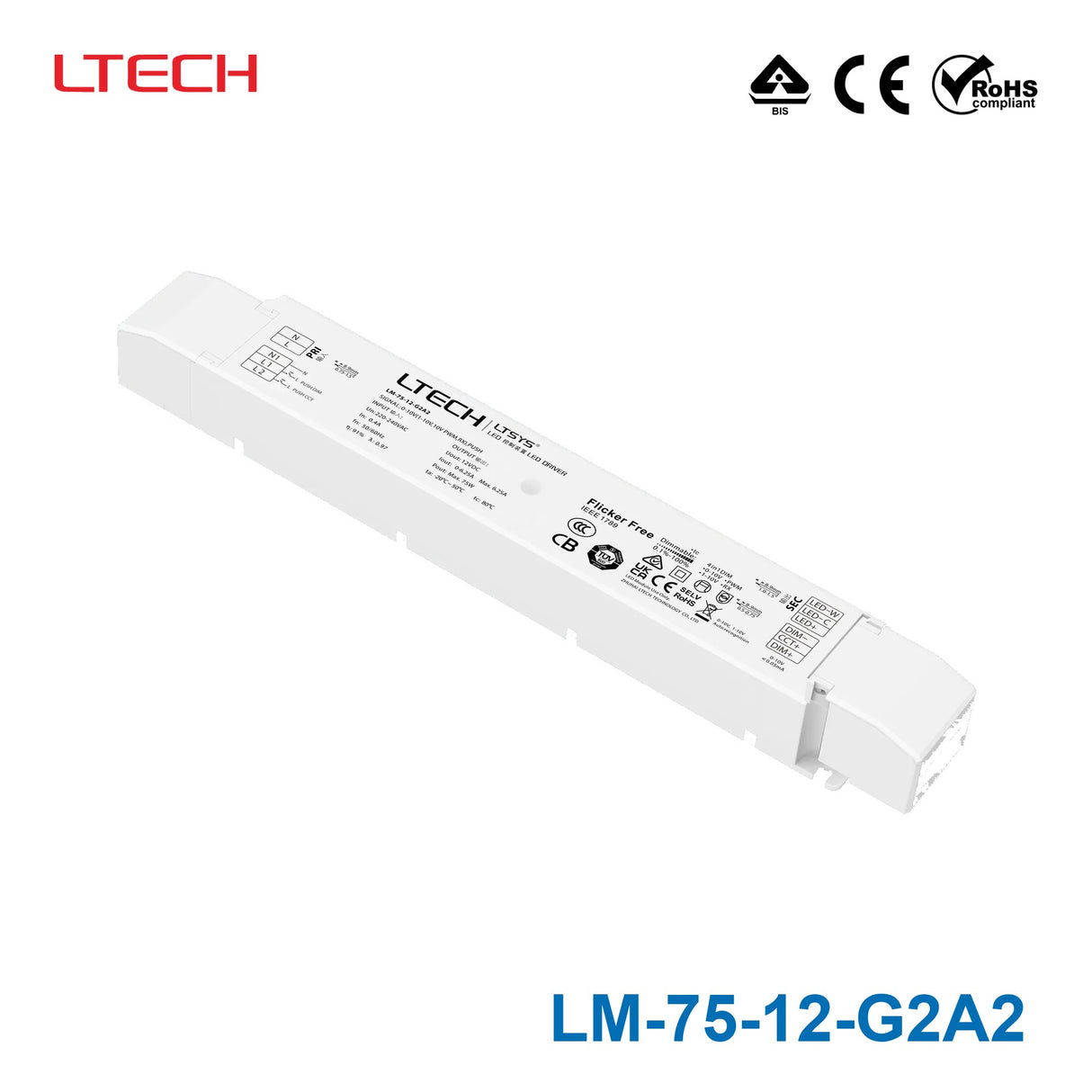

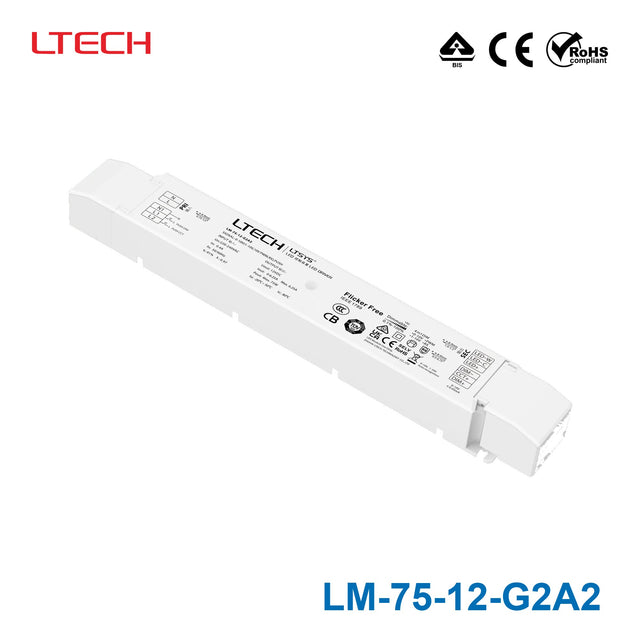

Ltech LM-75-12-G2A2 75W 12VDC CV LED Driver - 0/1-10Vdimmable 6.25A

• Dimming interface: 0-10V (1-10V/10V PWM/RX)
• Push DIM/CCT
• 0-10V DIM and color temperature adjusting driver
• 2 independently SELV constant voltage output channels.
• Constant power design
• adjust different color temperature to keep the same brightness.
• Dimming range from 0-100%
• LED start at 0.1%possible.
• Color temperature adjusting range: 2700-6500K
• Automatic recognition of 0-10V
• 1-10V input signal.
• 0~100% flicker-free
• achieve the level of exemption assessment.
• Over-heat / Over voltage / Over load / Short circuit protection
• recover automatically.
• Full protective plastic housing.
• Compliant with Safety Extra Low Voltage standard.
• Suitable for indoor I/II/III type lamps application.

• Brand
  Ltech
• Series
  Ltech 0/1-10V Series
• Power Rating
  75 Watt
• Output Voltage
  12 Volt
• Rated Current
  6.25 Ampere
• Input Voltage
  220V~240V
• No of Output
  1
• Dimming Control
  0-10V,1-10V
• Standards Met
  BIS,CE,ROHS
• Operation Mode
  Constant Voltage
• Operating Temperature
  -20°C~50°C
• Warranty
  5 Year
• Length
  11.54 in
• Width
  1.69 in
• Height
  1.18 in
• Weight
  0.66 lb
