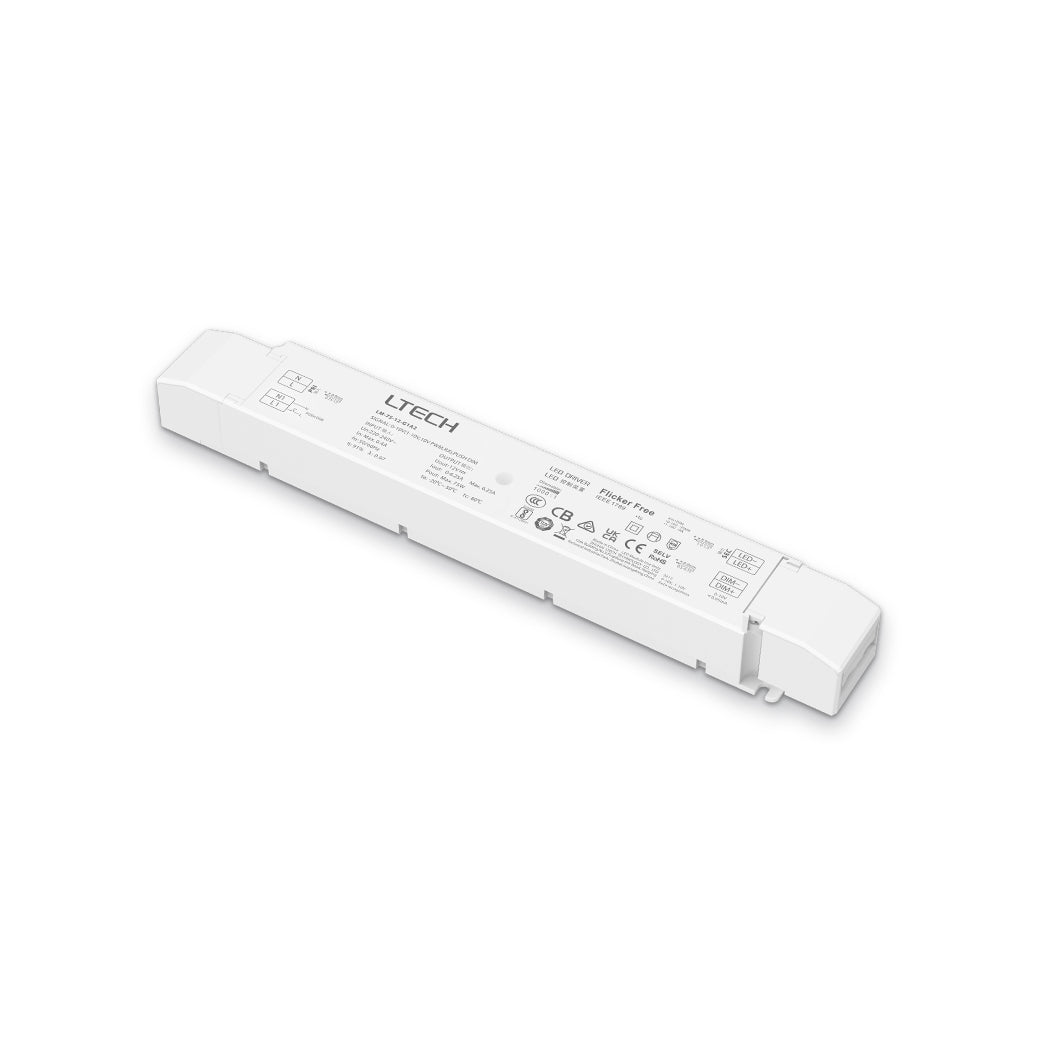

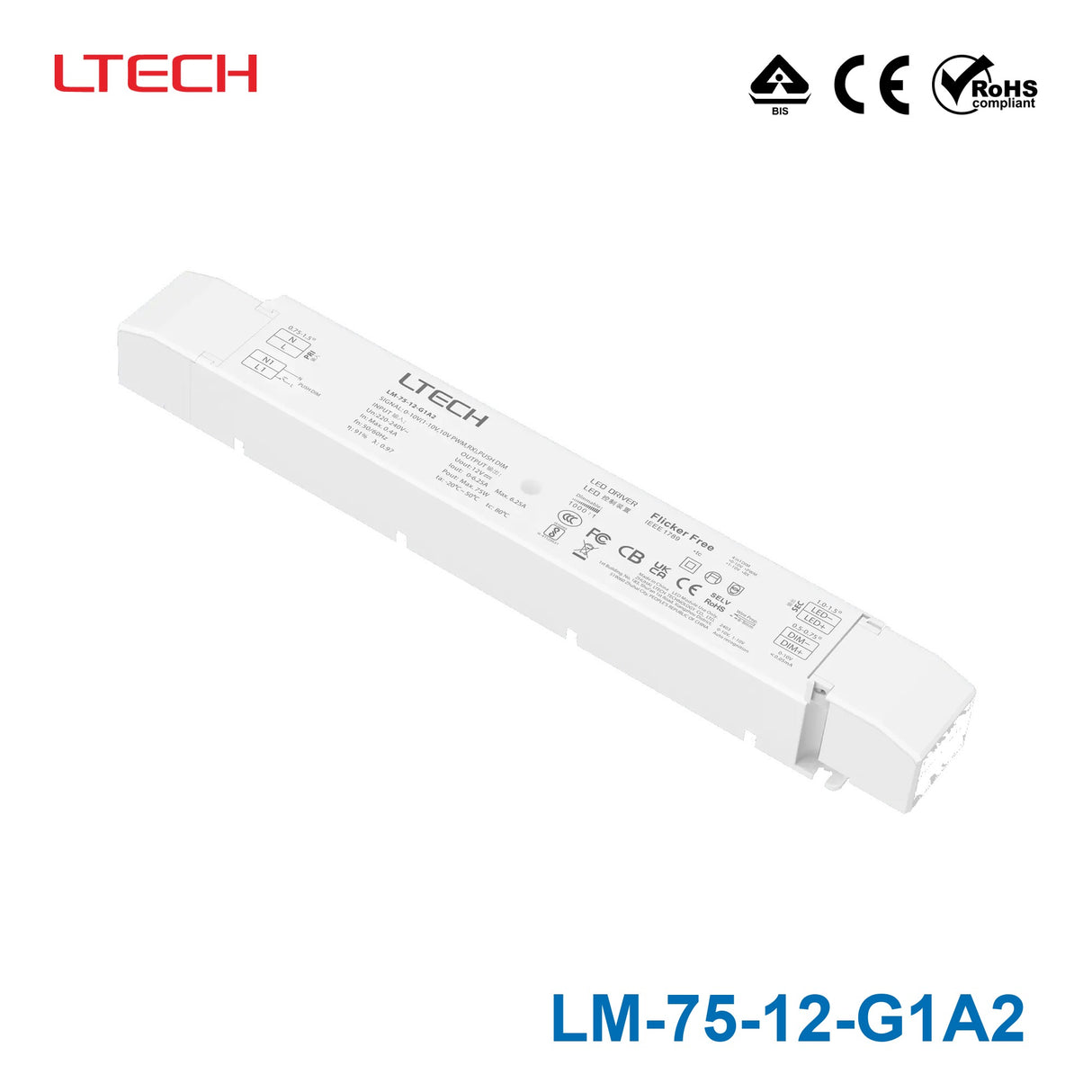

Ltech LM-75-12-G1A2 75W 12VDC CV LED Driver - 0/1-10Vdimmable
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Push Dim
- Withsoft-onandfadeinfunction
- visualmorecomfortable
- Automatic recognition of 0-10V
- 1-10V input signal
- Dimming range:0~100%
- LED start at 0.1% possible.
- 0-100% flicker-free
- High Frequency Exemption.
- Over-heat / Over voltage / Over load / Short circuit protection
- recover automatically
- Full protective plastic housing
- Compliant with Safety Extra Low Voltage standard
- Suitable for indoor lamps application for I/II/III
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming Control0-10V,1-10V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What kind of LED applications is the Ltech LM-75-12-G1A2 designed for?
The LM-75-12-G1A2 is a constant-voltage 12VDC LED driver intended for indoor lighting applications. Its 75W output makes it suitable for commercial and professional LED installations that require stable 12V power with dimming support.
Does this model support 0-10V dimming?
Yes. The LM-75-12-G1A2 supports both 0-10V and 1-10V dimming and automatically recognizes the input signal type. It also lists a dimming range of 0 to 100%, with LED startup possible at 0.1%.
What are the main electrical ratings of the LM-75-12-G1A2?
This model is rated at 75W with a 12VDC output and a rated current of 6.25A. Those specifications make it a constant-voltage driver for 12V LED products that need higher output capacity than smaller drivers.
Is the LM-75-12-G1A2 intended for indoor or outdoor use?
Based on the provided product information, this model is suitable for indoor lamps applications. If your project is exposed to weather, washdown, or other harsh conditions, you should confirm that the environment matches the product's intended indoor use.
What protection features are included in this LED driver?
The LM-75-12-G1A2 includes over-heat, over-voltage, over-load, and short-circuit protection. The description states that it recovers automatically, which helps support reliable operation in demanding lighting applications.
How does this model compare with a non-dimmable 12V power supply?
The LM-75-12-G1A2 is differentiated by its built-in 0-10V and 1-10V dimming capability, along with push dim support and flicker-free dimming from 0 to 100%. A basic non-dimmable 12V power supply would not offer those lighting control features.
What operating temperature range is specified for the LM-75-12-G1A2?
This model is specified for use from -20°C to 50°C. That range makes it appropriate for many indoor commercial and architectural lighting environments, provided the installation stays within those ambient conditions.
Is this LED driver compatible with 12V constant-voltage LED systems?
Yes. The LM-75-12-G1A2 is a 12VDC constant-voltage LED driver, so it is intended for 12V constant-voltage LED applications. Buyers should match the driver to products that require 12V constant-voltage power rather than constant-current operation.
