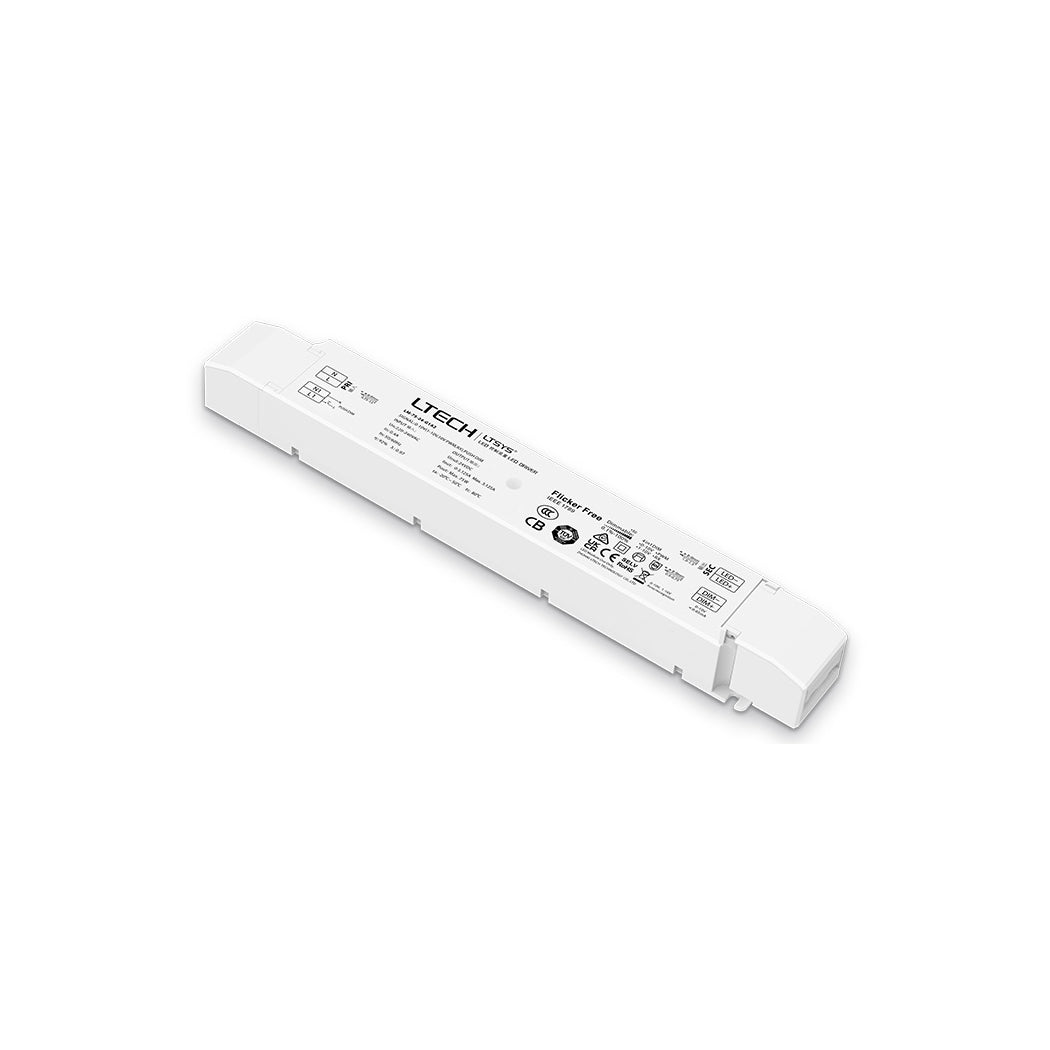

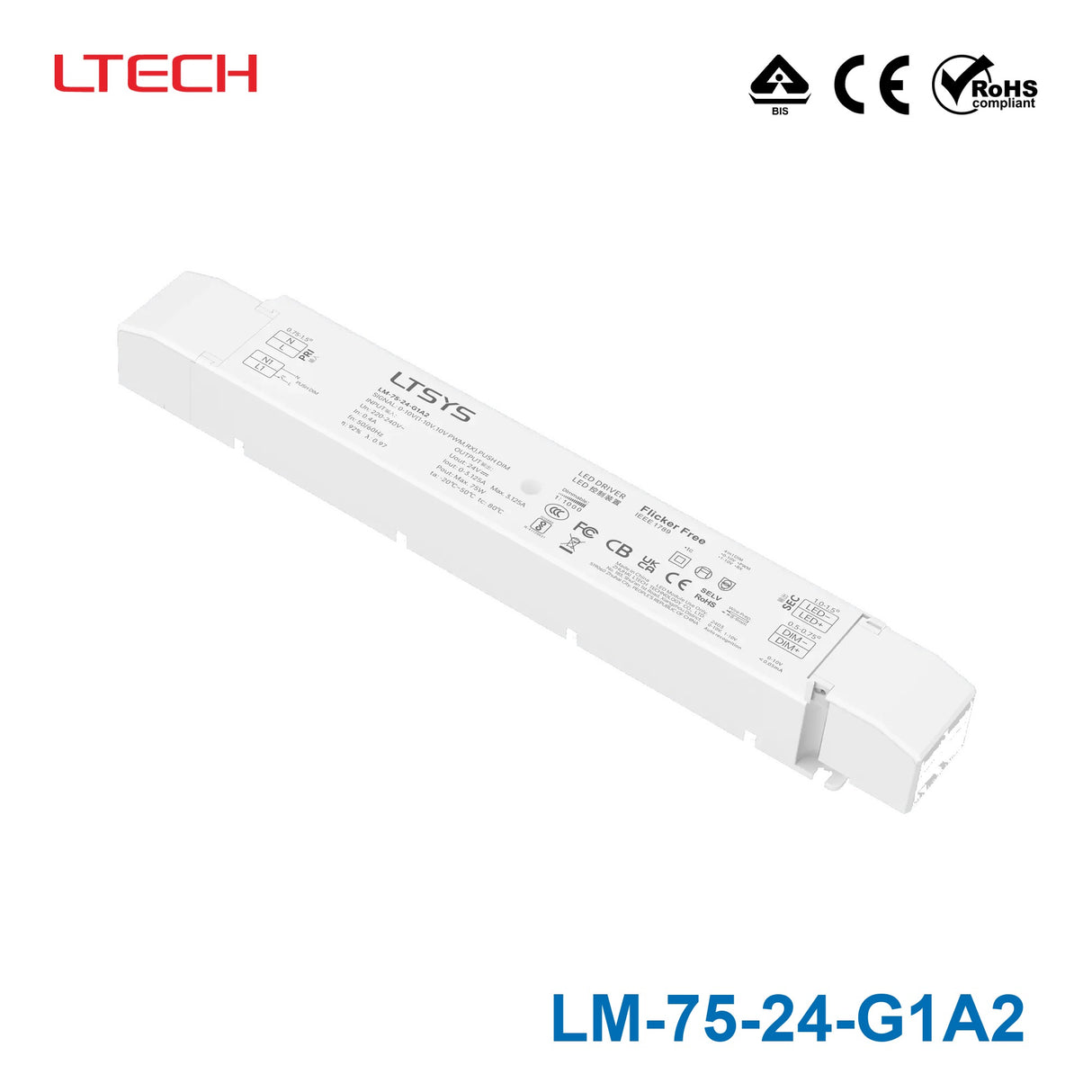

Ltech LM-75-24-G1A2 75W 24VDC CV LED Driver - 0/1-10Vdimmable
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Push Dim
- Withsoft-onandfadeinfunction
- visualmorecomfortable
- Automatic recognition of 0-10V
- 1-10V input signal
- Dimming range:0~100%
- LED start at 0.1% possible.
- 0-100% flicker-free
- High Frequency Exemption.
- Over-heat / Over voltage / Over load / Short circuit protection
- recover automatically
- Full protective plastic housing
- Compliant with Safety Extra Low Voltage standard
- Suitable for indoor lamps application for I/II/III
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming Control0-10V,1-10V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What is the Ltech LM-75-24-G1A2 designed for?
The Ltech LM-75-24-G1A2 is a constant-voltage 24VDC LED driver for indoor lighting applications. It is intended for use where a 24V constant-voltage power source and analog dimming control are required.
What are the main electrical specifications of this model?
This model is rated at 75W with a 24VDC output and a rated current of 3.12A. Those specifications make it suitable for 24V constant-voltage LED loads that fit within its power capacity.
What dimming methods does the LM-75-24-G1A2 support?
The LM-75-24-G1A2 supports 0-10V and 1-10V dimming control, and the product description also lists 10V PWM, RX, and Push Dim support. It features automatic recognition of 0-10V and 1-10V input signals for flexible control compatibility.
How smooth is the dimming performance on this LED driver?
According to the product details, the dimming range is 0 to 100 percent, with LED start at 0.1 percent possible. The unit is described as flicker-free across 0 to 100 percent dimming and includes soft-on and fade-in behavior for more comfortable visual transitions.
Is this LED driver suitable for indoor commercial environments?
Yes, this model is described as suitable for indoor lamps and has a full protective plastic housing. It also includes over-heat, over-voltage, over-load, and short-circuit protection with automatic recovery, which is relevant for demanding commercial lighting use.
What operating temperature range does this model support?
The specified operating temperature range is -20°C to 50°C. That makes it appropriate for indoor environments that stay within those limits.
What distinguishes the LM-75-24-G1A2 from a non-dimmable 24V power supply?
This model combines a 24V constant-voltage output with integrated 0-10V and 1-10V dimming support, which differentiates it from a basic fixed-output power supply. It is intended for applications where controllable light output is needed rather than simple constant power only.
What warranty is offered for the Ltech LM-75-24-G1A2?
The listed warranty period for this model is 5 years. For B2B buyers, that can be a useful indicator when evaluating lifecycle expectations for indoor LED driver projects.
