Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

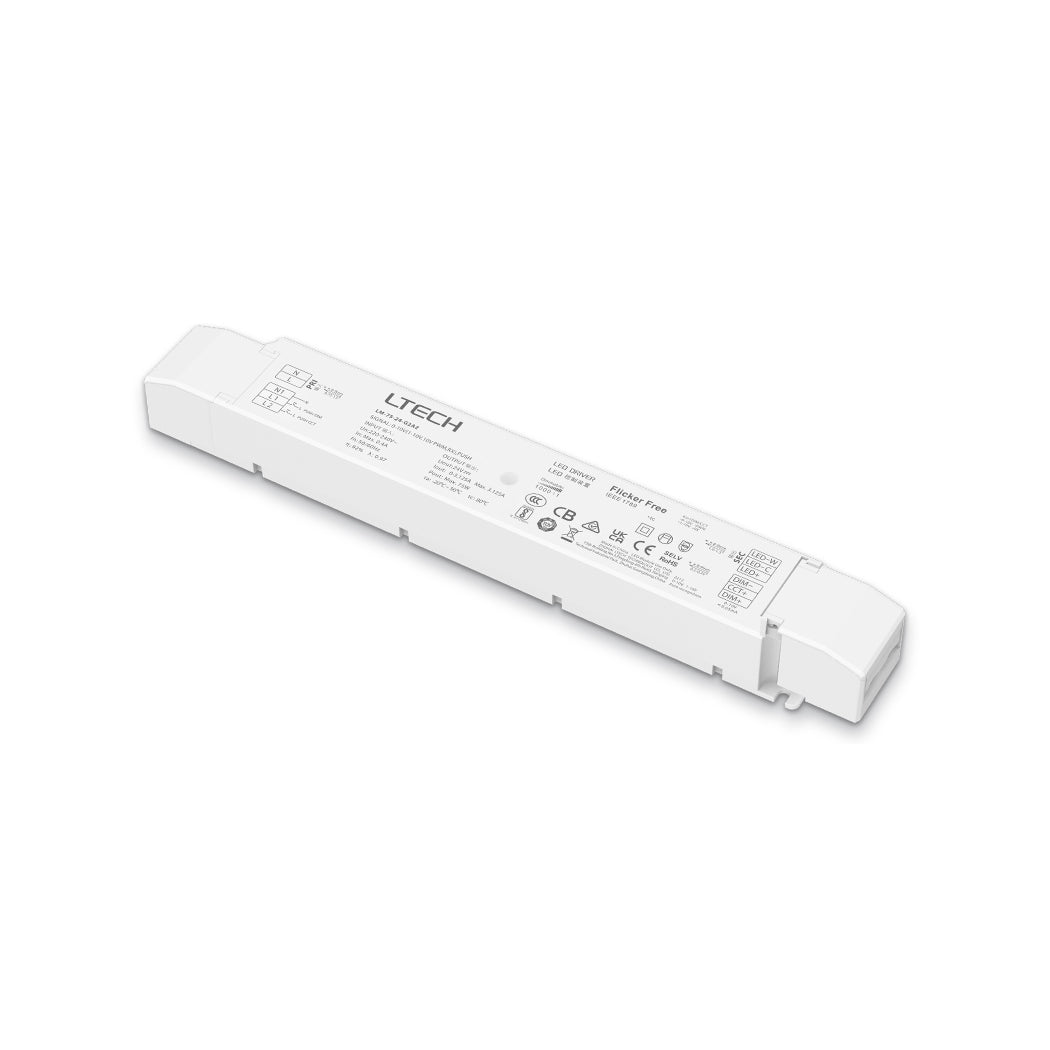

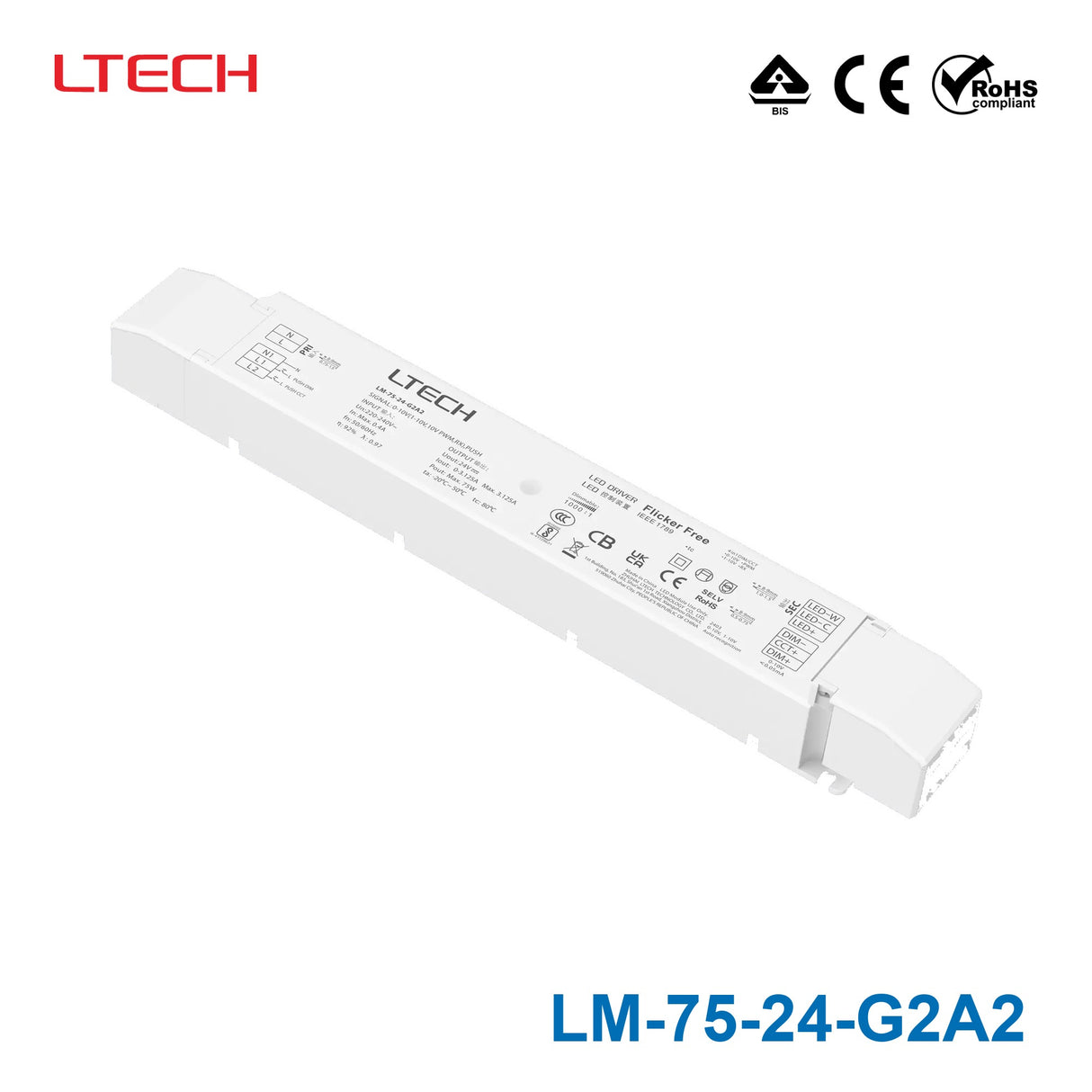

LTECH LM-75-24-G2A2 75W 24VDC CV LED Driver - 0/1-10Vdimmable

SKU:
LM-75-24-G2A2

$73.50 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

  • Dimming interface: 0-10V (1-10V/10V PWM/RX)
  • Push DIM/CCT
  • 0-10V DIM and color temperature adjusting driver
  • 2 independently SELV constant voltage output channels.
  • Constant power design
  • adjust different color temperature to keep the same brightness.
  • Dimming range from 0-100%
  • LED start at 0.1%possible.
  • Color temperature adjusting range: 2700-6500K
  • Automatic recognition of 0-10V
  • 1-10V input signal.
  • 0~100% flicker-free
  • achieve the level of exemption assessment.
  • Over-heat / Over voltage / Over load / Short circuit protection
  • recover automatically.
  • Full protective plastic housing.
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for indoor I/II/III type lamps application.

Specifications

  • Brand
    Ltech
  • Series
    Ltech 0/1-10V Series
  • Power Rating
    75 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.12 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    0-10V,1-10V
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    11.54 in
  • Width
    1.69 in
  • Height
    1.18 in
  • Weight
    0.66 lb

File Downloads

::specification::
