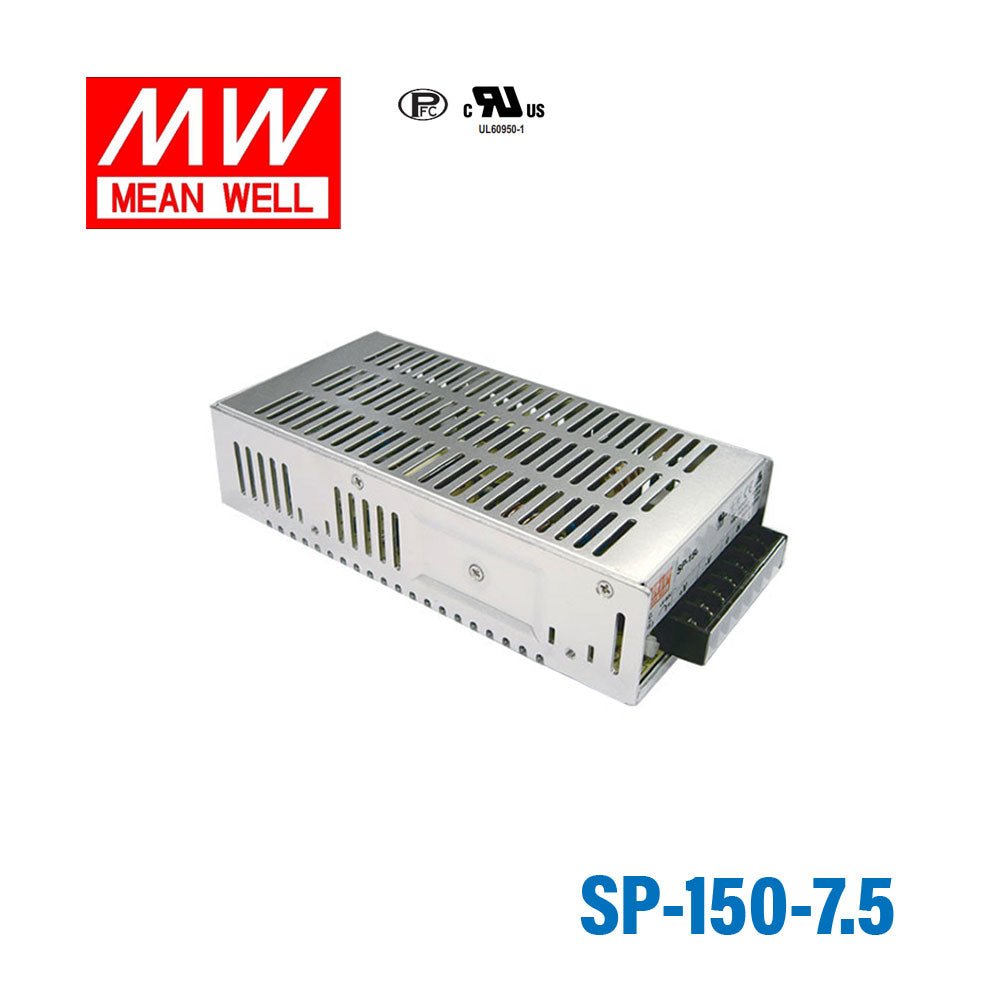

Mean Well SP-150-7.5 Power Supply 150W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-150-7.5 Power Supply 150W 7.5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating150 Watt
-
Output Voltage7.5 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.97 in
-
Weight1.68 lb
::specification::
Frequently Asked Questions
Can I use the SP-150-7.5 for a 7.5V industrial controller or logic board assembly?
Yes, this model is a constant-voltage 7.5V supply rated for 150W and 20A. It fits 7.5V industrial, embedded, or control loads that need a stable 7.5V source and stay within that output range.
Is the SP-150-7.5 suitable for a 7.5V embedded test bench or production fixture?
It can be a fit for a 7.5V bench or fixture setup when the connected load requires constant 7.5V and draws no more than 20A. The 150W output gives more headroom than lower-power 7.5V units in the same series.
Can this power supply be used for 7.5V automation peripherals that draw higher current?
Yes, the SP-150-7.5 is intended for constant-voltage 7.5V loads and can supply up to 20A. That makes it relevant for higher-current 7.5V peripherals or subsystems used in automation and industrial electronics.
Would the SP-150-7.5 work for a 7.5V OEM electronics assembly inside equipment?
It is suited to OEM equipment that needs a regulated 7.5V output, provided the total load remains within 150W and 20A. The universal 85-264VAC input also supports use across a wide AC input range.
Is the SP-150-7.5 meant for indoor or outdoor environments?
The listed operating temperature is -10°C to +55°C, so temperature suitability is defined within that range. No IP rating is provided in the specs, so outdoor or washdown suitability is not stated by the product data shown here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SP-150 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-150-27 Power Supply 150W 27V | 151.2W | 27V | 5.6A | Indoor | $37.12 | View |
| Mean Well SP-150-24 Power Supply 150W 24V | 151.2W | 24V | 6.3A | Indoor | $37.12 | View |
