Mean Well MHB100-48S05 DC-DC Converter - 100W - 36~75V in 5V out 20A
Overview
MHB100-48S05 is the 5V output model of this series: rated power 100W, typical efficiency 86%.
Features
- Half-brick size (2.28"×2.4"×0.5") with industry standard pin out
- 2:1 wide input range
- Protections: Short circuit / Over current / Over voltage / Over temperature
- High efficiency up to 89%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in remote sense function
- Trimming output ±10%
- Five-sided shield metal case

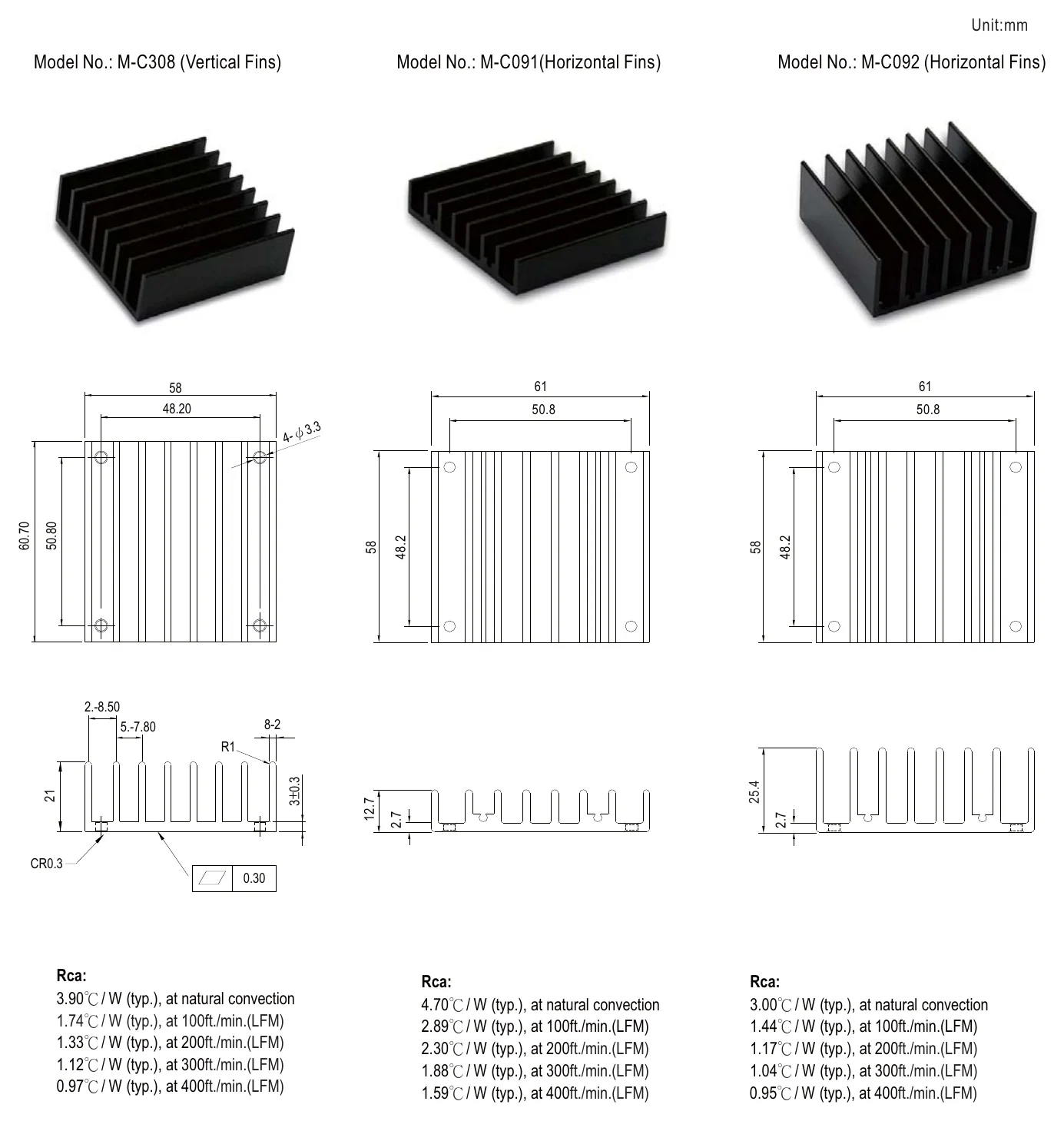

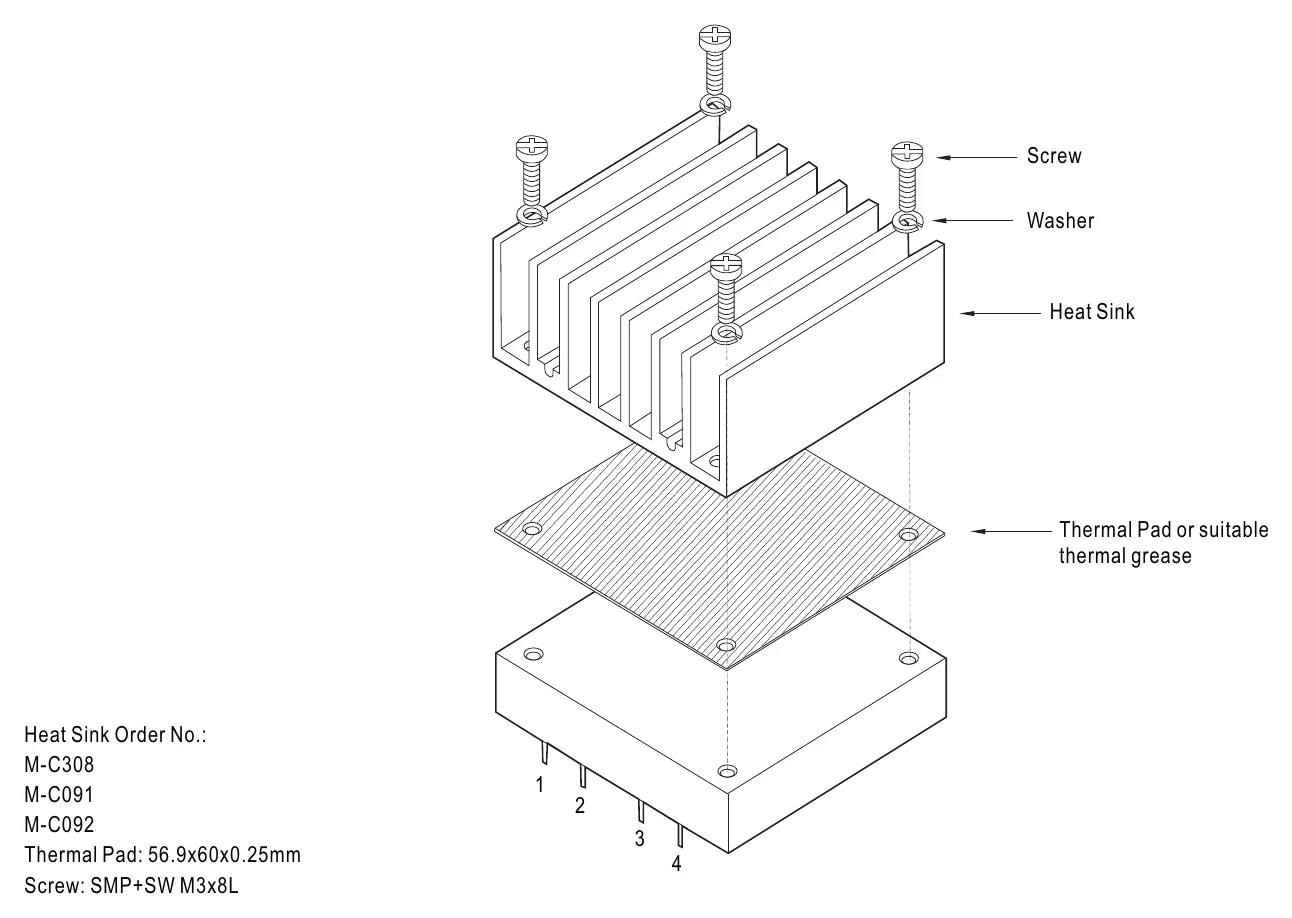

- Optional heat sinks for extended operating temperature
- Output 2.5V/3.3V/15V available
- Approvals: UL / CUL / CE
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- CURRENT RANGE
- 0 ~ 20A
- RATED POWER
- 100W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ACCURACYNote.3
- ±1.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±0.2%
- SWITCHING FREQUENCY (Typ.)
- 500KHz
- EXTERNAL TRIM ADJ. RANGE (Typ.)
- ±10%
- EXTERNAL CAPACITIVE LOAD (max.)
- 20000uF
INPUT
- RATED DC INPUT
- 48VDC
- VOLTAGE RANGE
- 36 ~ 75VDC
- SURGE VOLTAGE (100ms max.)
- 100VDC
- UNDER VOLTAGE LOCKOUT
- Power up: 34VDC, Power down: 32.5VDC
- EFFICIENCY (Typ.)
- 86%
- DC CURRENT FULL LOAD
- 2480mA
- DC CURRENT NO LOAD
- 50mA
- FILTER
- Pi-network
PROTECTION
- OUTPUT OVER CURRENT
- 110 ~ 140% rated output power Protection type : Over current limiting, recovers automatically after fault condition is removed
- OUTPUT OVER VOLTAGE (Typ.)
- 115 ~ 140% rated output voltage Protection type : Output voltage clamp
- OUTPUT SHORT CIRCUIT
- Protection type : Can be continuous, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- 100℃±5℃of case temperature
FUNCTION OPERATING
- REMOTE CONTROL

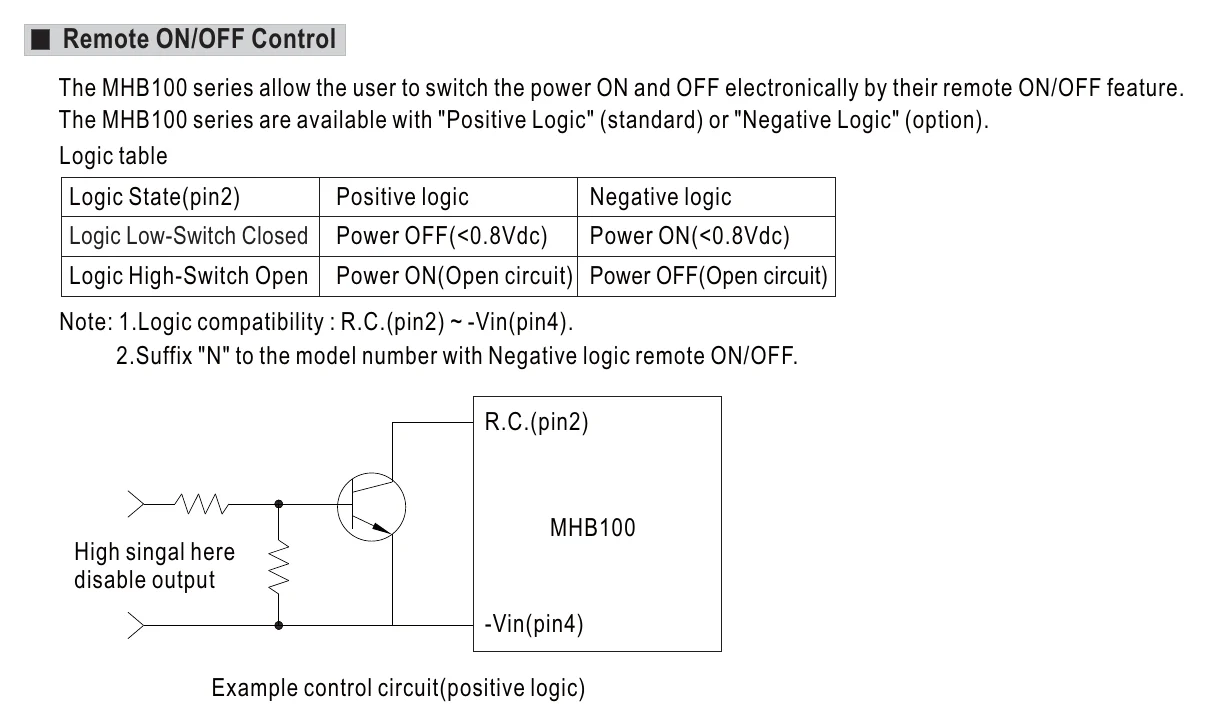

- Please refer to "Remote ON/OFF Control" for details
- OUTPUT TRIMMING

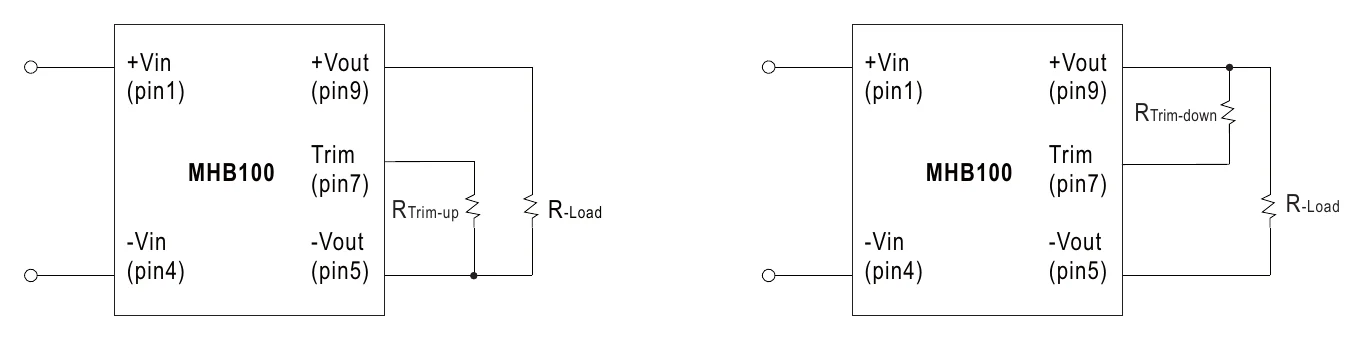

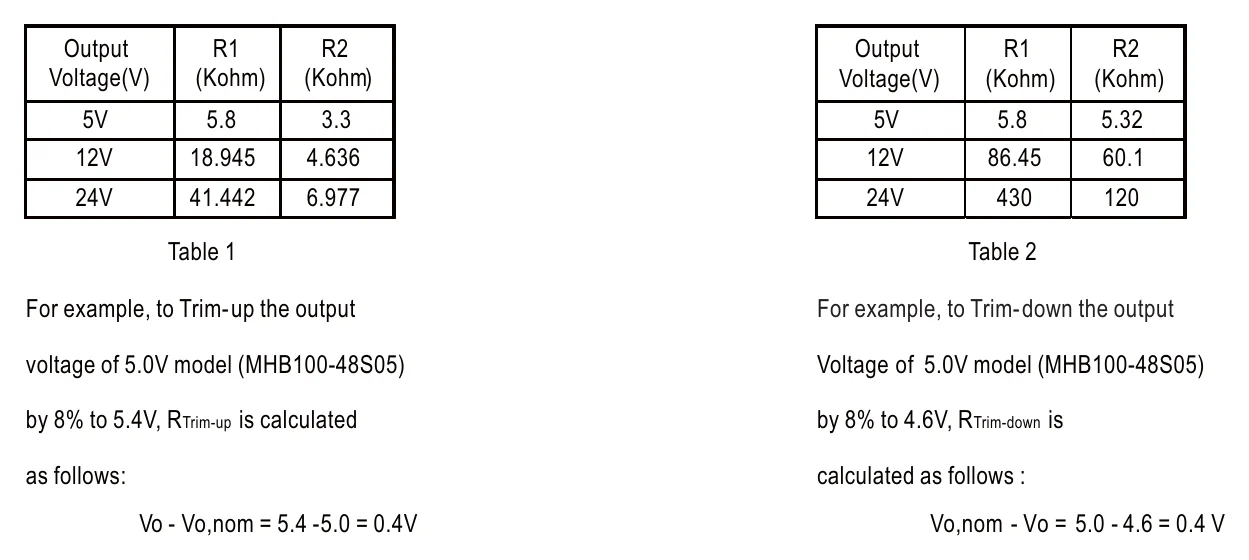

- ±10%, Please refer to "External Output Trimming" for details
ENVIRONMENT
- WORKING TEMPERATURE (Typ.)

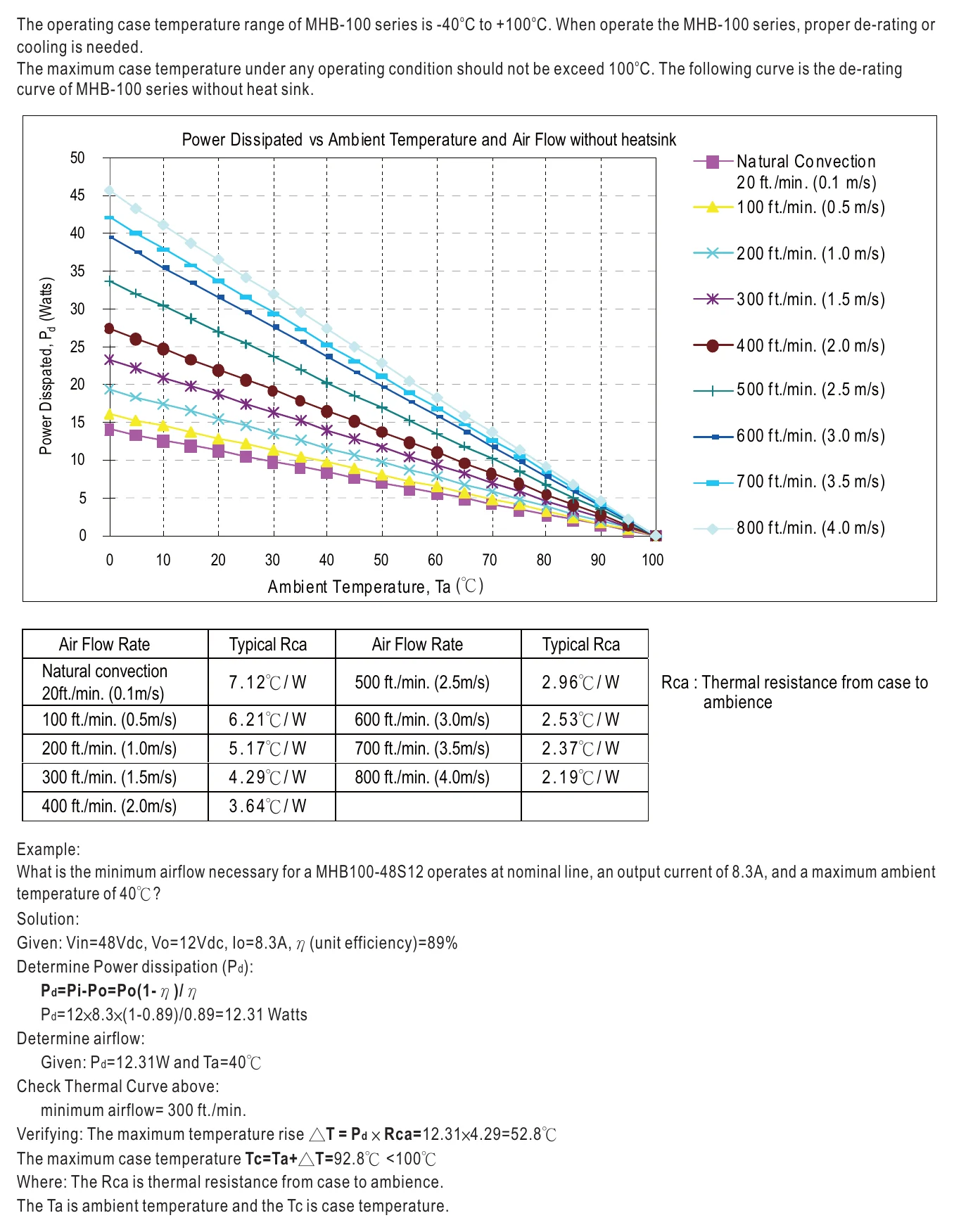

- -40 ~ +100℃ ; Thermal shutdown at 100℃±5℃of case temperature (please refer to "Thermal Curve")
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -55 ~ +105℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃ )
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL60950-1, EAC TP TC 004 approved
- ISOLATION VOLTAGE
- I/P-O/P:1500VDC, I/P-Case:1500VDC, O/P-Case:1500VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃ / 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class A with external components (please refer to "EMC Suggestion Circuit"), EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8; EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS
- CASE MATERIAL
- Aluminum
- MTBF
- 900K hrs typ. MIL-HDBK-217F (25℃)
- DIMENSION
- 57.9*61*12.7mm (2.28"*2.40"*0.5") (L*W*H)
- WEIGHT
- 95g
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 24,48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 1uf ceramic & 10uf tantalum capacitor across output.
- 3. The power supply need to connect "+Vout" to "+R.S" and "-Vout" to "-R.S".
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”

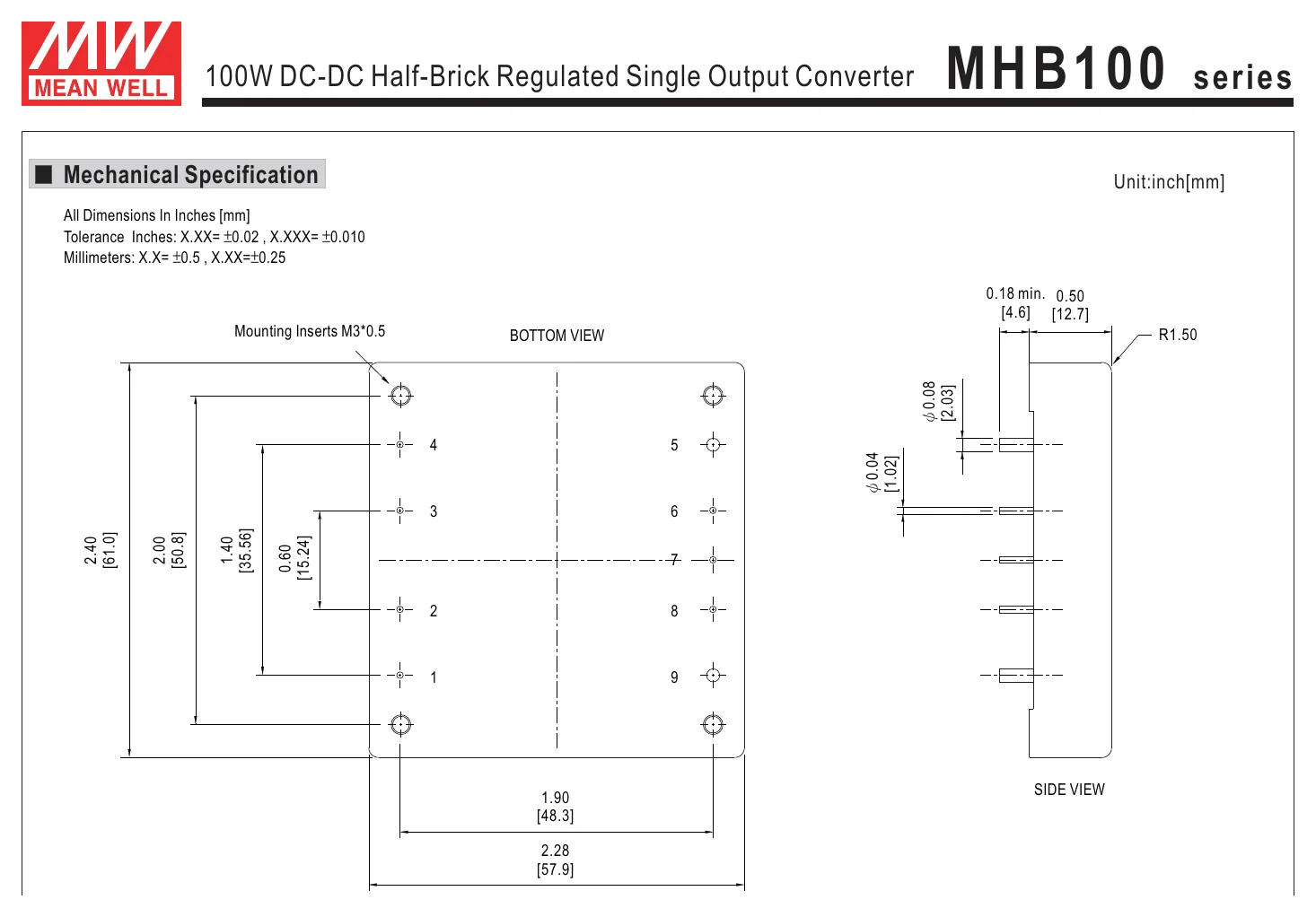

Technical drawings
Downloads
FAQ
Can I use the MHB100-48S05 to power 5V industrial logic from a 36-75VAC source?
Yes, this model is designed for 36-75VAC input and provides constant 5V output. Its 20A output current and 100W power rating make it appropriate for high-current 5V logic, controllers, and embedded electronics within those limits.
Is this converter suitable for 5V embedded processors or industrial communication hardware?
It can be a fit for 5V embedded and communications hardware when the total load stays at or below 20A and 100W. The constant-voltage 5V output is intended for electronics that require a fixed 5V rail rather than a higher 12V or 24V bus.
Can the MHB100-48S05 support multiple 5V automation boards in one system?
It is suited to grouped 5V loads as long as the combined demand does not exceed 20A or 100W. That makes it useful for dense low-voltage control assemblies powered from a 36-75VAC input range.
Is the MHB100-48S05 appropriate for outdoor cabinets or temperature-extreme installations?
The operating temperature range is -55°C to +105°C, so the temperature spec supports very cold and very hot environments. However, no IP rating is listed in the provided specs, so the information here does not verify exposed outdoor or wet-location use.
How does the MHB100-48S05 compare with the other models in the series?
All listed MHB100 siblings are rated at 100W. The available outputs are 5V 20A, 12V 8.3A, and 24V 4.17A, offered across both the 24S input family and the 48S input family, including this 48S05 model.
