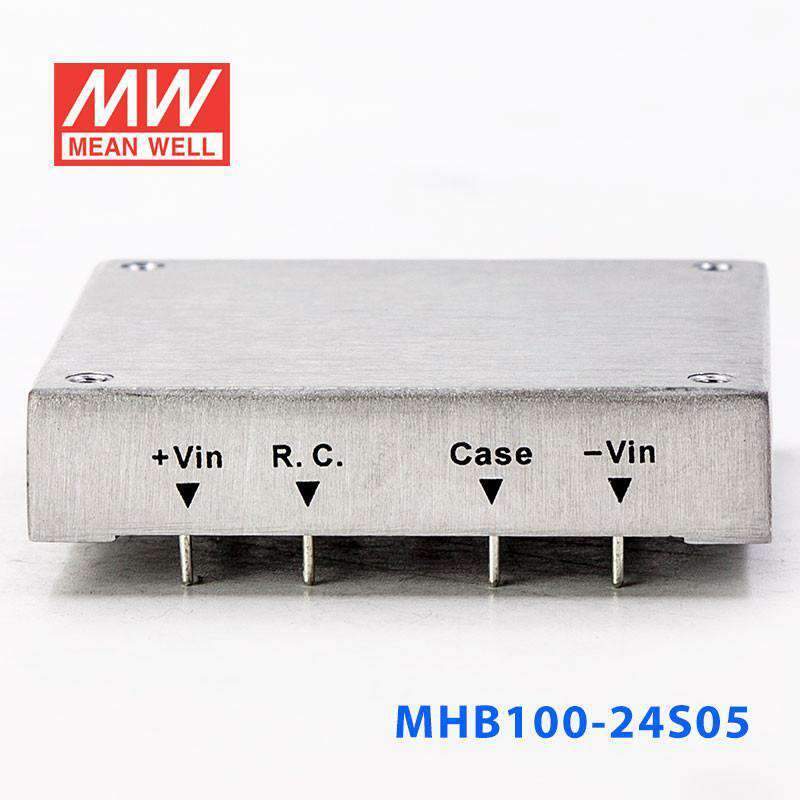

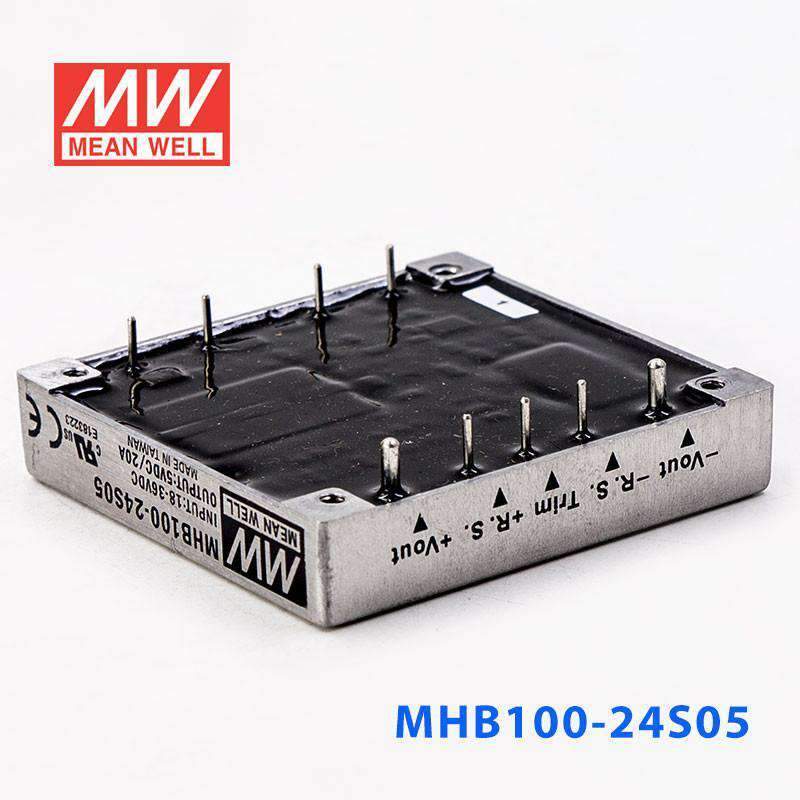

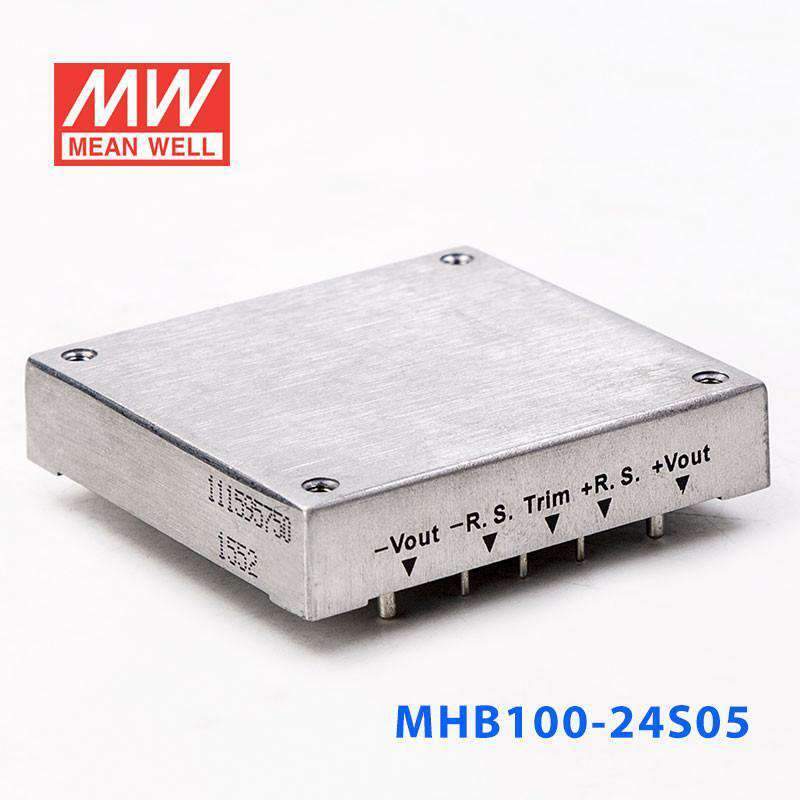

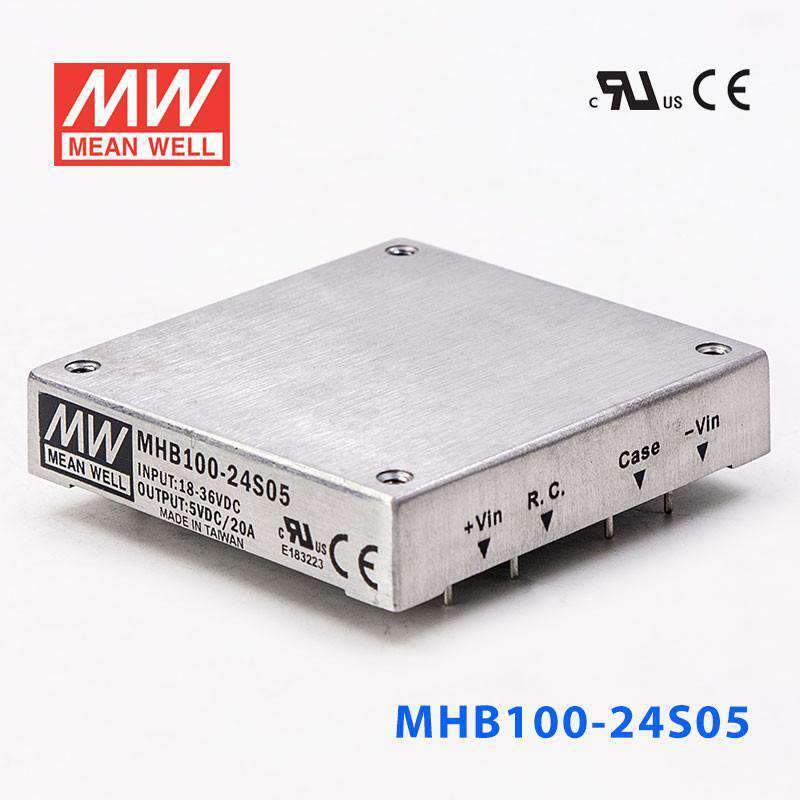

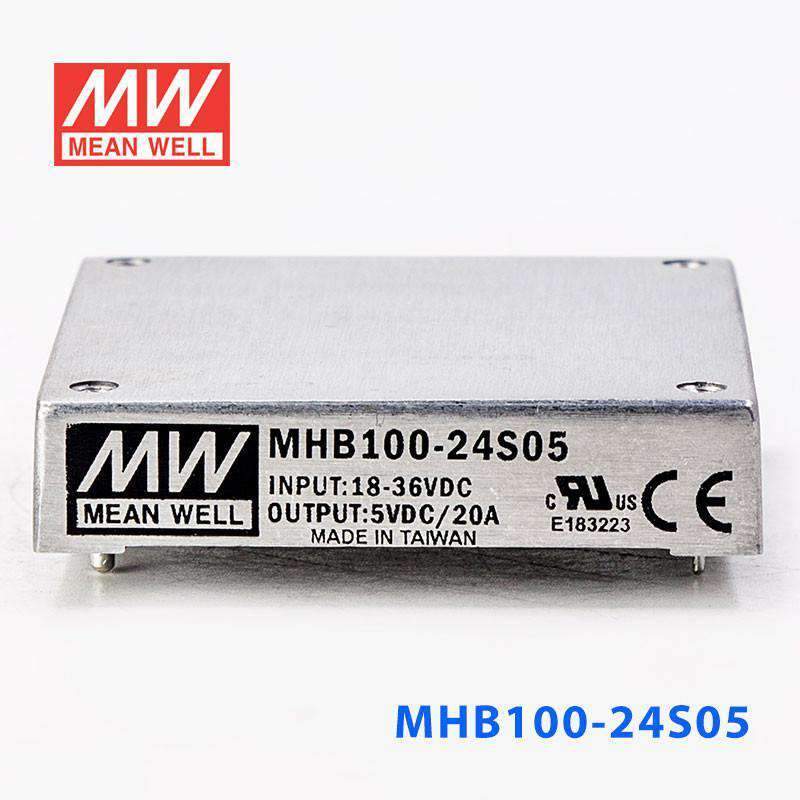

Mean Well MHB100-24S05 DC-DC Converter - 100W - 18~36V in 5V out
Description
Description
The MHB100 is a 100W Mean Well power converter (input range: 18~36VDC).
Key Features
- ✓ Input voltage range: 18~36VDC
- ✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating100 Watt
-
Output Voltage5 Volt
-
Rated Current20 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.21 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MHB100-24S05 to step a 24V system down to 5V for industrial electronics?
Yes, this converter is designed for an 18-36V input range and provides a constant 5V output. It is rated for 100W and 20A, which suits higher-current 5V industrial electronics within those limits.
Is the MHB100-24S05 suitable for powering 5V embedded computing or control hardware from a nominal 24V source?
It is a fit when the upstream source is within the 18-36V input range and the downstream load needs 5V constant voltage. With 100W and 20A available on the output, it supports heavier 5V loads than lower-power board supplies.
Can this converter run 5V automation peripherals in vehicles, mobile equipment, or battery-backed systems?
It can fit 24V-class systems that stay within the stated 18-36V input range and need a regulated 5V output. The -55C to +105C operating temperature range is broader than many standard enclosed power products.
How does the MHB100-24S05 compare with the other MHB100 versions?
This model is the 18-36V input, 5V output version with 100W and 20A output. The other siblings are MHB100-24S12 at 100W, 12V, 8.3A; MHB100-24S24 at 100W, 24V, 4.17A; MHB100-48S05 at 100W, 5V, 20A; MHB100-48S12 at 100W, 12V, 8.3A; and MHB100-48S24 at 100W, 24V, 4.17A.
Is the MHB100-24S05 appropriate for outdoor or extreme-temperature environments?
Its operating temperature range is -55C to +105C, which makes it suitable for very cold and very hot equipment environments. No IP rating is listed, so outdoor use should be inside a protective enclosure rather than exposed directly.
Other MHB100 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MHB100-48S24 DC-DC Converter - 100W - 36~75V in 24V out | 100W | 24V | 4.17A | Indoor | $82.90 | View |
| Mean Well MHB100-48S12 DC-DC Converter - 100W - 36~75V in 12V out | 100W | 12V | 8.3A | Indoor | $82.90 | View |
| Mean Well MHB100-48S05 DC-DC Converter - 100W - 36~75V in 5V out | 100W | 5V | 20A | Indoor | $82.90 | View |
| Mean Well MHB100-24S24 DC-DC Converter - 100W - 18~36V in 24V out | 100W | 24V | 4.17A | Indoor | $82.90 | View |
| Mean Well MHB100-24S12 DC-DC Converter - 100W - 18~36V in 12V out | 100W | 12V | 8.3A | Indoor | $78.63 | View |
