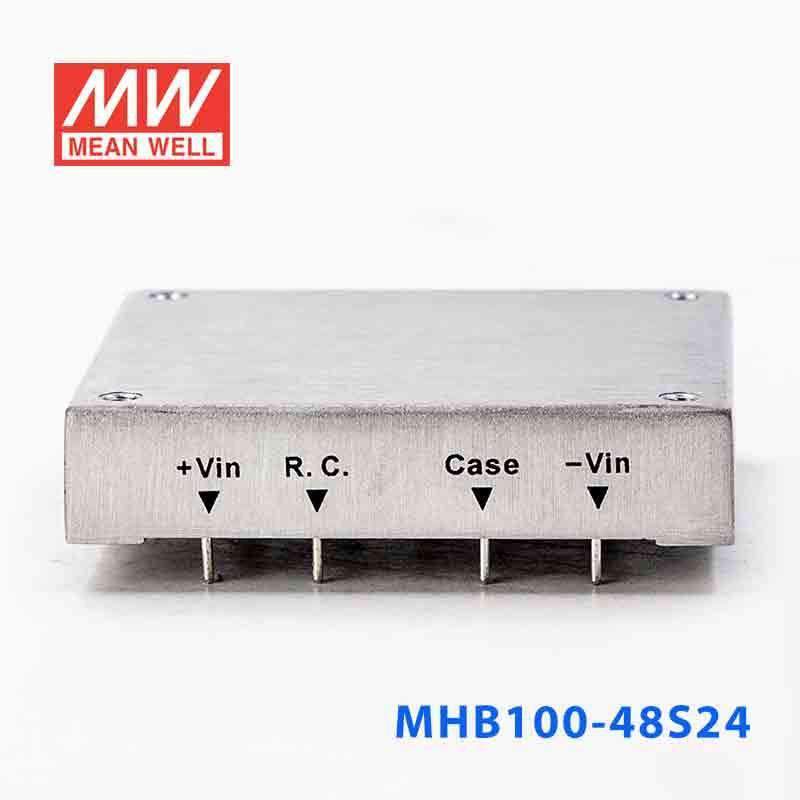

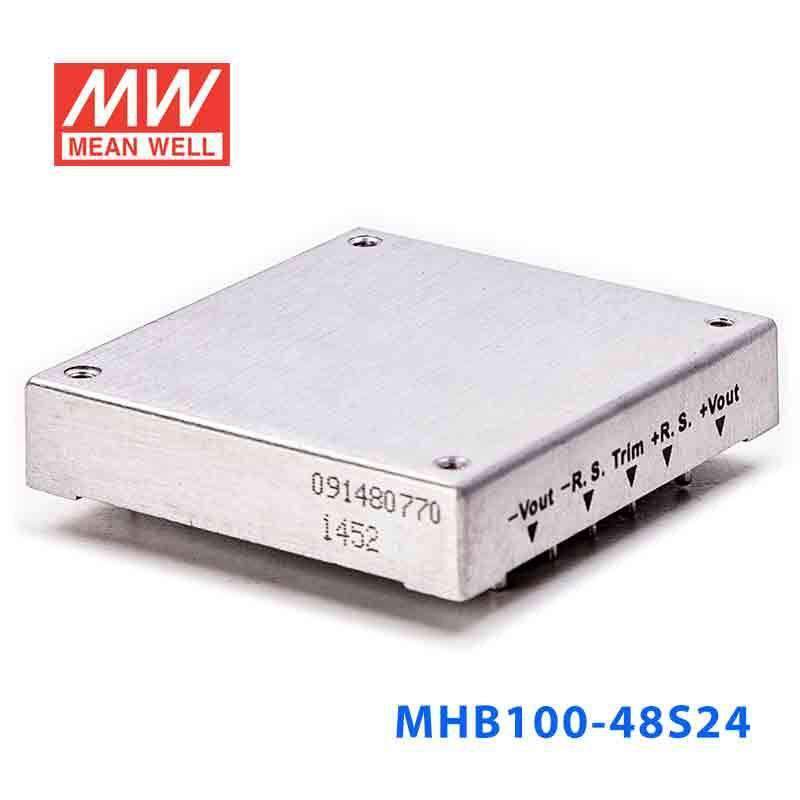

Mean Well MHB100-48S24 DC-DC Converter - 100W - 36~75V in 24V out
Description
Description
The MHB100 is a 100W Mean Well power converter (input range: 18~36VDC).
Key Features
- ✓ Input voltage range: 18~36VDC
- ✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4.17 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.21 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MHB100-48S24 to supply 24V automation equipment from a 36-75VAC source?
Yes, this model is designed for 36-75VAC input and constant 24V output. Its 4.17A output current and 100W power rating make it suitable for 24V automation and control loads within those limits.
Is the MHB100-48S24 a fit for 24V industrial communications or control modules?
It can be a fit for 24V industrial electronics that require a fixed-voltage supply and draw no more than 4.17A or 100W. Compared with the 5V and 12V versions, this model is aligned with 24V constant-voltage loads.
Can this converter power 24V embedded subsystems inside compact equipment?
Yes, if the subsystem needs constant 24V and remains within 4.17A output current and 100W total power. The 61.0 x 57.9 x 12.7 mm dimensions and 0.095 kg weight also support compact builds.
Is the MHB100-48S24 suitable for harsh temperature conditions or outdoor use?
The operating temperature is specified from -55°C to +105°C, so the temperature range is broad. However, no IP rating appears in the provided specs, which means the listed data does not confirm direct outdoor, washdown, or weather-exposed use.
How does the MHB100-48S24 compare with other MHB100 series converters?
All listed siblings are 100W converters, and the differences are the input family and output rating. The series includes 24S and 48S input versions, each offered in 5V 20A, 12V 8.3A, and 24V 4.17A outputs, with this unit being the 48S 24V 4.17A model.
Other MHB100 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MHB100-48S12 DC-DC Converter - 100W - 36~75V in 12V out | 100W | 12V | 8.3A | Indoor | $82.90 | View |
| Mean Well MHB100-48S05 DC-DC Converter - 100W - 36~75V in 5V out | 100W | 5V | 20A | Indoor | $82.90 | View |
| Mean Well MHB100-24S24 DC-DC Converter - 100W - 18~36V in 24V out | 100W | 24V | 4.17A | Indoor | $82.90 | View |
| Mean Well MHB100-24S12 DC-DC Converter - 100W - 18~36V in 12V out | 100W | 12V | 8.3A | Indoor | $78.63 | View |
| Mean Well MHB100-24S05 DC-DC Converter - 100W - 18~36V in 5V out | 100W | 5V | 20A | Indoor | $82.90 | View |
