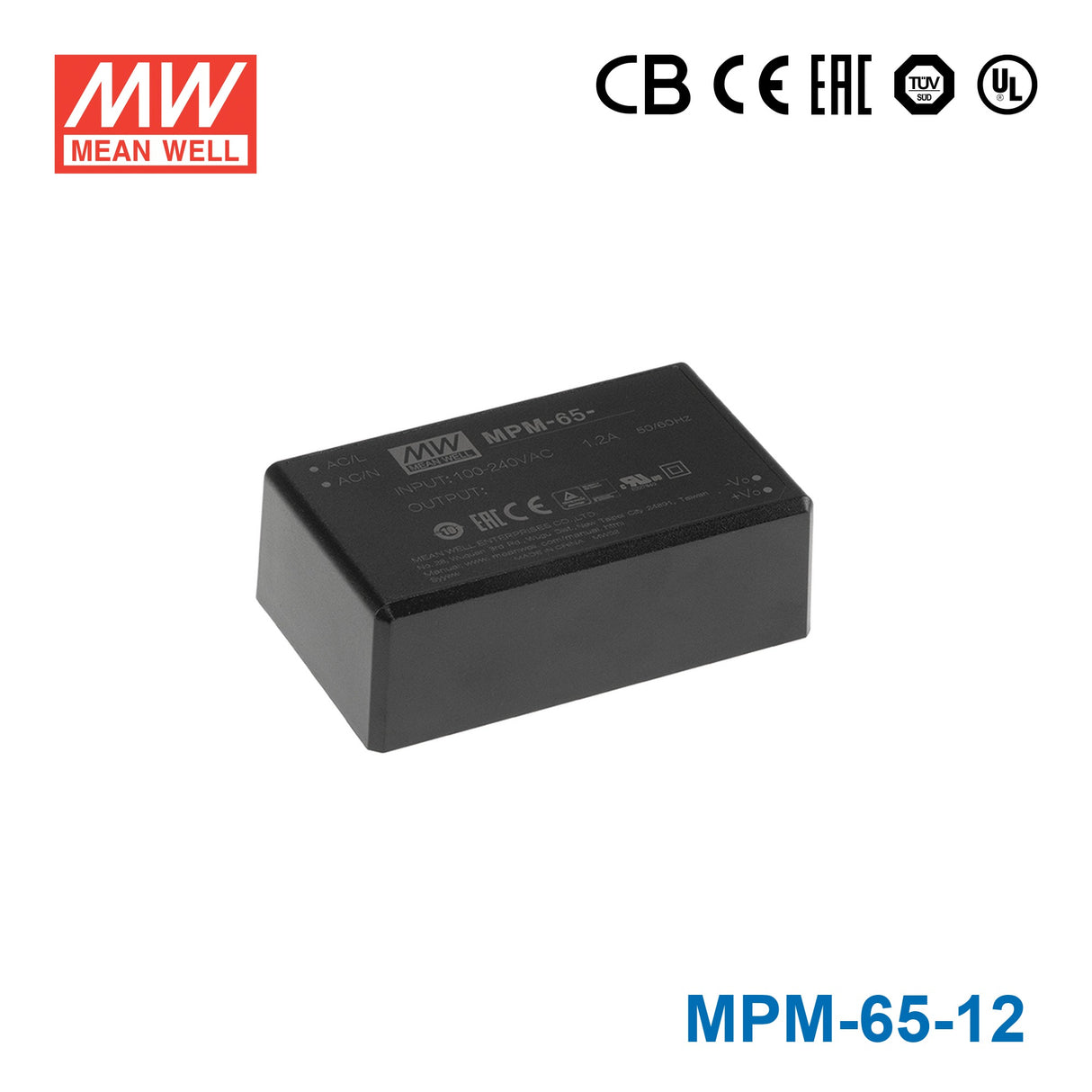

Mean Well MPM-65-12 Power Supply 65W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-65-12 Power Supply 65W 12V
3.43"x2.05" compact size
PCB chassis or screw terminal mounting version
Touch current<80 μA/264VAC
Key Features
- ✓3.43"x2.05" compact sizePCB chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65 Watt
-
Output Voltage12 Volt
-
Rated Current5.42 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the MPM-65-12 for a 12V industrial control panel?
Yes, it is a constant-voltage 12V supply rated for 65W and 5.42A, which fits 12V control circuits that need a stable DC output. The wide 80-264VAC input also suits panels used across different AC mains ranges.
Is the MPM-65-12 suitable for 12V embedded or single-board computer projects?
It can be a fit for embedded systems that require a regulated 12V DC rail and stay within 65W or 5.42A. Its encapsulated construction and compact 87.0 × 52.0 × 29.5 mm size are useful where board space is limited.
Can this power supply run 12V automation accessories like sensors, relays, or small HMI hardware?
It is appropriate for 12V automation loads when the total demand remains within 65W and 5.42A. Because it is a constant-voltage model, it is intended for equipment designed to take a fixed 12V input.
Is the MPM-65-12 okay for outdoor or washdown environments?
The listed specs show an operating temperature of -30°C to +80°C, so temperature capability is broad. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not established by this data.
How does the MPM-65-12 compare with other MPM 12V models?
Within the 12V MPM range, the listed siblings are MPM-05-12 at 5W and 0.42A, MPM-10-12 at 10.2W and 0.85A, MPM-15-12 at 15W and 1.25A, MPM-20-12 at 21.6W and 1.8A, MPM-30-12 and MPM-30-12ST at 30W and 2.5A, MPM-45-12 and MPM-45-12ST at 45W and 3.75A, MPM-65-12ST at 65W and 5.42A, and MPM-90-12 and MPM-90-12ST at 80.4W and 6.7A. This model sits above the 45W class and below the 80.4W class while keeping the same 12V output.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-65 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-65-5ST Power Supply 65W 5V | 50W | 5V | 10A | Indoor | $30.30 | View |
| Mean Well MPM-65-5 Power Supply 65W 5V | 50W | 5V | 10A | Indoor | $28.20 | View |
| Mean Well MPM-65-48ST Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $30.30 | View |
| Mean Well MPM-65-48 Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $28.20 | View |
| Mean Well MPM-65-24ST Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $30.23 | View |
| Mean Well MPM-65-24 Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $28.20 | View |
| Mean Well MPM-65-15ST Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $30.30 | View |
| Mean Well MPM-65-15 Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $28.20 | View |
| Mean Well MPM-65-12ST Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $30.30 | View |
