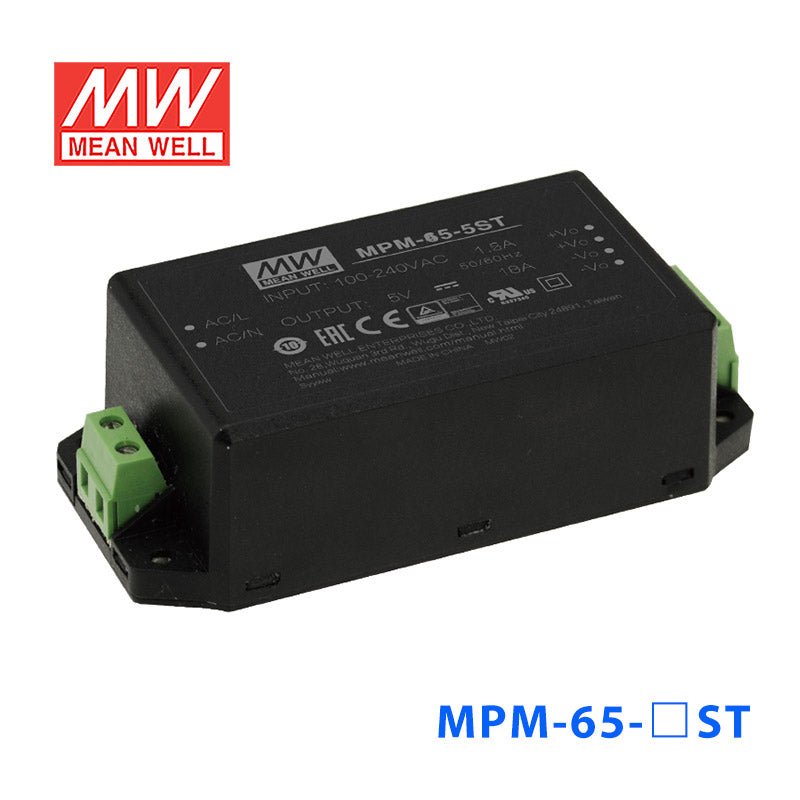

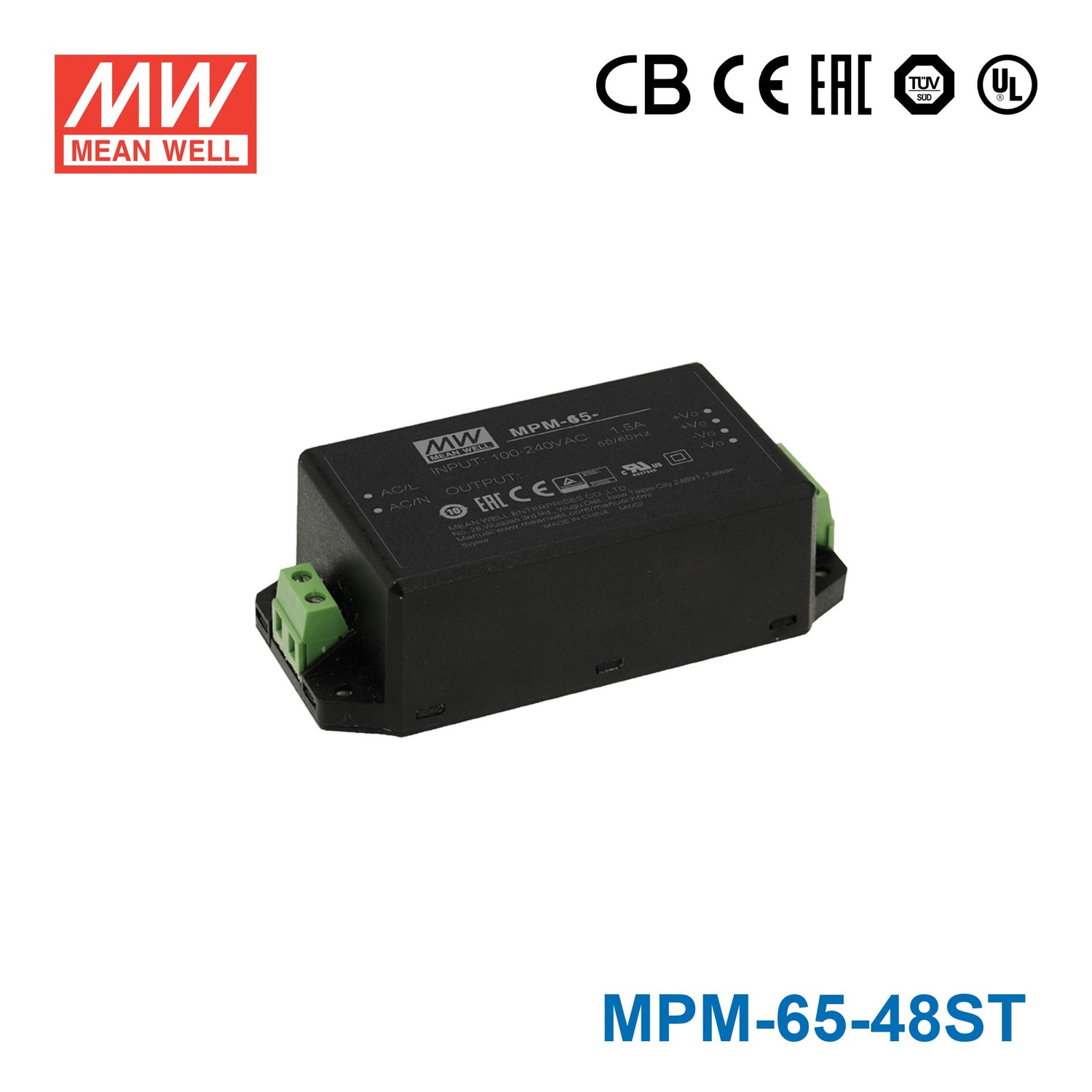

Mean Well MPM-65-48ST Power Supply 65W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-65-48ST Power Supply 65W 48V
Description
Description
Features
|
3.43"x2.05" compact size PCB chassis or screw terminal mounting version |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.1W |
| Extremely low leakage current |
| Wide operating temp. range -30~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current | Cold start 45A |
| Leakage current | Touch current<80 μA/264VAC |
| Overload protection | 110 ~ 150% rated output power |
| Over-voltage protection | 106%~144% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -30~+80°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | IRM60 |
| Dimension (LxWxH) | 87x52.2x29.5 |
| Packing | 60pcs / 12.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65.3 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-65-48ST in a 48V automation or control cabinet?
Yes, if the 48V DC load stays within 1.36A and 65.3W. It is a constant-voltage 48V supply, which aligns with automation and control equipment designed for regulated 48V input.
Is the MPM-65-48ST suitable for 48V communications or embedded hardware?
It can be used with 48V communications or embedded hardware that requires no more than 1.36A. The wide 80-264VAC input range also supports deployments where the available AC source may vary.
Would the MPM-65-48ST work for a compact 48V industrial subsystem?
It is built in a 109.0 x 52.0 x 33.5 mm package and provides 48V constant-voltage output up to 65.3W. That makes it relevant for compact industrial subsystems that need 48V DC and fit within the 1.36A output rating.
What are the 65-series MPM choices if I need a different output than 48V?
Within the 65-series, options include 5V at 10A on the MPM-65-5 and MPM-65-5ST with 50W, 12V at 5.42A on the MPM-65-12 and MPM-65-12ST with 65W, 15V at 4.33A on the MPM-65-15 and MPM-65-15ST with 65W, 24V at 2.71A on the MPM-65-24 and MPM-65-24ST with 65W, and 48V at 1.36A on the MPM-65-48 and MPM-65-48ST with 65.3W. The ST version keeps the same 48V and 1.36A electrical rating as the non-ST model.
Is the MPM-65-48ST rated for outdoor environments?
The listed operating temperature range is -30 degrees C to +80 degrees C, which supports use across a wide temperature span. However, no IP rating appears in the provided specifications, so the product data does not confirm outdoor exposure or ingress protection.
