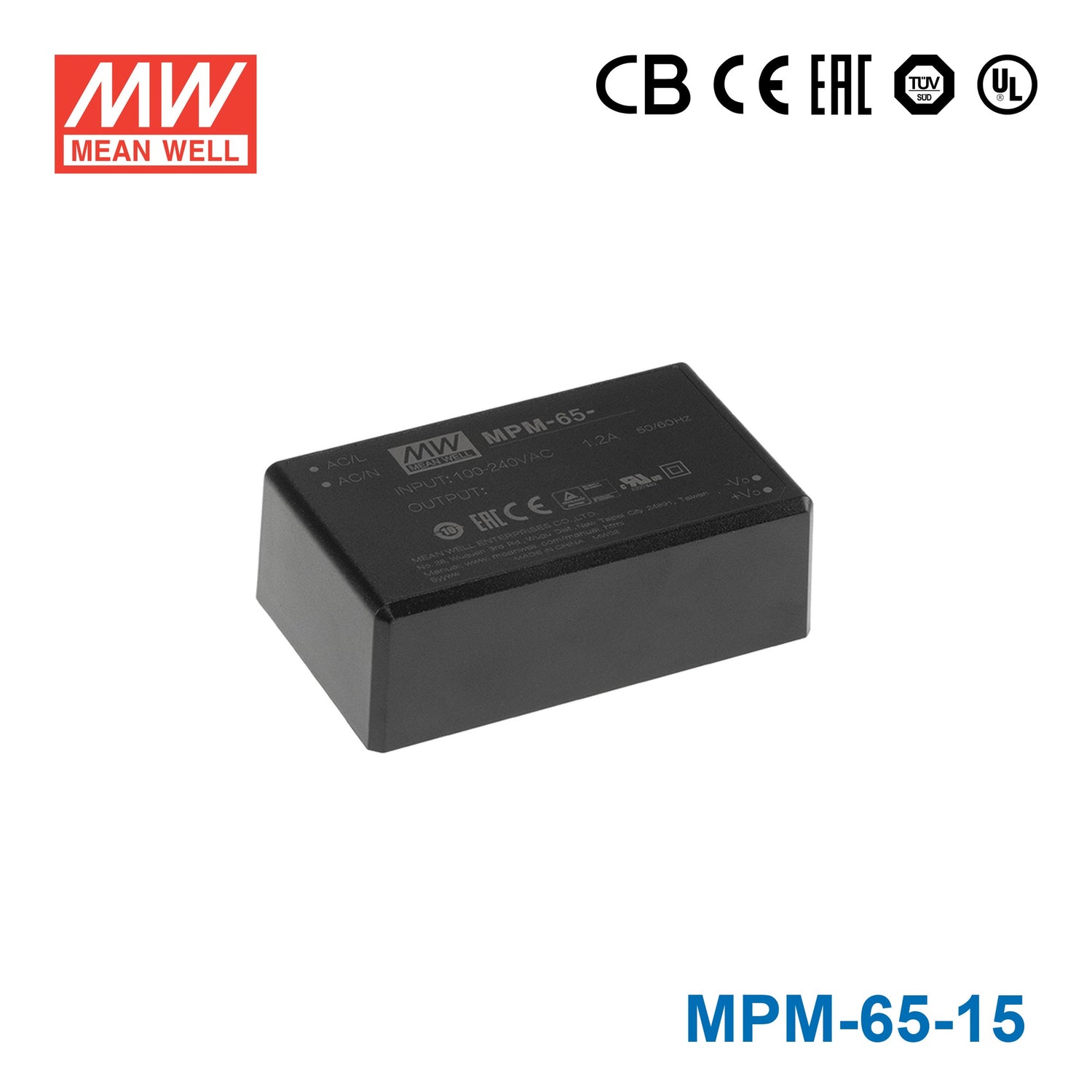

Mean Well MPM-65-15 Power Supply 65W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-65-15 Power Supply 65W 15V
Description
Description
Features
|
3.43"x2.05" compact size PCB chassis or screw terminal mounting version |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.1W |
| Extremely low leakage current |
| Wide operating temp. range -30~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current | Cold start 45A |
| Leakage current | Touch current<80 μA/264VAC |
| Overload protection | 110 ~ 150% rated output power |
| Over-voltage protection | 106%~144% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -30~+80°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | IRM60 |
| Dimension (LxWxH) | 87x52.2x29.5 |
| Packing | 60pcs / 12.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65 Watt
-
Output Voltage15 Volt
-
Rated Current4.33 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-65-15 for 15V industrial electronics?
Yes, for equipment designed for constant-voltage 15V input and drawing no more than 65W or 4.33A. That makes it relevant for industrial electronics that specifically require a 15V DC rail rather than 12V or 24V.
Is the MPM-65-15 suitable for 15V embedded control hardware?
It can be used with embedded control hardware that needs regulated 15V DC and stays within the 65W, 4.33A output rating. The compact 87.0 × 52.0 × 29.5 mm package also helps where internal space is tight.
Can this model power 15V sensors, actuators, or automation modules?
It is intended for 15V DC loads that operate from a constant-voltage source and do not exceed 4.33A or 65W. Buyers should match it only to equipment specified for 15V operation, since this is not an adjustable-output unit.
Is the MPM-65-15 intended for outdoor installations?
The provided specs list an operating temperature range of -30°C to +80°C, which covers a wide thermal span. However, no IP rating is given, so the supplied data does not establish outdoor or wet-location suitability.
How does the MPM-65-15 compare with other 15V models in the MPM series?
The listed 15V siblings are MPM-05-15 at 5W and 0.33A, MPM-10-15 at 10W and 0.67A, MPM-15-15 at 15W and 1A, MPM-20-15 at 21W and 1.4A, MPM-30-15 and MPM-30-15ST at 30W and 2A, MPM-45-15 and MPM-45-15ST at 45W and 3A, MPM-65-15ST at 65W and 4.33A, and MPM-90-15 and MPM-90-15ST at 85.05W and 5.67A. This model is the 65W, 4.33A option in that 15V range.
