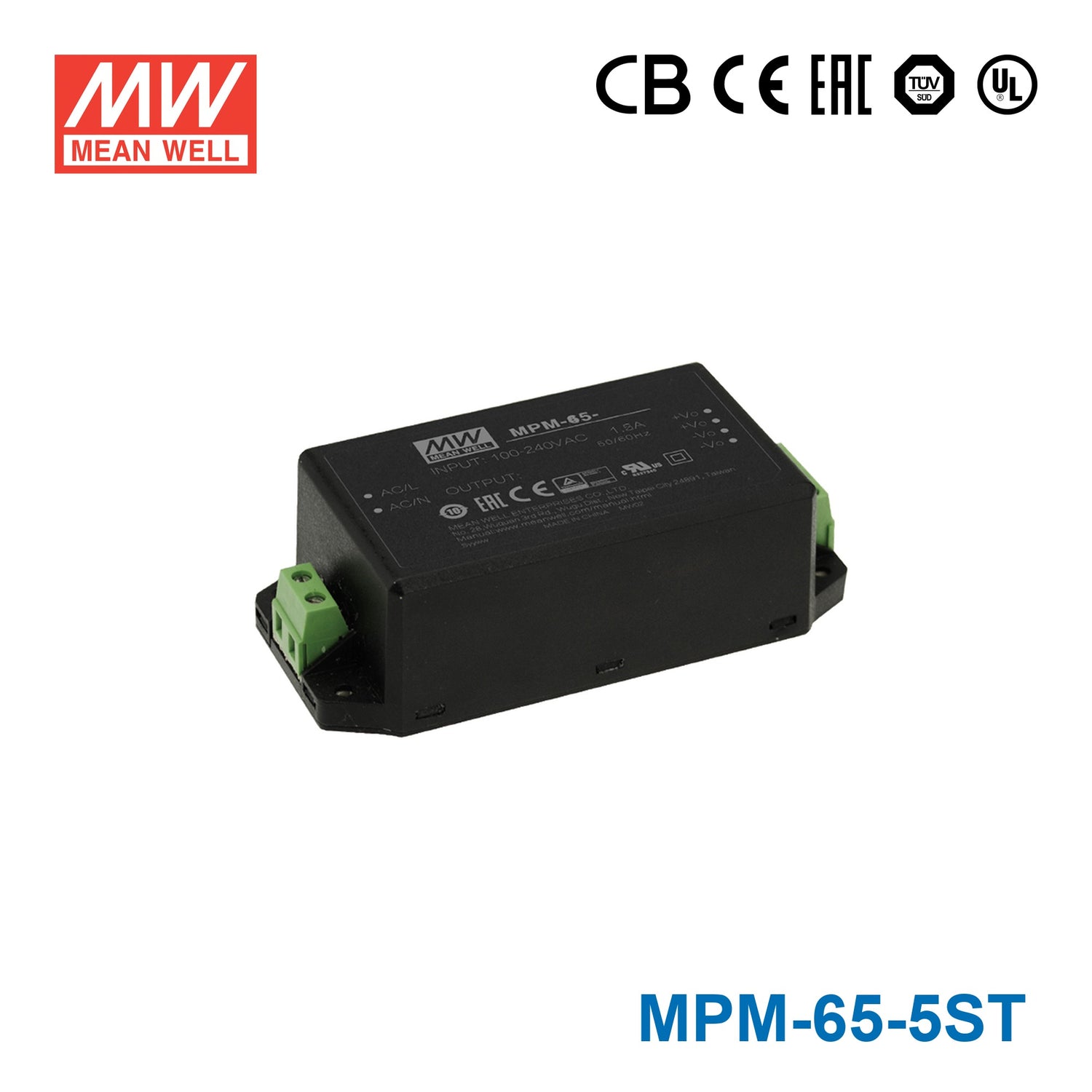

Mean Well MPM-65-5ST Power Supply 65W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-65-5ST Power Supply 65W 5V
Description
Description
Features
|
3.43"x2.05" compact size PCB chassis or screw terminal mounting version |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.1W |
| Extremely low leakage current |
| Wide operating temp. range -30~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current | Cold start 45A |
| Leakage current | Touch current<80 μA/264VAC |
| Overload protection | 110 ~ 150% rated output power |
| Over-voltage protection | 106%~144% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -30~+80°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | IRM60 |
| Dimension (LxWxH) | 87x52.2x29.5 |
| Packing | 60pcs / 12.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-65-5ST for a 5V industrial control board or logic system?
Yes, if the equipment requires a regulated 5V supply and draws no more than 10A or 50W. Its constant-voltage output makes it suitable for 5V control boards, logic assemblies, and similar low-voltage electronics.
Is the MPM-65-5ST suitable for 5V embedded computing platforms with multiple peripherals?
It can be, because the supply is rated for 5V output up to 10A. That higher current capacity can support embedded computing platforms or 5V electronics with multiple downstream loads, as long as the total demand stays within 50W.
Would the MPM-65-5ST fit compact 5V medical or instrument electronics?
It may be considered for 5V instrument or medical-adjacent electronics because it is compact at 109.0 x 52.0 x 33.5 mm and the features list includes medical safety approval and extremely low leakage current. Electrically, the load must match the 5V constant-voltage output and remain within 10A.
What other output versions exist in the MPM 65-series besides the 5V MPM-65-5ST?
Other 65-series versions are 12V at 5.42A on the MPM-65-12 and MPM-65-12ST with 65W, 15V at 4.33A on the MPM-65-15 and MPM-65-15ST with 65W, 24V at 2.71A on the MPM-65-24 and MPM-65-24ST with 65W, and 48V at 1.36A on the MPM-65-48 and MPM-65-48ST with 65.3W. The 5V pair, MPM-65-5 and MPM-65-5ST, is rated at 50W and 10A.
Is the MPM-65-5ST meant for indoor or outdoor environments?
The specified operating temperature range is -30 degrees C to +80 degrees C, which indicates broad temperature tolerance. No IP rating is included in the provided specifications, so the product data supports temperature review but does not confirm outdoor exposure capability.
Other MPM-65 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-65-5 Power Supply 65W 5V | 50W | 5V | 10A | Indoor | $28.20 | View |
| Mean Well MPM-65-48ST Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $30.30 | View |
| Mean Well MPM-65-48 Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $28.20 | View |
| Mean Well MPM-65-24ST Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $30.23 | View |
| Mean Well MPM-65-24 Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $28.20 | View |
| Mean Well MPM-65-15ST Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $30.30 | View |
| Mean Well MPM-65-15 Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $28.20 | View |
| Mean Well MPM-65-12ST Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $30.30 | View |
| Mean Well MPM-65-12 Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $28.20 | View |
