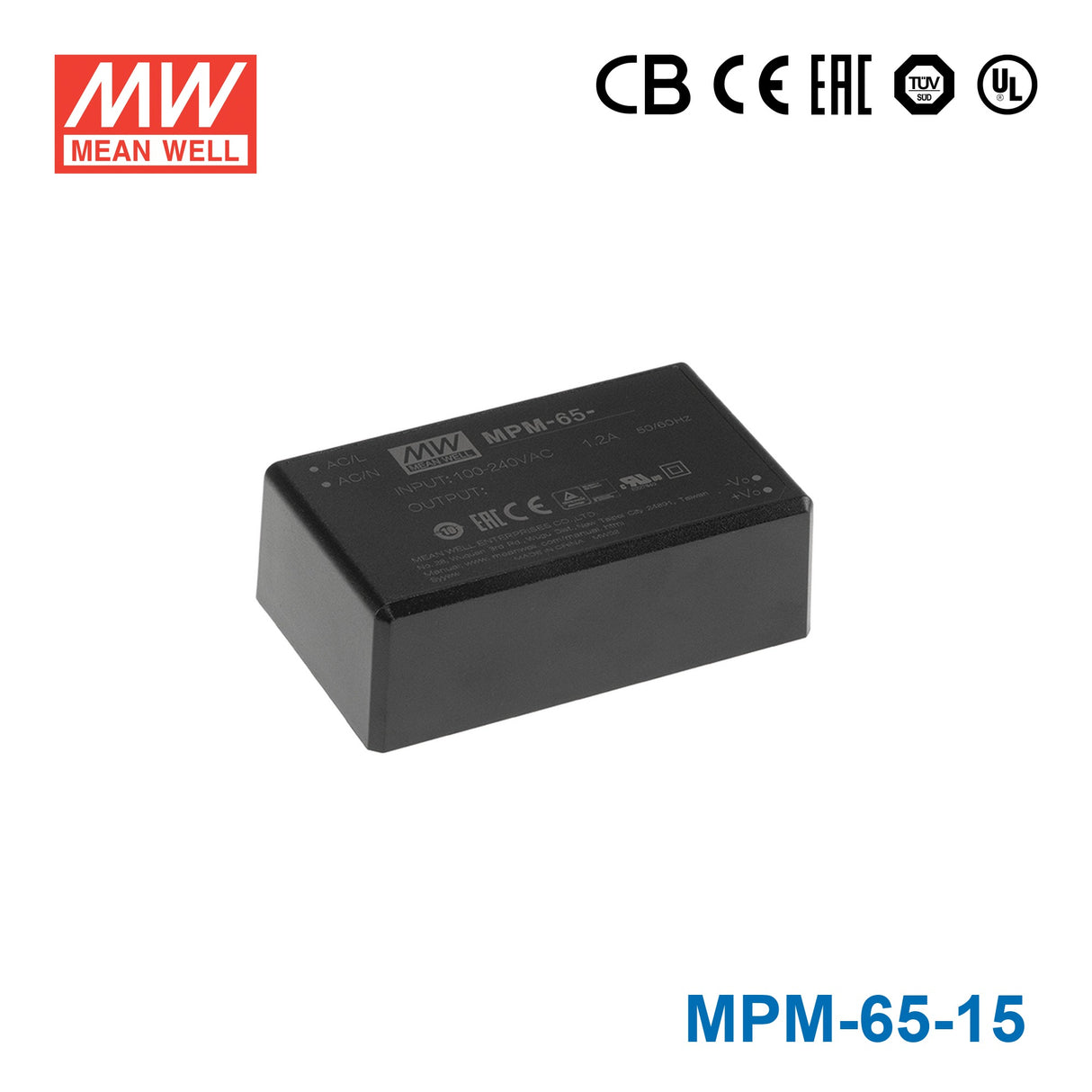

Mean Well MPM-65-15 Power Supply 65W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-65-15 Power Supply 65W 15V
3.43"x2.05" compact size
PCB chassis or screw terminal mounting version
Touch current<80 μA/264VAC
Key Features
- ✓3.43"x2.05" compact sizePCB chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65 Watt
-
Output Voltage15 Volt
-
Rated Current4.33 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the MPM-65-15 for 15V industrial electronics?
Yes, for equipment designed for constant-voltage 15V input and drawing no more than 65W or 4.33A. That makes it relevant for industrial electronics that specifically require a 15V DC rail rather than 12V or 24V.
Is the MPM-65-15 suitable for 15V embedded control hardware?
It can be used with embedded control hardware that needs regulated 15V DC and stays within the 65W, 4.33A output rating. The compact 87.0 × 52.0 × 29.5 mm package also helps where internal space is tight.
Can this model power 15V sensors, actuators, or automation modules?
It is intended for 15V DC loads that operate from a constant-voltage source and do not exceed 4.33A or 65W. Buyers should match it only to equipment specified for 15V operation, since this is not an adjustable-output unit.
Is the MPM-65-15 intended for outdoor installations?
The provided specs list an operating temperature range of -30°C to +80°C, which covers a wide thermal span. However, no IP rating is given, so the supplied data does not establish outdoor or wet-location suitability.
How does the MPM-65-15 compare with other 15V models in the MPM series?
The listed 15V siblings are MPM-05-15 at 5W and 0.33A, MPM-10-15 at 10W and 0.67A, MPM-15-15 at 15W and 1A, MPM-20-15 at 21W and 1.4A, MPM-30-15 and MPM-30-15ST at 30W and 2A, MPM-45-15 and MPM-45-15ST at 45W and 3A, MPM-65-15ST at 65W and 4.33A, and MPM-90-15 and MPM-90-15ST at 85.05W and 5.67A. This model is the 65W, 4.33A option in that 15V range.
