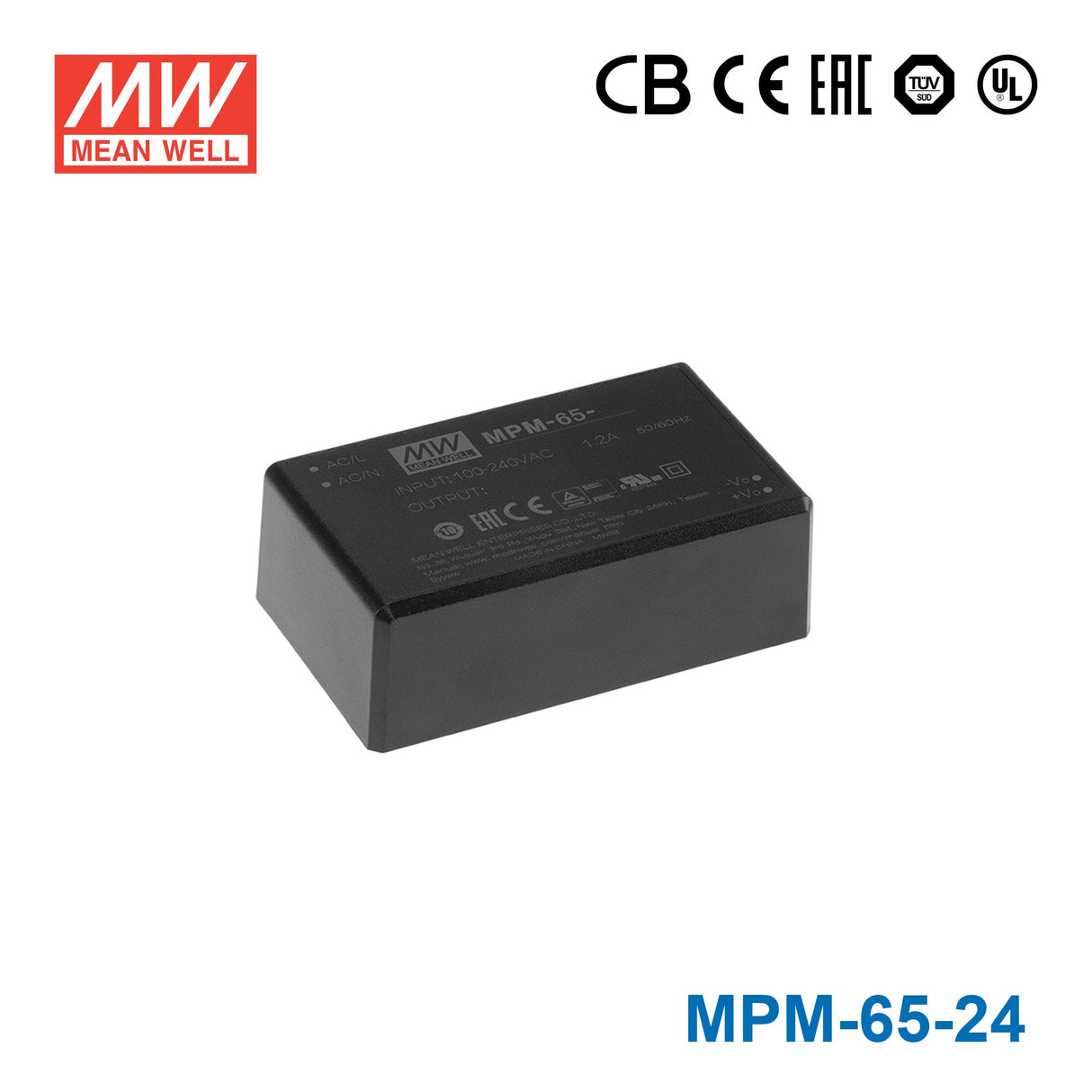

Mean Well MPM-65-24 Power Supply 65W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-65-24 Power Supply 65W 24V
3.43"x2.05" compact size
PCB chassis or screw terminal mounting version
Touch current<80 μA/264VAC
Key Features
- ✓3.43"x2.05" compact sizePCB chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the MPM-65-24 for 24V PLC, relay, or sensor systems?
Yes, for 24V DC automation hardware that needs a constant-voltage supply and draws no more than 65W or 2.71A. The 80-264VAC input range also suits equipment deployed across different AC mains conditions.
Is the MPM-65-24 suitable for 24V industrial communication or control equipment?
It is appropriate for 24V control or communication equipment when the total load remains within 2.71A and 65W. Because it is a constant-voltage model, it should be matched only to devices specified for fixed 24V input.
Can this model power 24V embedded or automation devices in space-limited equipment?
It can be a fit for compact 24V equipment that stays within the rated 65W output. The encapsulated design and 87.0 × 52.0 × 29.5 mm dimensions help where internal mounting space is constrained.
Is the MPM-65-24 suitable for outdoor or unprotected areas?
The operating temperature rating is -30°C to +80°C, so the unit is specified for a wide temperature range. No IP rating is provided in the specs here, so outdoor or unprotected-environment suitability is not confirmed by this product data.
How does the MPM-65-24 compare with other 24V MPM supplies?
The listed 24V siblings are MPM-05-24 at 5.5W and 0.23A, MPM-10-24 at 10W and 0.42A, MPM-15-24 at 15.1W and 0.63A, MPM-20-24 at 21.6W and 0.9A, MPM-30-24 and MPM-30-24ST at 31.2W and 1.3A, MPM-45-24 and MPM-45-24ST at 45.1W and 1.88A, MPM-65-24ST at 65W and 2.71A, and MPM-90-24 and MPM-90-24ST at 90W and 3.75A. This model is the 65W, 2.71A option in that 24V sequence.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-65 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-65-5ST Power Supply 65W 5V | 50W | 5V | 10A | Indoor | $30.30 | View |
| Mean Well MPM-65-5 Power Supply 65W 5V | 50W | 5V | 10A | Indoor | $28.20 | View |
| Mean Well MPM-65-48ST Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $30.30 | View |
| Mean Well MPM-65-48 Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $28.20 | View |
| Mean Well MPM-65-24ST Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $30.23 | View |
| Mean Well MPM-65-15ST Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $30.30 | View |
| Mean Well MPM-65-15 Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $28.20 | View |
| Mean Well MPM-65-12ST Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $30.30 | View |
| Mean Well MPM-65-12 Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $28.20 | View |
