Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

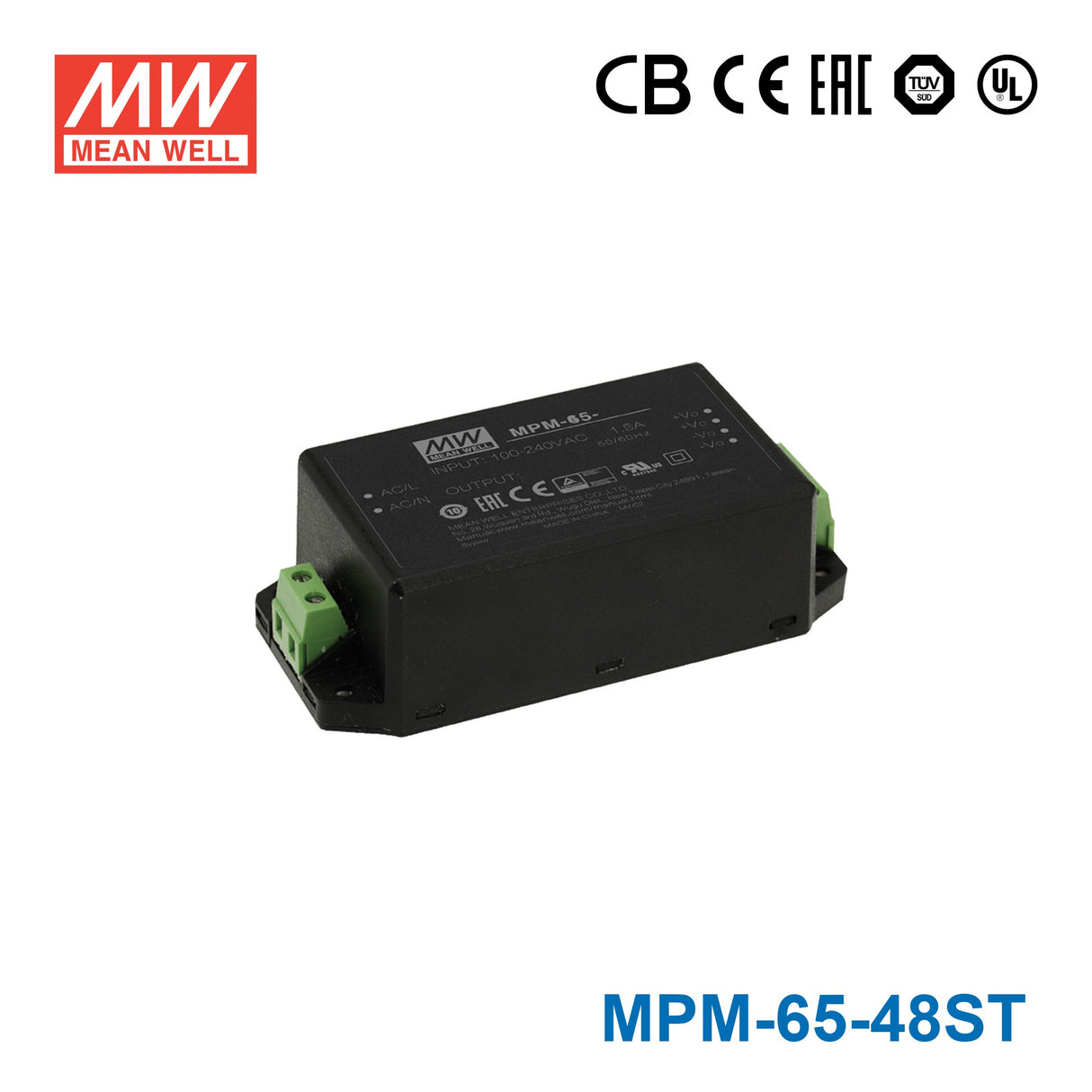

Mean Well MPM-65-48ST Power Supply 65W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-65-48ST Power Supply 65W 48V
3.43"x2.05" compact size
PCB chassis or screw terminal mounting version
Touch current<80 μA/264VAC
Key Features
- ✓3.43"x2.05" compact sizePCB chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65.3 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
::specification::
Frequently Asked Questions
Can I use the MPM-65-48ST in a 48V automation or control cabinet?
Yes, if the 48V DC load stays within 1.36A and 65.3W. It is a constant-voltage 48V supply, which aligns with automation and control equipment designed for regulated 48V input.
Is the MPM-65-48ST suitable for 48V communications or embedded hardware?
It can be used with 48V communications or embedded hardware that requires no more than 1.36A. The wide 80-264VAC input range also supports deployments where the available AC source may vary.
Would the MPM-65-48ST work for a compact 48V industrial subsystem?
It is built in a 109.0 x 52.0 x 33.5 mm package and provides 48V constant-voltage output up to 65.3W. That makes it relevant for compact industrial subsystems that need 48V DC and fit within the 1.36A output rating.
What are the 65-series MPM choices if I need a different output than 48V?
Within the 65-series, options include 5V at 10A on the MPM-65-5 and MPM-65-5ST with 50W, 12V at 5.42A on the MPM-65-12 and MPM-65-12ST with 65W, 15V at 4.33A on the MPM-65-15 and MPM-65-15ST with 65W, 24V at 2.71A on the MPM-65-24 and MPM-65-24ST with 65W, and 48V at 1.36A on the MPM-65-48 and MPM-65-48ST with 65.3W. The ST version keeps the same 48V and 1.36A electrical rating as the non-ST model.
Is the MPM-65-48ST rated for outdoor environments?
The listed operating temperature range is -30 degrees C to +80 degrees C, which supports use across a wide temperature span. However, no IP rating appears in the provided specifications, so the product data does not confirm outdoor exposure or ingress protection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-65 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-65-5ST Power Supply 65W 5V | 50W | 5V | 10A | Indoor | $30.30 | View |
| Mean Well MPM-65-5 Power Supply 65W 5V | 50W | 5V | 10A | Indoor | $28.20 | View |
| Mean Well MPM-65-48 Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $28.20 | View |
| Mean Well MPM-65-24ST Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $30.23 | View |
| Mean Well MPM-65-24 Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $28.20 | View |
| Mean Well MPM-65-15ST Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $30.30 | View |
| Mean Well MPM-65-15 Power Supply 65W 15V | 65W | 15V | 4.33A | Indoor | $28.20 | View |
| Mean Well MPM-65-12ST Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $30.30 | View |
| Mean Well MPM-65-12 Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $28.20 | View |
