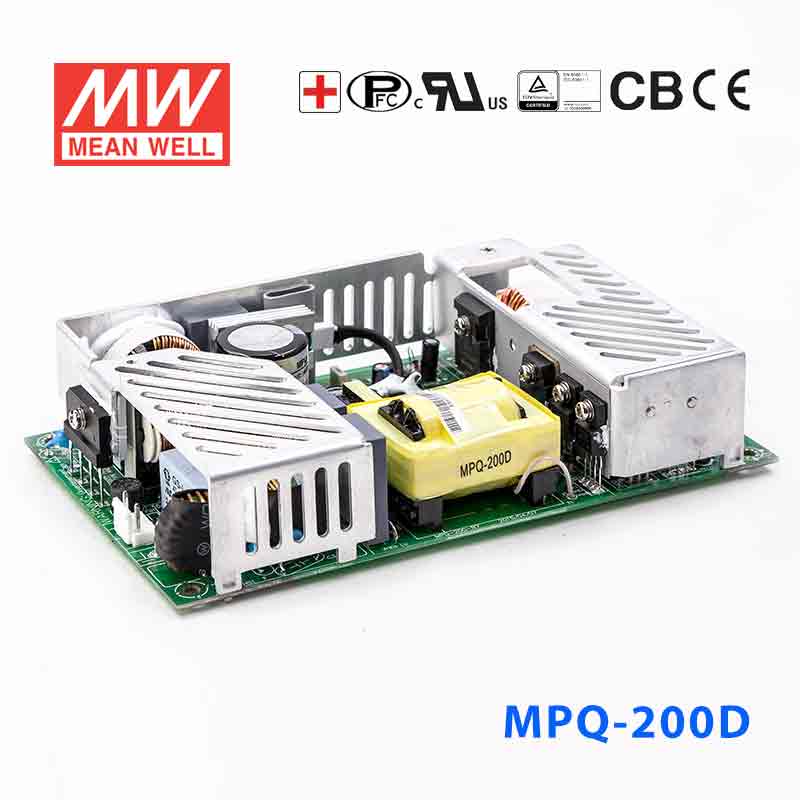

Mean Well MPQ-200D Power Supply 200W 5V 24V 12V -12V
<150 μA/264VAC
Key Features
- ✓Universal AC input/Full range
- ✓Low leakage current < 150μA
- ✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection for 200W
- ✓Medical safety approved(2 x MOPP between primary to secondary)
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPQ Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~264V
-
No of Output4
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can I use the MPQ-200D in a medical or laboratory control system that needs several DC rails?
It can fit medical or laboratory equipment that needs a 5V main output with additional 24V, 12V, and -12V rails in the same power supply family. The listed features include medical safety approval and extremely low leakage current below 150 µA. Its 200W rating and 12A output current on the 5V rail suit low-voltage control electronics rather than higher-voltage single-rail loads.
Is the MPQ-200D suitable for embedded or industrial control electronics that run on 5V logic power?
Yes, it is aimed at constant-voltage applications where the main load needs 5V DC. With 12A available on the 5V output and 200W total power, it fits 5V embedded controllers, industrial logic boards, and similar low-voltage electronics when the system also benefits from the listed 24V, 12V, and -12V outputs. The wide 90-264VAC input also helps in equipment sold into different AC regions.
Can the MPQ-200D power automation equipment that needs both positive and negative auxiliary rails?
It can be a fit for automation or instrumentation equipment that uses a 5V main rail and also needs 12V and -12V support rails. That makes it more relevant to mixed-voltage control assemblies than to simple single-output loads. Buyers should match their equipment to the listed 5V output, 12A current, and 200W total power.
How does the MPQ-200D compare with other MPQ-200 models?
Within the listed MPQ-200 group, MPQ-200B is 200W with 5V and 12A, MPQ-200C is 200W with 5V and 12A, MPQ-200D is 200W with 5V and 12A, and MPQ-200F is 200W with 5V and 15A. The main factual difference shown here is that MPQ-200F provides 15A on the 5V output while the B, C, and D versions are listed at 12A. All are part of the same 200W series family.
Is the MPQ-200D suitable for outdoor or harsh-environment use?
No IP rating is listed in the provided specs, so this model should not be treated as an outdoor-exposed power supply based on the available data. Its stated operating temperature range is -20°C to +70°C, which supports a wide controlled-environment range. For dusty, wet, or washdown conditions, buyers should look for a model with an explicit ingress-protection rating.
