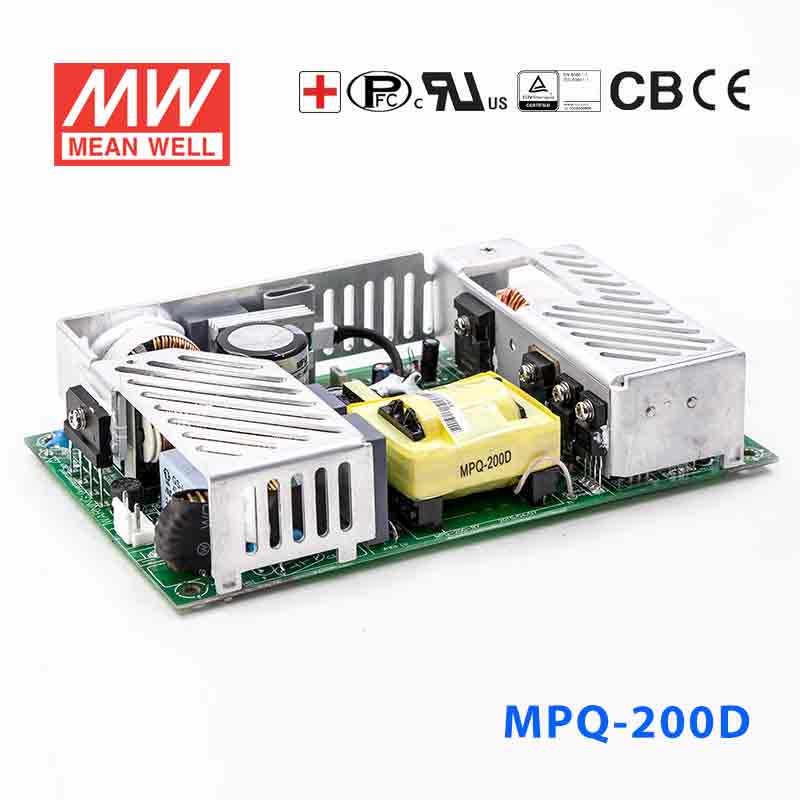

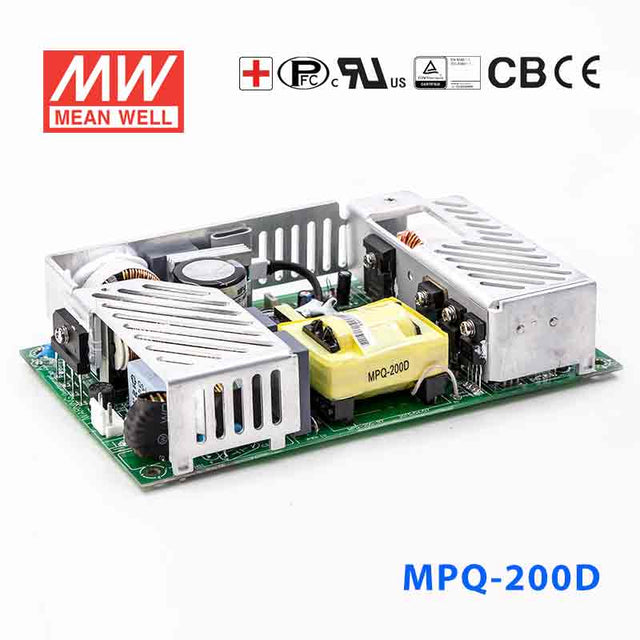

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well MPQ-200B Power Supply 200W 5V 12V -5V -12V 12A
Overview
MPQ-200B is the model of this series: typical efficiency 78%.
Features
- Universal AC input / Full range
- Low leakage current <150μA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Free air convection for 140W and forced air convection for 200W
- Medical safety approved (2 x MOPP between primary to secondary)(Note.8)
- With power good and fail signal output
- Built-in remote ON-OFF control
- Built-in remote sense function
- Fixed switching frequency at 100KHz
- 3 years warranty
Specifications
AC INPUT
- VOLTAGE
- 90~264 VAC, 47~63Hz / 127~370VDC.
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- AC INPUT CURRENT (Typ.)
- Maximum input current 3.5A at 115VAC, 60Hz or 1.6A at 230VAC, 60Hz with 100% output load.
- INRUSH CURRENT (Typ.)
- Inrush current is less than 25A at 115VAC or less than 40A at 230VAC under cold start conditions. Limiting provided by internal thermistors.
- SETUP, RISE TIME
- 1000ms, 20ms / 230VAC at full load 3000ms, 20ms / 115VAC at full load
- HOLD-UP TIME (Typ.)
- 16ms / 230VAC at full load 16ms / 115VAC at full load
- LEAKAGE CURRENTNote.7
- Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC
OUTPUT
- OUTPUT VOLTAGE CH1
- 5V
- OUTPUT VOLTAGE CH2
- 12V
- OUTPUT VOLTAGE CH3
- -5V
- OUTPUT VOLTAGE CH4
- -12V
- RATED CURRENT CH1
- 15A
- RATED CURRENT CH2
- 7A
- RATED CURRENT CH3
- 2A
- RATED CURRENT CH4
- 2A
- MINIMUM LOAD CH1
- 3A
- MINIMUM LOAD CH2
- 0.7A
- MINIMUM LOAD CH3
- 0A
- MINIMUM LOAD CH4
- 0A
- CONVECTION (max.) CH1
- 12A
- CONVECTION (max.) CH2
- 5.3A
- CONVECTION (max.) CH3
- 1A
- CONVECTION (max.) CH4
- 1A
- WITH FAN (25CFM) CH1
- 15A
- WITH FAN (25CFM) CH2
- 7A
- WITH FAN (25CFM) CH3
- 2A
- WITH FAN (25CFM) CH4
- 2A
- PEAK LOAD WITH 25CFM FAN CH1Note 4
- 18A
- PEAK LOAD WITH 25CFM FAN CH2Note 4
- 8.4A
- PEAK LOAD WITH 25CFM FAN CH3Note 4
- 2.4A
- PEAK LOAD WITH 25CFM FAN CH4Note 4
- 2.4A
- RIPPLE & NOISE (Max.) CH1Note 2
- 80mVp-p
- RIPPLE & NOISE (Max.) CH2Note 2
- 120mVp-p
- RIPPLE & NOISE (Max.) CH3Note 2
- 80mVp-p
- RIPPLE & NOISE (Max.) CH4Note 2
- 80mVp-p
- VOLTAGE TOLERANCE CH1Note 3
- ±2.0%
- VOLTAGE TOLERANCE CH2Note 3
- ±8.0%
- VOLTAGE TOLERANCE CH3Note 3
- ±5.0%
- VOLTAGE TOLERANCE CH4Note 3
- ±5.0%
- LINE REGULATION CH1
- ±0.5%
- LINE REGULATION CH2
- ±1.0%
- LINE REGULATION CH3
- ±0.5%
- LINE REGULATION CH4
- ±0.5%
- LOAD REGULATION CH1
- ±1.0%
- LOAD REGULATION CH2
- ±5.0%
- LOAD REGULATION CH3
- ±1.0%
- LOAD REGULATION CH4
- ±1.0%
- EFFICIENCY (typ.)
- 78%
DC OUTPUT
- ADJ. RANGE
- DC output voltage (or CH1 of multiple output models) can be adjusted between -5%~+10% rated output voltage by potential meter.
PROTECTION
- OVERLOAD
- Fully protected against short circuit and output overload. The hiccup type protection will be activated at 120~160% rated load and recovers automatically after fault condition is removed.
- OVER VOLTAGE
- Provided on output channel 1 only at 115%~135% rated output voltage. Output will be shut down when this protection is activated.
- OVER TEMPERATURE
- When the temperature of TSW1 which detect on heat sink of power transistor reaches 95℃, This protection is activated. Then output will be shut down and recovers automatically after temperature goes down.
SIGNAL
- POWER GOOD / FAIL
- TTL logic high for power good and TTL low for power fail. When the output voltage reaches 90% of rated value, a +5V TTL signal will be sent out with a 10~500ms delay; At least 1ms before the output voltage goes below 90% of the rated value, the TTL signal will be turned off.
REMOTE CONTROL
- REMOTE CONTROL
- RC+/RC-:0 ~ 0.8V=power on; 4 ~ 10V=power off sink current<4~10mA
ENVIRONMENT
- WORKING TEMP.
- Whole series can operate from -20~70℃. Please refer to the derating curves.
- WORKING HUMIDITY
- 20~90% RH non-condensing.
- STORAGE TEMP., HUMIDITY
- -40~+85℃, 10~90% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ on all outputs at full load between 0~50℃ of ambient temperature.
- VIBRATION
- 2G of acceleration, vibrating frequency adjust from 10Hz ~500Hz within a 10-minute cycle. 6 testing cycles (60 minutes) each along X, Y, Z axes.
SAFETY
- SAFETY STANDARDS
- IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2 ANSI/AAMI ES60601-1:2005+A2,CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- 4000VAC between input and output 2000VAC between input and F.G. 1500VAC between output and F.G.
- ISOLATION RESISTANCE
- >100M Ohms for I/P-O/P, I/P-FG, O/P-FG by using 500VDC test voltage.
EMC
- EMI COMPLIANCE
- BS EN/EN55011, Class B ; EAC TP TC 020 ; BS EN/EN61000-3-2 ; BS EN/EN61000-3-3
- EMS COMPLIANCE
- BS EN/EN61000-4-2, Level 3, 8KV ; BS EN/EN61000-4-2, Level 2, 4KV ; BS EN/EN61000-4-3, Level 2, 3V/m ; Level 3, 10V/m ; BS EN/EN61000-4-4, Level 2, 1KV/5KHz ; Level 3, 2KV/5KHz ; BS EN/EN61000-4-5, Level 4, 2KV/Line-Line ; 4KV/Line-Earth ; BS EN/EN61000-4-6, Level 2, 3Vrms/m ; Level 3, 10Vrms/m ; BS EN/EN61000-4-8, Level 2, 3A/m ; Level 3, 10A/m ; BS EN/EN61000-4-11, Compliance ; BS EN/ENV50204, Level 2, 3V/m, 900MHz ; Level 3, 10A/m, 900MHz ; EAC TP TC 020
OTHERS
- MTBF
- 1679.6K hrs min. Telcordia SR-332 (Bellcore) ; 213.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION (L*W*H)
- 177.8x107.2x35.5mm or 7"x4.22"x1.4"
- PACKING
- 0.66Kg; 24pcs/16.8Kg/1.17CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 7. Touch current was measured from primary input to DC output.
- 8. Suitable for BF application with appropriate system consideration.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates7
Test reports1
Catalogues1
FAQ
Can I use the MPQ-200B for equipment that needs several DC rails from one power supply?
This model is a 200W power supply with 5V, 12V, -5V, and -12V outputs. That makes it relevant for systems that require multiple DC rails from one supply rather than a single-output design. The main output is 5V at 15A with 25CFM forced air (12A convection), and the overall rating is 200W with the fan or 140W convection.
Is the MPQ-200B suitable for industrial or embedded systems that use both positive and negative voltage rails?
It can suit embedded, industrial, or control equipment when the design calls for the 5V, 12V, -5V, and -12V rail combination named for this model. That is different from a standard single-output supply and is useful where multiple board-level rails are needed from one unit. Buyers should confirm their equipment requires the B version rail set specifically.
Would the MPQ-200B fit medical or electronic test equipment that needs low leakage current?
The unit is medical safety approved and specifies extremely low leakage current below 150 uA. Those characteristics can matter for medical and electronic equipment designs with tighter leakage requirements. The supply is rated for 200W and uses a wide 90-264VAC input range.
Can this power supply handle broader AC input conditions for OEM equipment?
The specified input range is 90-264VAC, which supports a broad AC input window for global equipment designs. For OEMs building equipment sold into different mains environments, that range reduces the need for a narrow-input supply. The output side remains a constant voltage multi-output design rated for 200W.
Is the MPQ-200B intended for outdoor or wide-temperature use?
The published operating temperature range is -20C to +70C, subject to the derating curves, so the product data supports review for indoor equipment across that span. No IP rating is listed in the provided specs, so the data does not establish outdoor, washdown, or weather-exposed use. The environmental guidance here is based on temperature only.
How does the MPQ-200B compare with the other MPQ siblings listed?
The MPQ-200B, C, D and F share the same 5V main output of 15A with 25CFM forced air (12A convection) and 200W with the fan. The B version adds 12V 7A, -5V 2A and -12V 2A; the C has 15V/-5V/-15V, the D 24V/12V/-12V and the F 24V/15V/-15V. Typical efficiency is 78% for the B, the same as the C, versus 79% for the D and 81% for the F.
