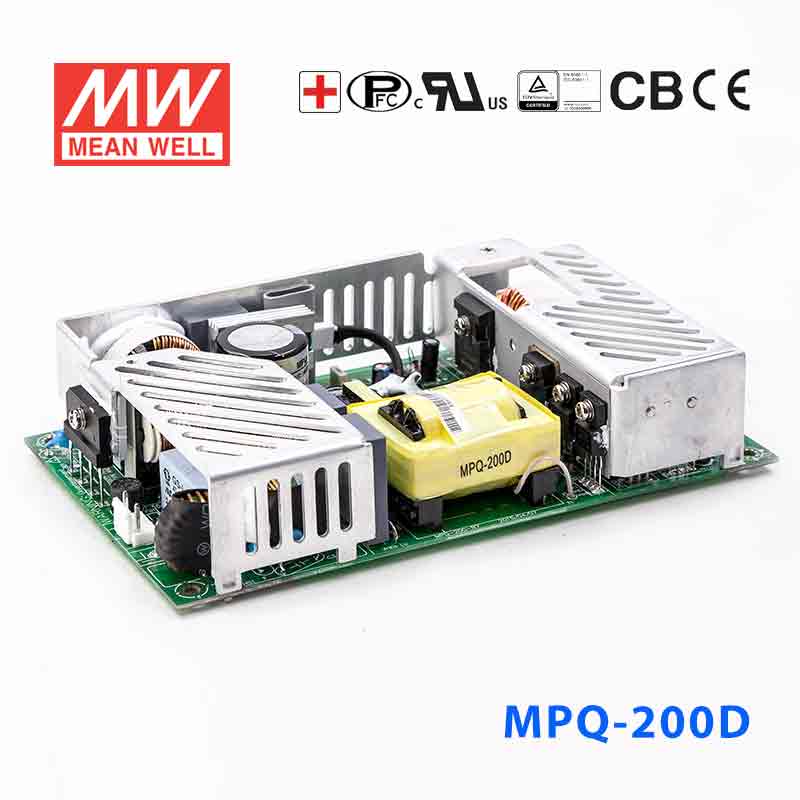

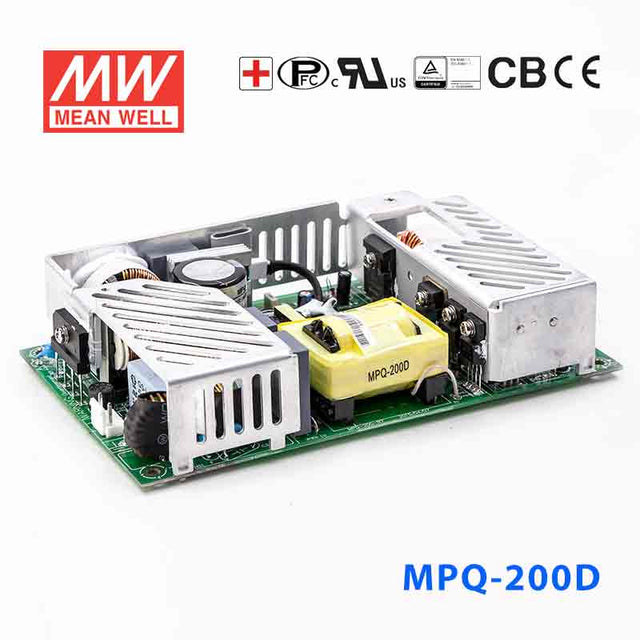

Mean Well MPQ-200D Power Supply 200W 5V 24V 12V -12V 12A
Overview
MPQ-200D is the model of this series: typical efficiency 79%.
Features
- Universal AC input / Full range
- Low leakage current <150μA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Free air convection for 140W and forced air convection for 200W
- Medical safety approved (2 x MOPP between primary to secondary)(Note.8)
- With power good and fail signal output
- Built-in remote ON-OFF control
- Built-in remote sense function
- Fixed switching frequency at 100KHz
- 3 years warranty
Specifications
AC INPUT
- VOLTAGE
- 90~264 VAC, 47~63Hz / 127~370VDC.
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- AC INPUT CURRENT (Typ.)
- Maximum input current 3.5A at 115VAC, 60Hz or 1.6A at 230VAC, 60Hz with 100% output load.
- INRUSH CURRENT (Typ.)
- Inrush current is less than 25A at 115VAC or less than 40A at 230VAC under cold start conditions. Limiting provided by internal thermistors.
- SETUP, RISE TIME
- 1000ms, 20ms / 230VAC at full load 3000ms, 20ms / 115VAC at full load
- HOLD-UP TIME (Typ.)
- 16ms / 230VAC at full load 16ms / 115VAC at full load
- LEAKAGE CURRENTNote.7
- Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC
OUTPUT
- OUTPUT VOLTAGE CH1
- 5V
- OUTPUT VOLTAGE CH2
- 24V
- OUTPUT VOLTAGE CH3
- 12V
- OUTPUT VOLTAGE CH4
- -12V
- RATED CURRENT CH1
- 15A
- RATED CURRENT CH2
- 3A
- RATED CURRENT CH3
- 2A
- RATED CURRENT CH4
- 2A
- MINIMUM LOAD CH1
- 3A
- MINIMUM LOAD CH2
- 0.3A
- MINIMUM LOAD CH3
- 0A
- MINIMUM LOAD CH4
- 0A
- CONVECTION (max.) CH1
- 12A
- CONVECTION (max.) CH2
- 2.3A
- CONVECTION (max.) CH3
- 1A
- CONVECTION (max.) CH4
- 1A
- WITH FAN (25CFM) CH1
- 15A
- WITH FAN (25CFM) CH2
- 3A
- WITH FAN (25CFM) CH3
- 2A
- WITH FAN (25CFM) CH4
- 2A
- PEAK LOAD WITH 25CFM FAN CH1Note 4
- 18A
- PEAK LOAD WITH 25CFM FAN CH2Note 4
- 3.6A
- PEAK LOAD WITH 25CFM FAN CH3Note 4
- 2.4A
- PEAK LOAD WITH 25CFM FAN CH4Note 4
- 2.4A
- RIPPLE & NOISE (Max.) CH1Note 2
- 80mVp-p
- RIPPLE & NOISE (Max.) CH2Note 2
- 180mVp-p
- RIPPLE & NOISE (Max.) CH3Note 2
- 80mVp-p
- RIPPLE & NOISE (Max.) CH4Note 2
- 80mVp-p
- VOLTAGE TOLERANCE CH1Note 3
- ±2.0%
- VOLTAGE TOLERANCE CH2Note 3
- ±8.0%
- VOLTAGE TOLERANCE CH3Note 3
- ±5.0%
- VOLTAGE TOLERANCE CH4Note 3
- ±5.0%
- LINE REGULATION CH1
- ±0.5%
- LINE REGULATION CH2
- ±1.0%
- LINE REGULATION CH3
- ±0.5%
- LINE REGULATION CH4
- ±0.5%
- LOAD REGULATION CH1
- ±1.0%
- LOAD REGULATION CH2
- ±5.0%
- LOAD REGULATION CH3
- ±1.0%
- LOAD REGULATION CH4
- ±1.0%
- EFFICIENCY (typ.)
- 79%
DC OUTPUT
- ADJ. RANGE
- DC output voltage (or CH1 of multiple output models) can be adjusted between -5%~+10% rated output voltage by potential meter.
PROTECTION
- OVERLOAD
- Fully protected against short circuit and output overload. The hiccup type protection will be activated at 120~160% rated load and recovers automatically after fault condition is removed.
- OVER VOLTAGE
- Provided on output channel 1 only at 115%~135% rated output voltage. Output will be shut down when this protection is activated.
- OVER TEMPERATURE
- When the temperature of TSW1 which detect on heat sink of power transistor reaches 95℃, This protection is activated. Then output will be shut down and recovers automatically after temperature goes down.
SIGNAL
- POWER GOOD / FAIL
- TTL logic high for power good and TTL low for power fail. When the output voltage reaches 90% of rated value, a +5V TTL signal will be sent out with a 10~500ms delay; At least 1ms before the output voltage goes below 90% of the rated value, the TTL signal will be turned off.
REMOTE CONTROL
- REMOTE CONTROL
- RC+/RC-:0 ~ 0.8V=power on; 4 ~ 10V=power off sink current<4~10mA
ENVIRONMENT
- WORKING TEMP.
- Whole series can operate from -20~70℃. Please refer to the derating curves.
- WORKING HUMIDITY
- 20~90% RH non-condensing.
- STORAGE TEMP., HUMIDITY
- -40~+85℃, 10~90% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ on all outputs at full load between 0~50℃ of ambient temperature.
- VIBRATION
- 2G of acceleration, vibrating frequency adjust from 10Hz ~500Hz within a 10-minute cycle. 6 testing cycles (60 minutes) each along X, Y, Z axes.
SAFETY
- SAFETY STANDARDS
- IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2 ANSI/AAMI ES60601-1:2005+A2,CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- 4000VAC between input and output 2000VAC between input and F.G. 1500VAC between output and F.G.
- ISOLATION RESISTANCE
- >100M Ohms for I/P-O/P, I/P-FG, O/P-FG by using 500VDC test voltage.
EMC
- EMI COMPLIANCE
- BS EN/EN55011, Class B ; EAC TP TC 020 ; BS EN/EN61000-3-2 ; BS EN/EN61000-3-3
- EMS COMPLIANCE
- BS EN/EN61000-4-2, Level 3, 8KV ; BS EN/EN61000-4-2, Level 2, 4KV ; BS EN/EN61000-4-3, Level 2, 3V/m ; Level 3, 10V/m ; BS EN/EN61000-4-4, Level 2, 1KV/5KHz ; Level 3, 2KV/5KHz ; BS EN/EN61000-4-5, Level 4, 2KV/Line-Line ; 4KV/Line-Earth ; BS EN/EN61000-4-6, Level 2, 3Vrms/m ; Level 3, 10Vrms/m ; BS EN/EN61000-4-8, Level 2, 3A/m ; Level 3, 10A/m ; BS EN/EN61000-4-11, Compliance ; BS EN/ENV50204, Level 2, 3V/m, 900MHz ; Level 3, 10A/m, 900MHz ; EAC TP TC 020
OTHERS
- MTBF
- 1679.6K hrs min. Telcordia SR-332 (Bellcore) ; 213.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION (L*W*H)
- 177.8x107.2x35.5mm or 7"x4.22"x1.4"
- PACKING
- 0.66Kg; 24pcs/16.8Kg/1.17CUFT
- UL
- UL60950-1
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 7. Touch current was measured from primary input to DC output.
- 8. Suitable for BF application with appropriate system consideration.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates7
Test reports1
Catalogues1
FAQ
Can I use the MPQ-200D in a medical or laboratory control system that needs several DC rails?
It can fit medical or laboratory equipment that needs a 5V main output with additional 24V, 12V, and -12V rails in the same power supply. The listed features include medical safety approval and earth leakage current below 150 µA. It delivers 200W and 15A on the 5V rail with 25CFM forced air (140W and 12A by convection), suiting low-voltage control electronics rather than higher-voltage single-rail loads.
Is the MPQ-200D suitable for embedded or industrial control electronics that run on 5V logic power?
Yes, the main output is 5V DC. With 15A on the 5V output and 200W total with 25CFM forced air (12A and 140W with convection cooling), it fits 5V embedded controllers, industrial logic boards, and similar low-voltage electronics when the system also benefits from the listed 24V, 12V, and -12V outputs. The wide 90-264VAC input also helps in equipment sold into different AC regions.
Can the MPQ-200D power automation equipment that needs both positive and negative auxiliary rails?
It can be a fit for automation or instrumentation equipment that uses a 5V main rail and also needs 12V and -12V support rails. That makes it more relevant to mixed-voltage control assemblies than to simple single-output loads. Buyers should match their equipment to the 5V output (15A with 25CFM fan, 12A convection) and the 200W fan-cooled / 140W convection rating.
How does the MPQ-200D compare with other MPQ-200 models?
MPQ-200B, C, D and F all provide 5V at 15A with 25CFM forced air (12A convection) and 200W with the fan (140W convection). They differ in the auxiliary rails: B has 12V 7A, -5V 2A and -12V 2A; C has 15V 5A, -5V 2A and -15V 2A; D has 24V 3A, 12V 2A and -12V 2A; F has 24V 2.7A, 15V 2A and -15V 2A. Typical efficiency is 78% for B and C, 79% for D and 81% for F.
Is the MPQ-200D suitable for outdoor or harsh-environment use?
No IP rating is listed in the provided specs, so this model should not be treated as an outdoor-exposed power supply based on the available data. Its stated operating temperature range is -20°C to +70°C, subject to the derating curves, for controlled-environment use. For dusty, wet, or washdown conditions, buyers should look for a model with an explicit ingress-protection rating.
