Mean Well MPQ-200C Power Supply 200W 5V 15V -5V -15V

extremely low leakage current
$95.11 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input/Full range
Low leakage current < 150μA
Protections: Short circuit/Overload/Over voltage/Over temperature

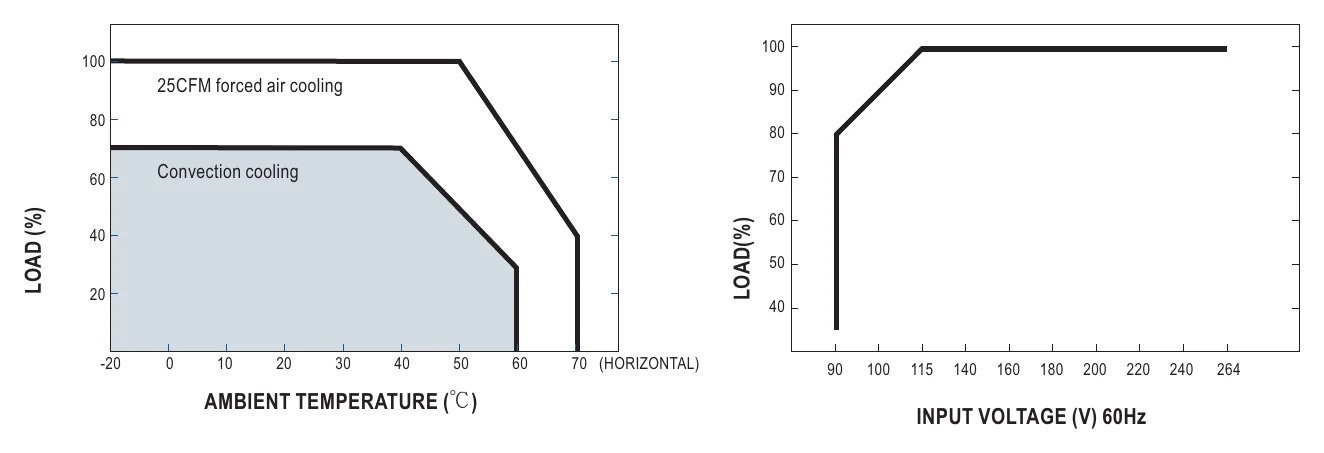

Free air convection for 140W and forced air convection for 200W
Medical safety approved(2 x MOPP between primary to secondary)
With power good and fail signal output
Built-in remote ON-OFF control
Built-in remote sense function
Fixed switching frequency at 100KHz
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 40A
Leakage current

<150 μA/264VAC

Overload protection 120 ~ 160% rated output power
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 1000ms, 20ms, 16ms
Withstand voltage I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
Working temperature -20~+70°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

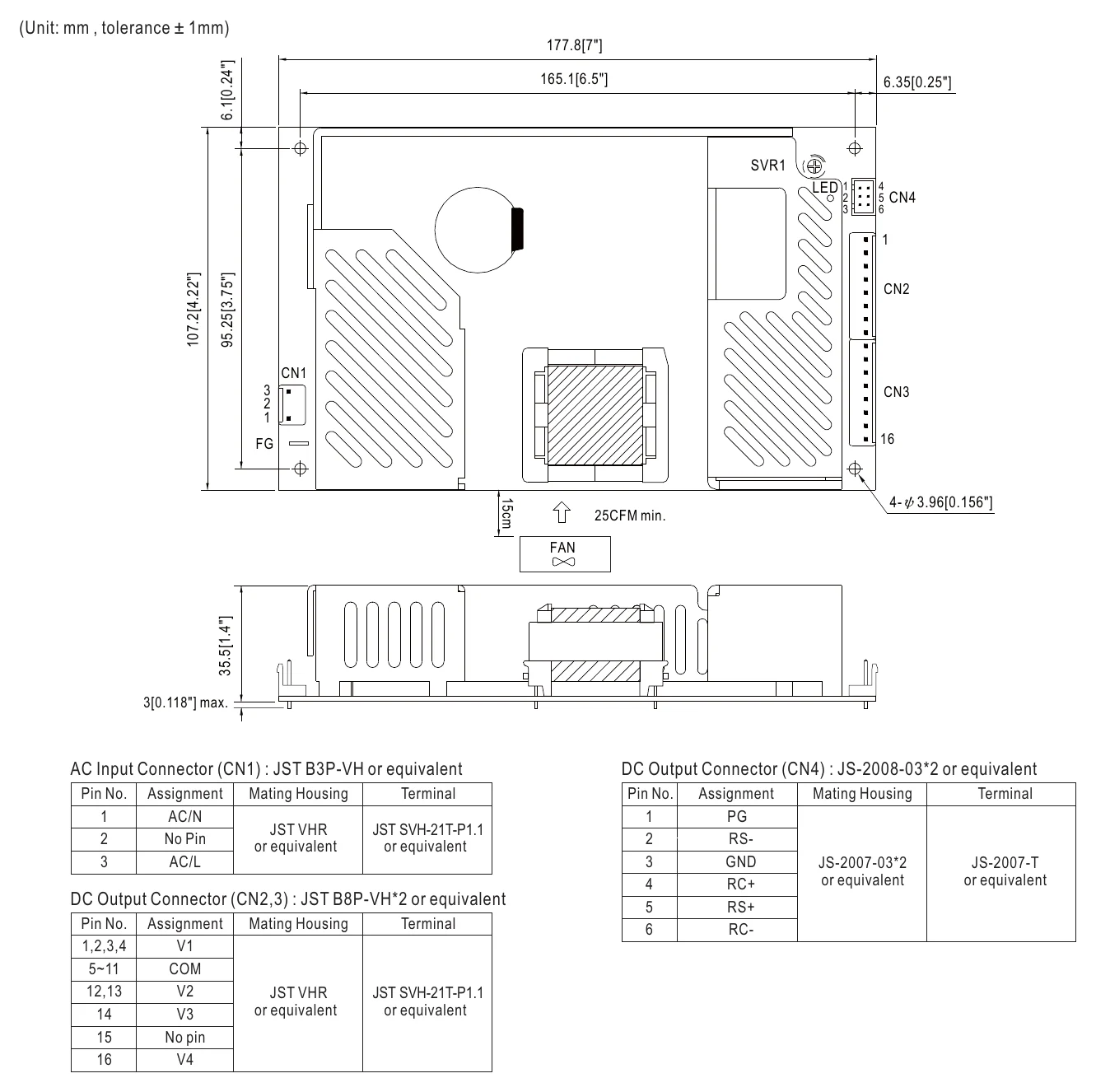

Connection Input: JST B3P-VH, Output: JST B8P-VH
Dimension (LxWxH) 177.8x107.2x35.5
Packing 24pcs / 16.8kg

Specifications

  • Brand
    Mean Well
  • Series
    MPQ Series
  • Power Rating
    200 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    12 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    4
  • Dimming Control
    None
  • Standards Met
    CB,CE,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    7 in
  • Width
    4.22 in
  • Height
    1.4 in
  • Weight
    1.46 lb

File Downloads

::specification::
