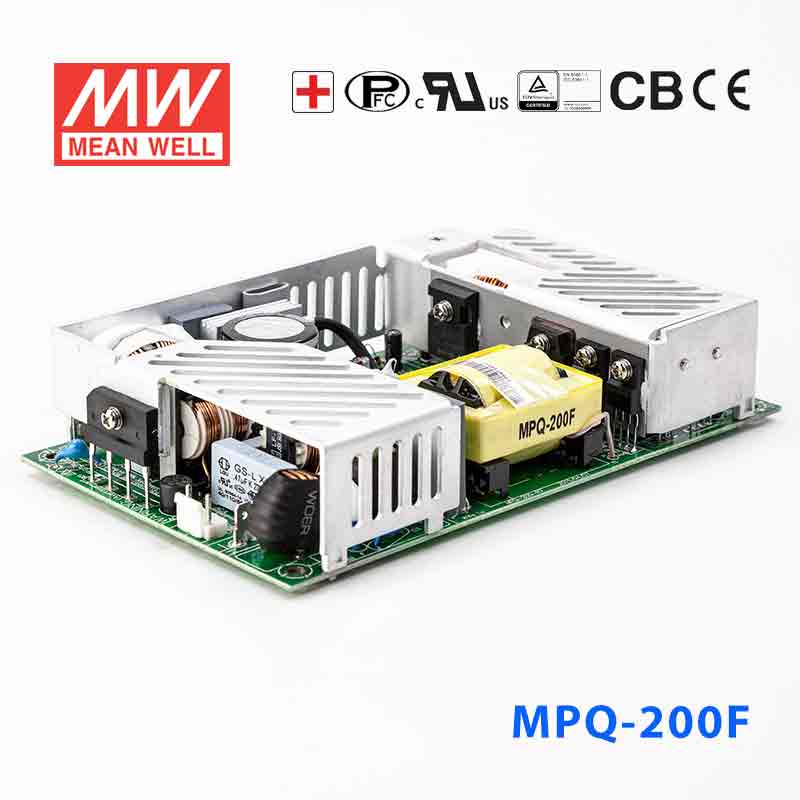

Mean Well MPQ-200F Power Supply 200W 5V 24V 15V -15V
<150 μA/264VAC
Key Features
- ✓Universal AC input/Full range
- ✓Low leakage current < 150μA
- ✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection for 200W
- ✓Medical safety approved(2 x MOPP between primary to secondary)
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPQ Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output4
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can I use the MPQ-200F for a 5V embedded system with higher current demand?
Yes, this model is better suited to heavier 5V loads because it is rated for 15A on the 5V output and 200W total power. That makes it a stronger fit than the 12A MPQ-200 variants when the main rail current is the deciding factor. The product name also indicates 24V, 15V, and -15V rails for systems that use several DC voltages.
Is the MPQ-200F a good fit for medical electronics that need low leakage current?
The listed features include medical safety approval and leakage current below 150 µA, so it aligns with equipment categories where those specs matter. It is intended for constant-voltage use and provides a 5V main output with 15A available. That combination suits low-voltage medical control or monitoring electronics more than high-voltage single-output equipment.
Can the MPQ-200F be used in industrial test or measurement equipment with mixed-voltage rails?
It can fit test, measurement, or control systems that need a 5V main rail plus the listed 24V, 15V, and -15V outputs. The 200W power level and 15A 5V output make it relevant for denser low-voltage electronics than lighter-duty 5V supplies. Its 90-264VAC input range also supports use across different AC mains ranges.
What is the main difference between the MPQ-200F and the other MPQ-200 siblings listed here?
The listed MPQ-200B, MPQ-200C, and MPQ-200D models are each 200W with 5V and 12A, while MPQ-200F is 200W with 5V and 15A. Based on the provided sibling data, the standout spec difference is the higher 5V output current on the F version. All of them sit in the same 200W MPQ family.
Can the MPQ-200F be used outdoors or in exposed environments?
The provided specs do not list an IP rating, so it should not be assumed suitable for direct outdoor exposure. The operating temperature range is -20°C to +70°C, which supports a broad temperature window in protected equipment conditions. If the installation environment involves water or dust exposure, a supply with a stated IP rating would be the safer choice.
