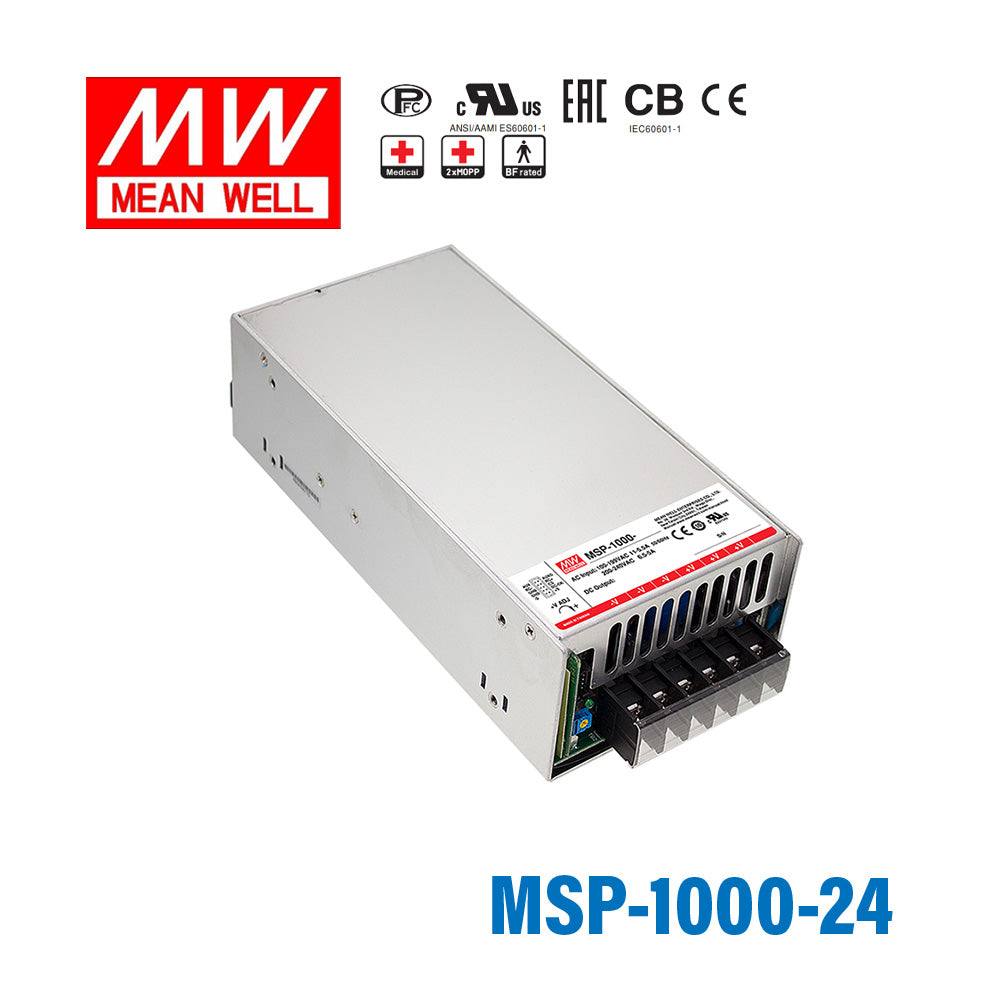

Mean Well MSP-1000-24 Power Supply 1008W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-1000-24 Power Supply 1008W 24V
The MSP-1000 is a 1000W Mean Well power converter (input range: 90~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4.5KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating1008 Watt
-
Output Voltage24 Volt
-
Rated Current42 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the MSP-1000-24 for a 24V industrial automation or control system?
Yes, this model is a constant voltage 24V supply rated for 42A and 1008W. That makes it suitable for larger 24V automation and control systems that need significantly more power than standard lower-wattage 24V supplies.
Is the MSP-1000-24 a fit for 24V sensors, actuators, and control devices on one DC bus?
It can support a 24V DC bus feeding multiple sensors, actuators, and control devices if the combined demand remains within 42A and 1008W. The 90-264VAC input range also allows use across a broad AC input range.
Can this model power a 24V embedded or edge-computing cabinet with supporting peripherals?
It can be used for a 24V embedded or edge cabinet when all connected 24V loads together stay within 42A and 1008W. Its constant voltage output is intended for equipment designed around a regulated 24V DC supply.
Would the MSP-1000-24 work for 24V medical or laboratory platforms with higher power demand?
It can be considered for 24V medical or laboratory platforms because it is medical safety approved and certified to CB, CE, EAC, and UL. From an electrical standpoint, the load needs to match the 24V output and remain within the 42A and 1008W limits.
Is the MSP-1000-24 suitable for outdoor environments or only indoor use?
The operating temperature range is -40°C to +70°C, so it is specified for wide temperature conditions. No IP rating appears in the provided specs, so weather exposure or outdoor enclosure suitability cannot be confirmed from this data alone.
How does the MSP-1000-24 compare with other 24V MSP models?
The listed 24V MSP models are MSP-100-24 at 108W and 4.5A, MSP-200-24 at 201.6W and 8.4A, MSP-300-24 at 336W and 14A, MSP-450-24 at 451.2W and 18.8A, MSP-600-24 at 648W and 27A, MSP-1000-24 at 1008W and 42A, and MSP-1600-24 at 1608W and 67A. The MSP-1000-24 is above the 600W class and below the 1600W class in the 24V lineup.
